07 - 42 RT60 Rough Terrain Crane
CHANGE OFFSET FROM 0° TO 20° OR 40° (SEE FIG. 07 – 45 AND FIG. 07 – 46):
a) Retract the boom and set up the outriggers;
b) Luff the boom down to 0° position;
c) Reeve the hoist rope to jib sheave over main boom sheave, and fix it onto jib head
hole;
d) Remove the pins and spring-loaded pins at point F from the pull bracket. Insert the
removed pins and spring-loadd pins at point G for the 20° position or point H for the
40° position;
e) Pay out the hoist rope and luff the boom up slowly till pin at point G or point H touches
pin A.

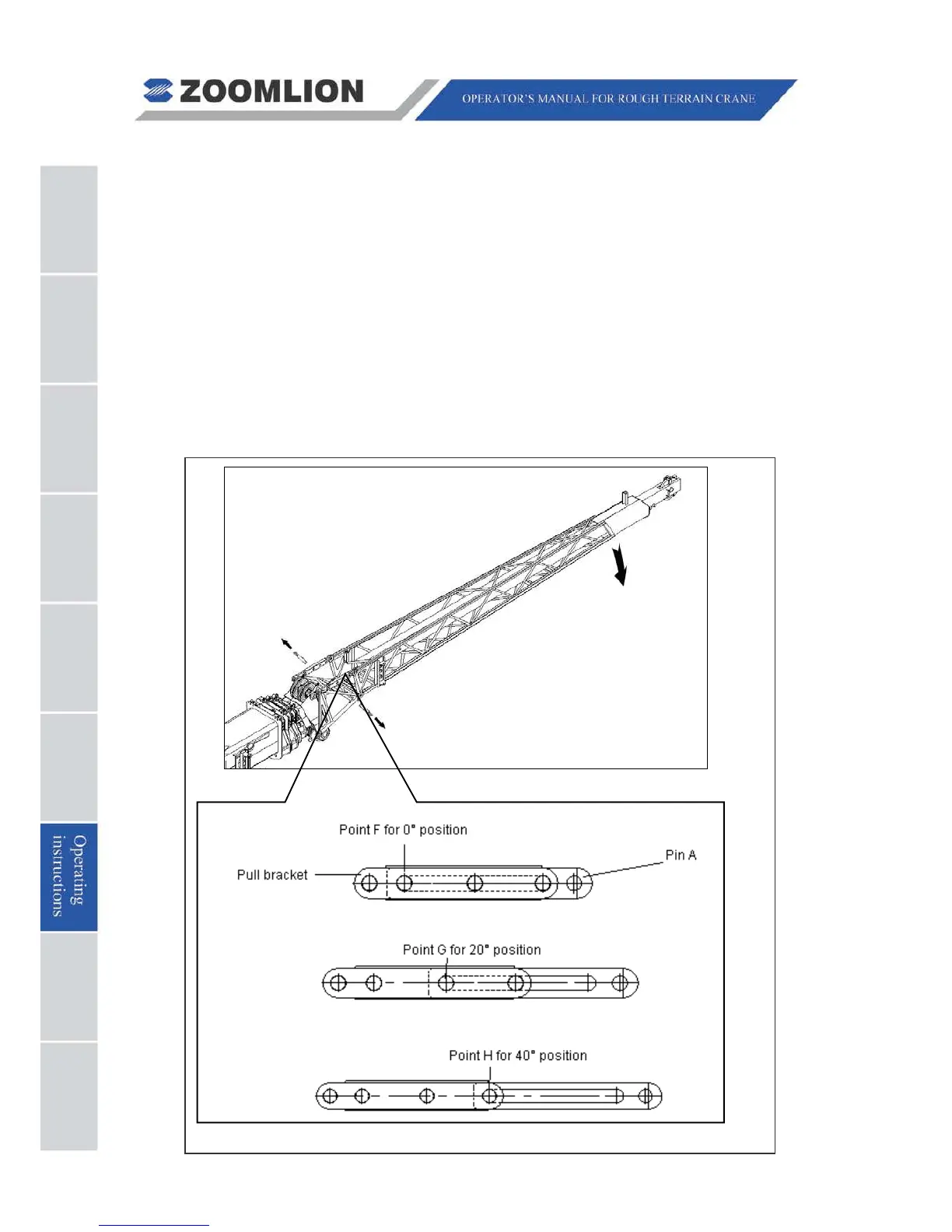

Fig. 07 – 45
