RT60 Rough Terrain Crane 06 - 3
1 2 3 4 5 6 7
8 9 10 11

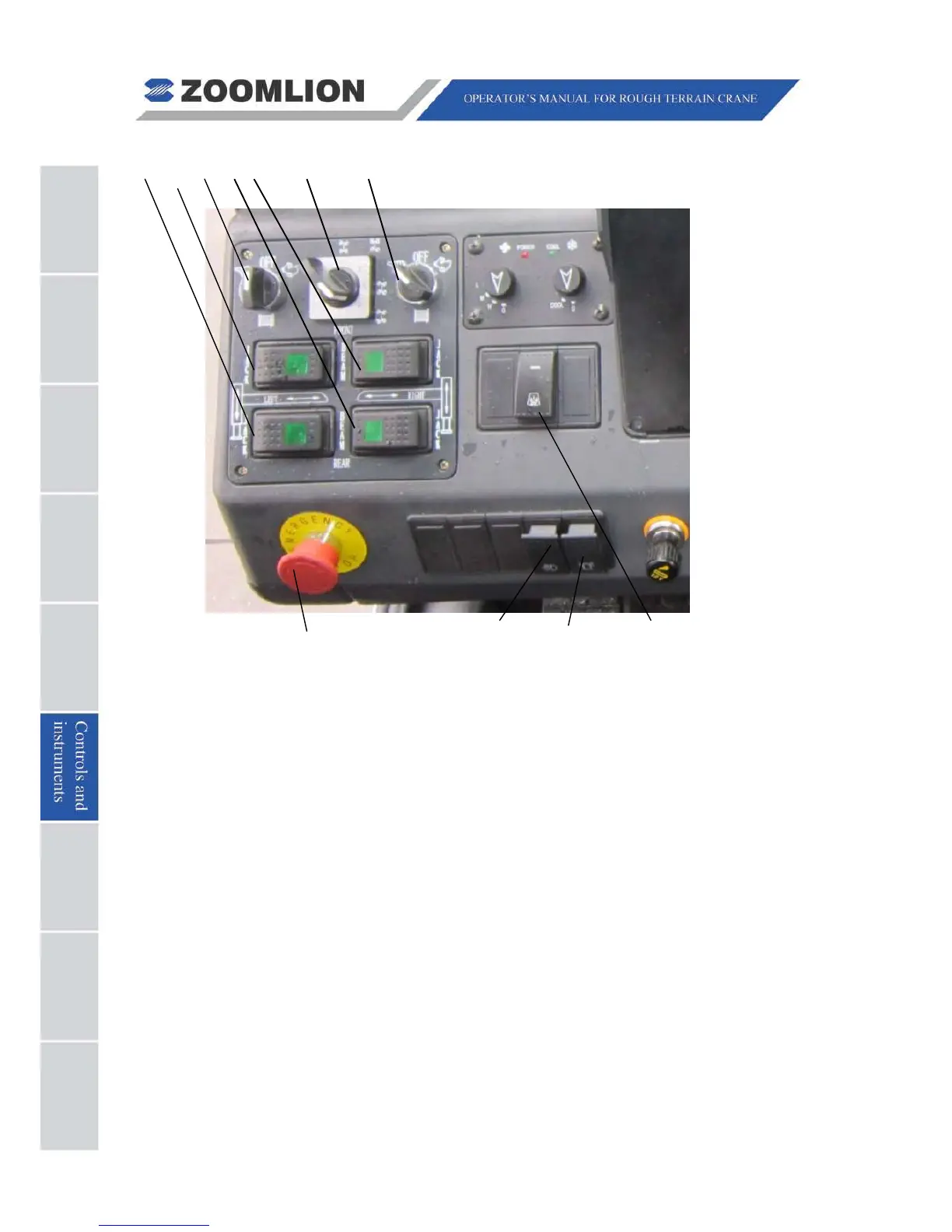

Figure 06 – 2 Left Dash
1. LEFT REAR OUTRIGGER SWITCH
Used to select outrigger cylinder (jack or beam)
to be extended / retracted with
OUTRIGGER EXTEND / RETRACT MASTER
SWITCH (21)
(See Figure 06 – 1).
2. LEFT FRONT OUTRIGGER SWITCH Used to select outrigger cylinder (jack or
beam) to be extended / retracted with OUTRIGGER EXTEND / RETRACT MASTER
SWITCH (21) (See Figure 06 – 1).
3. HIGH / LOW SPEED SELECT SWITCH FOR MAIN WINCH Sets the main winch
speed to OFF, LOW or HIGH.
4. RIGHT REAR OUTRIGGER SWITCH Used to select outrigger cylinder (jack or
beam) to be extended / retracted with OUTRIGGER EXTEND / RETRACT MASTER
SWITCH (21) (See Figure 06 – 1).
5. RIGHT FRONT OUTRIGGER SWITCH Used to select outrigger cylinder (jack or
beam) to be extended / retracted with OUTRIGGER EXTEND / RETRACT MASTER
SWITCH (21) (See Figure 06 – 1).
