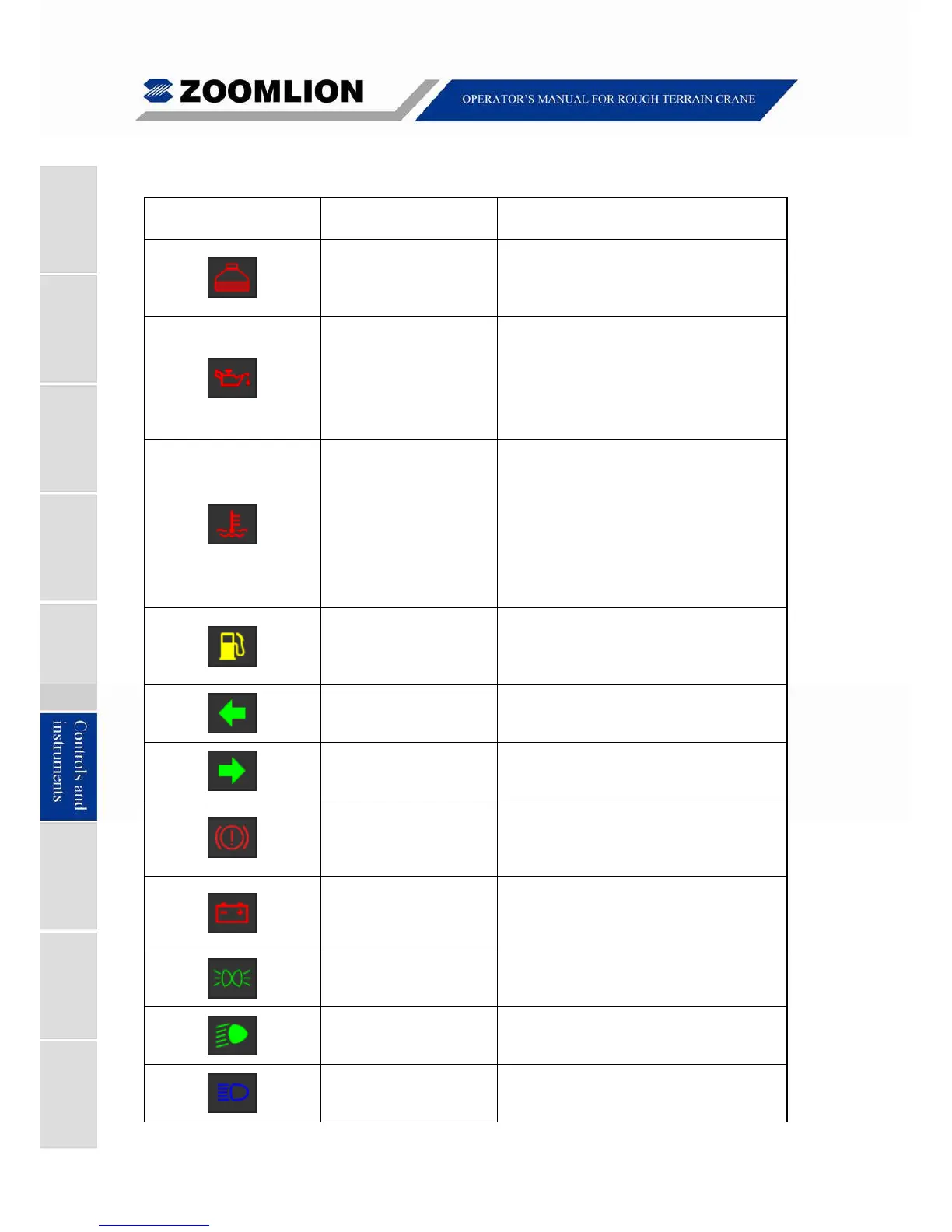

Table 06 – 3 Indicators – Universal Symbol Identification
INDICATOR SYMBOL DESCRIPTION FUNCTION
ENGINE COOLANT
LOW INDICATOR
Illuminates:
Shows that the engine coolant level is
too low.
ENGINE OIL
PRESSURE LOW
INDICATOR
Illuminates:
Shows that the engine oil pressure is too
low or the oil filter screen is dirty.
Stop the engine immediately to prevent
damage.
ENGINE COOLANT
TEMPERATURE HIGH
INDICATOR
Illuminates:
Shows that the engine coolant
temperature is high.
Examine the coolant temperature
indication and find the cause of the
out-of-tolerance indication. Do the steps
to decrease the coolant temperature.
FUEL RESERVE LOW
INDICATOR
Illuminates:
Shows that the fuel reserve is lower than
the permitted value (1/4 of the total).
LEFT TURN SIGNAL
Flashes:
Crane moves to the left.
RIGHT TURN SIGNAL
Flashes:
Crane moves to the right.
HIGH PRESSURE
FILTER DIRTY
INDICATOR
Illuminates:
Shows that the high pressure filter is
dirty.
CHARGE
MONITORING
INDICATOR
Illuminates:
Battery charging system fault.
CORNER MARKER
LIGHTS INDICATOR
Illuminates:
The corner marker lights are ON.
LOW BEAM
INDICATOR
Illuminates:
Low beam lights are ON.
HIGH BEAM
INDICATOR
Illuminates:
High beam lights are ON.
