RT60 Rough Terrain Crane 06 - 28

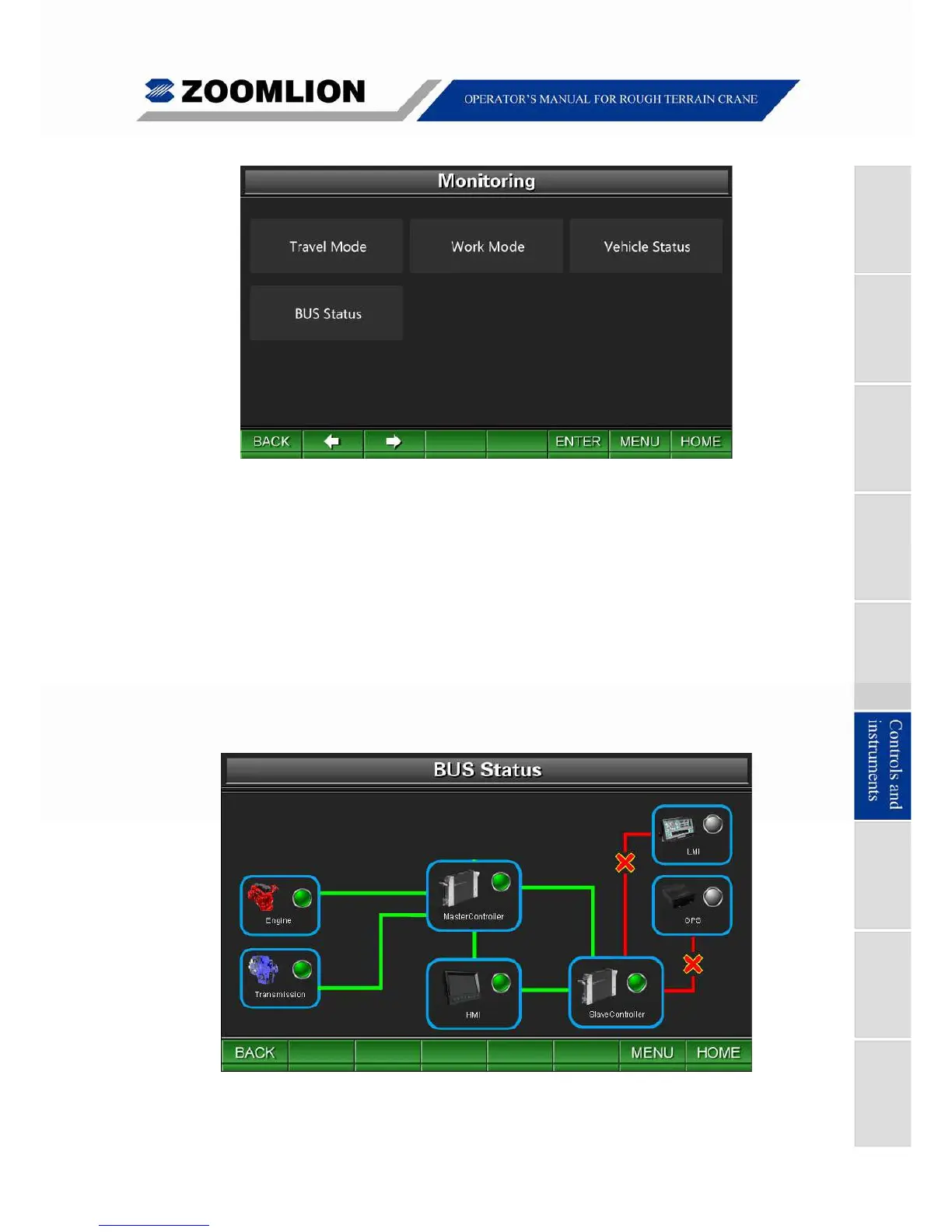

Figure 06 – 20 Monitoring
(1) Travel mode: move the cursor to select the icon “Travel mode” and press the key
“ENTER” to enter the Travel Mode Screen. See Figure 06 – 13.
(2) Work mode: move the cursor to select the icon “Work mode” and press the key
“ENTER” to enter the Work Mode Screen. See Figure 06 – 14.
(3) Vehicle status: move the cursor to select the icon “Vehicle status” and press the key
“ENTER” to enter the Vehicle Status Screen. See Figure 06 – 15.
(4) Bus status: move the cursor to select the icon “Bus status” and press the key
“ENTER” to enter the Bus Status Screen. See Figure 06 – 21. If the communication
between the controllers fails, it means that the network signal between the controllers
is disconnected.
Figure 06 – 21 Bus Status
