104 CHAPTER 8: CONFIGURING VLANS
Creating VLANs The VLAN Setup Page allows the network administrator to create
user-defined VLANs.
The monitor users have no access to this page.
To crea te VL ANs :
1 Click Device > VLAN > Setup. The VLAN Setup Page opens:

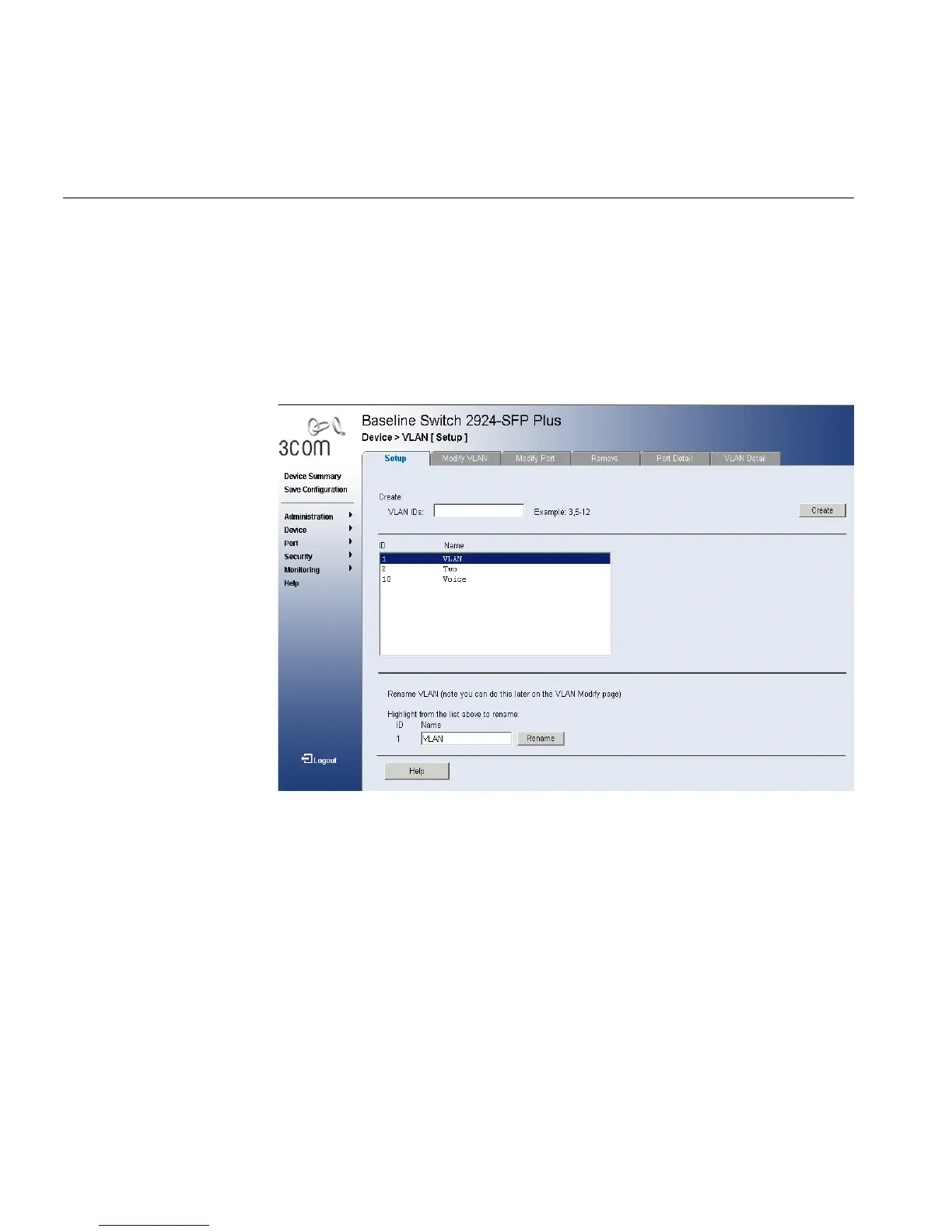

Figure 54 VLAN Setup Page
The VLAN Setup Page contains the following fields:
Create
■ VLAN IDs — Creates a VLAN ID.
■ ID — Displays the VLAN ID.
■ Name — Displays the user-defined VLAN name.
Rename VLAN
■ ID — Displays the VLAN ID.
■ Name — Renames the user-defined VLAN name.
2 .Enter a VLAN Number.
