166 CHAPTER 14: MANAGING SYSTEM FILES
Activating Image
Files
The Active Image Page allows network managers to select and reset the
Image files. The Device Boot is downloaded onto the device through the
CLI.
To upload System files:
1 Click Administration > Firmware Upgrade > Active Image. The
Active Image Page opens:

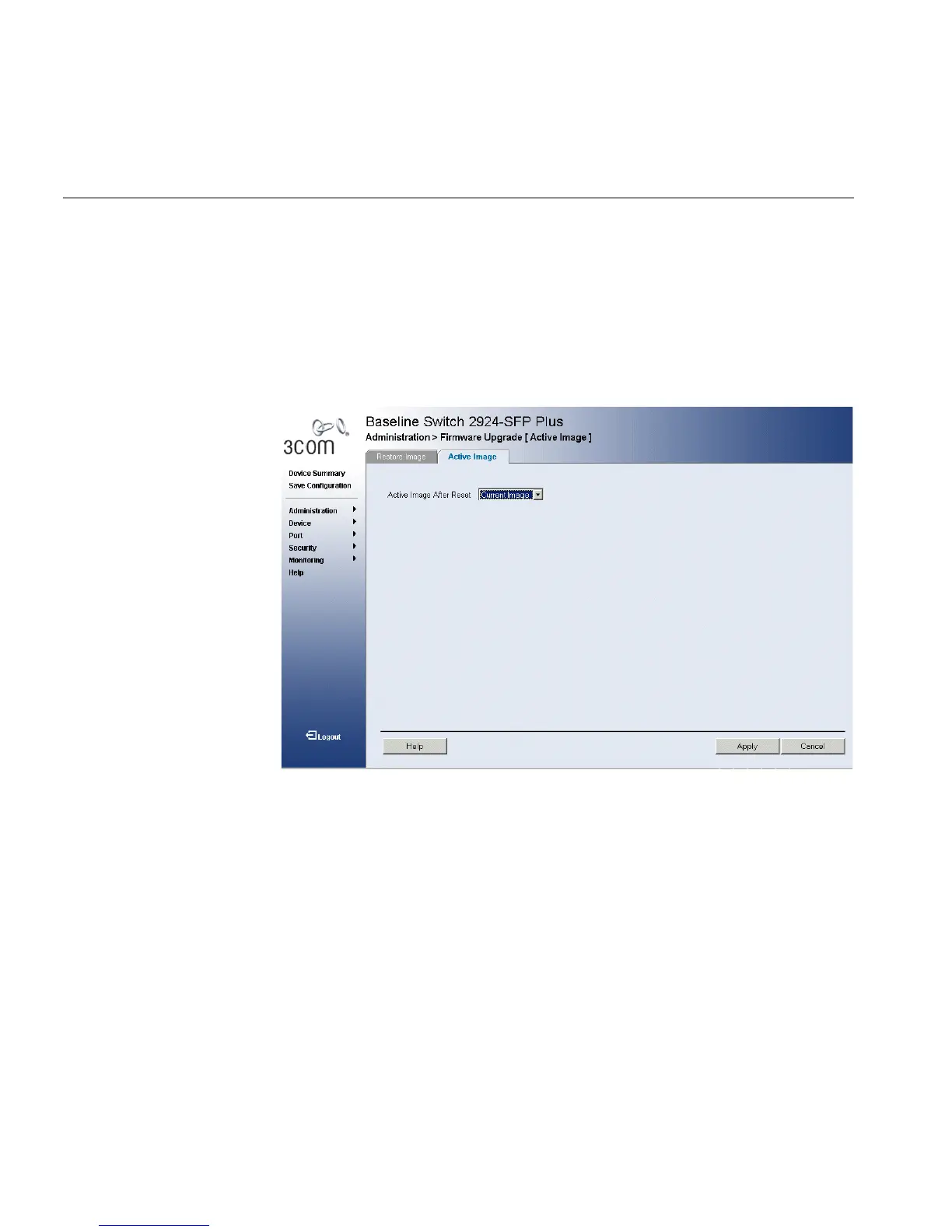

Figure 94 Active Image Page
The Active Image Page contains the following fields:
■ Active Image After Reset — The Image file which is active on the
unit after the device is reset. The possible field values are:
■ Current Image — Activates the current image after the device is
reset.
■ Backup Image — Activates backup image after the device is reset.
2 Select the active image to be activated after reset.
3 Click Apply. The active image file is defined, and the device is updated.
