Backing Up System Files 163
Backing Up System
Files
The Backup Page permits network managers to backup the system
configuration to a TFTP or HTTP server.
The monitor users have no access to this page.
1 To keep your currently running configuration, click the Save
Configuration item on the left side of the page.
2 Click Administration > Backup & Restore > Backup. The Backup Page
opens:

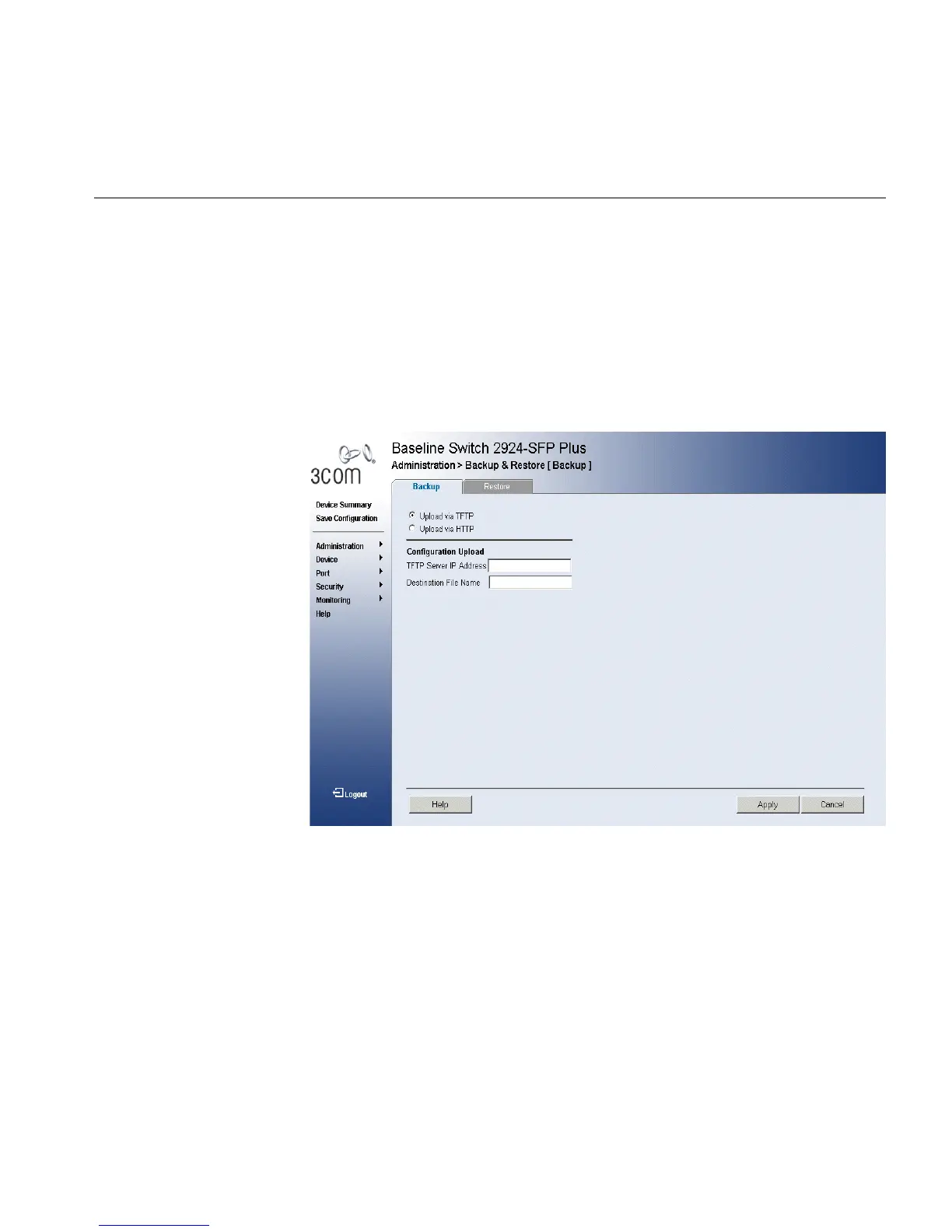

Figure 91 Backup Page
The Backup Page contains the following fields:
■ Upload via TFTP — Enables initiating an upload to the TFTP server.
■ Upload via HTTP — Enables initiating an upload to the HTTP server
or HTTPS server.
■ TFTP Server IP Address — Specifies the TFTP Server IP Address to
which the configuration files are uploaded.
■ Destination File Name — Specifies the destination file to which the
configuration file is uploaded.
3 Define the relevant fields.
4 Click Apply. The backup file is defined, and the device is updated.
