Viewing IP Based
ACLs
The IP Based ACL Summary Page displays information regarding IP Based
ACLs configured on the device.
To view IP Based ACLs:
1 Click Device > ACL > IP Based ACL > Summary. The IP Based ACL
Summary Page opens:

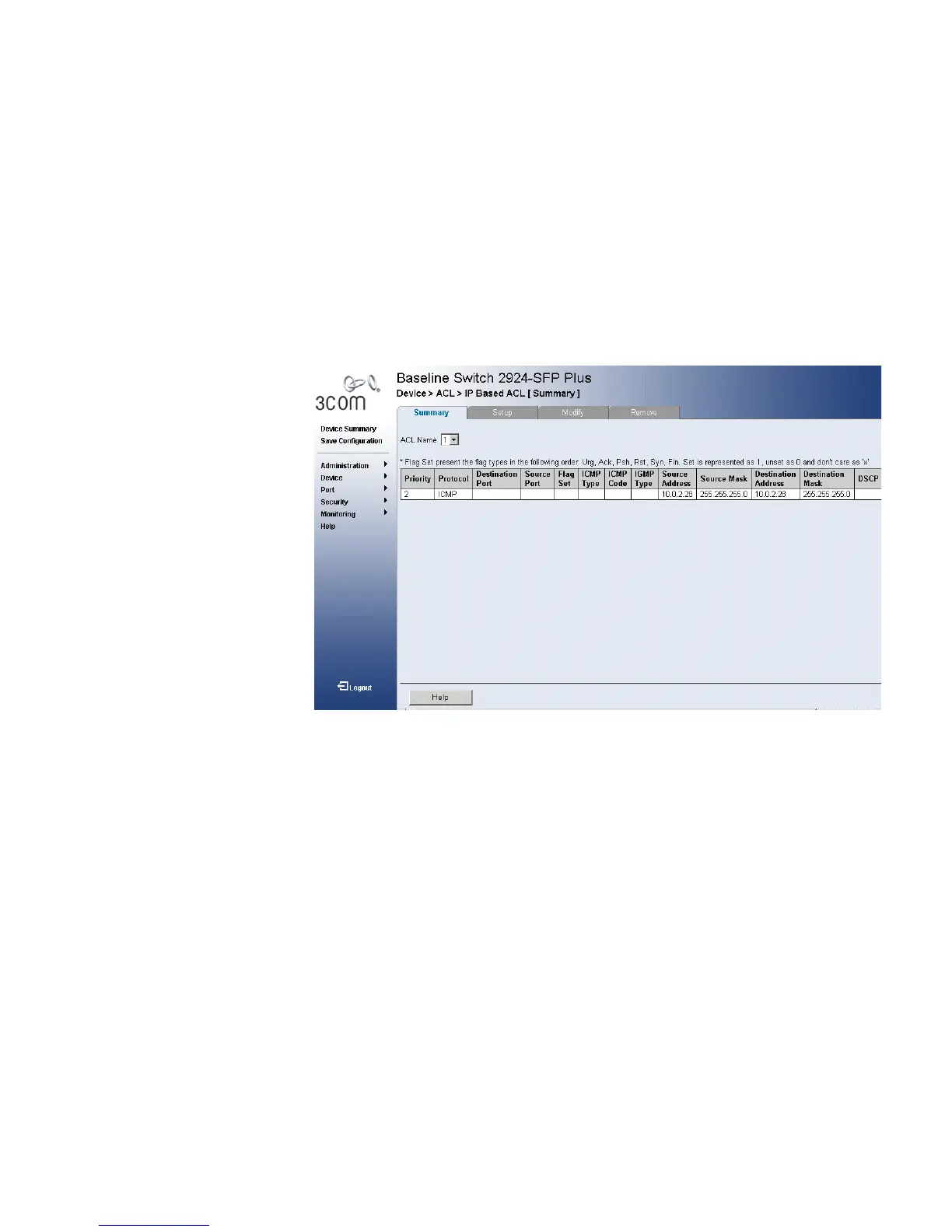

Figure 32 IP Based ACL Summary Page
The IP Based ACL Summary Page contains the following fields:
■ ACL Name — Contains a list of the IP Based ACLs.
■ Priority — Indicates the ACE priority, which determines which ACE is
matched to a packet on a first-match basis. The possible field values
are 1-2147483647, with 1 being the highest priority.
■ Protocol — Indicates the protocol in the ACE to which the packet is
matched.
■ Destination Port — Indicates the destination port that is matched
packets. Enabled only when TCP or UDP are selected in the Protocol
list.
■ Source Port — Indicates the source port that is matched packets.
Enabled only when TCP or UDP are selected in the Protocol list.
■ Flag Set — Indicates the TCP flag to which the packet is mapped.
■ ICMP Type — Specifies an ICMP message type for filtering ICMP
packets.
