Configuring Segments B-15
For management communication to work over the network, the port
through which your communication reaches the stack must be
connected to segment 1 of the hub with the IP address configured.
You can configure the segments for any of the hubs in the stack,
regardless of the hub through which your management reaches the
stack.
To configure the segments:
1
Do one of the following:
■
Double-click on the graphical representation of the stack (but not on
a port).
■
From the
Configure
menu, select
General Info
.
2
In the General Info dialog box, select the
Segment Conf
category.
Quick Config Manager displays the Segment Configuration panel, as
shown in Figure B-6.

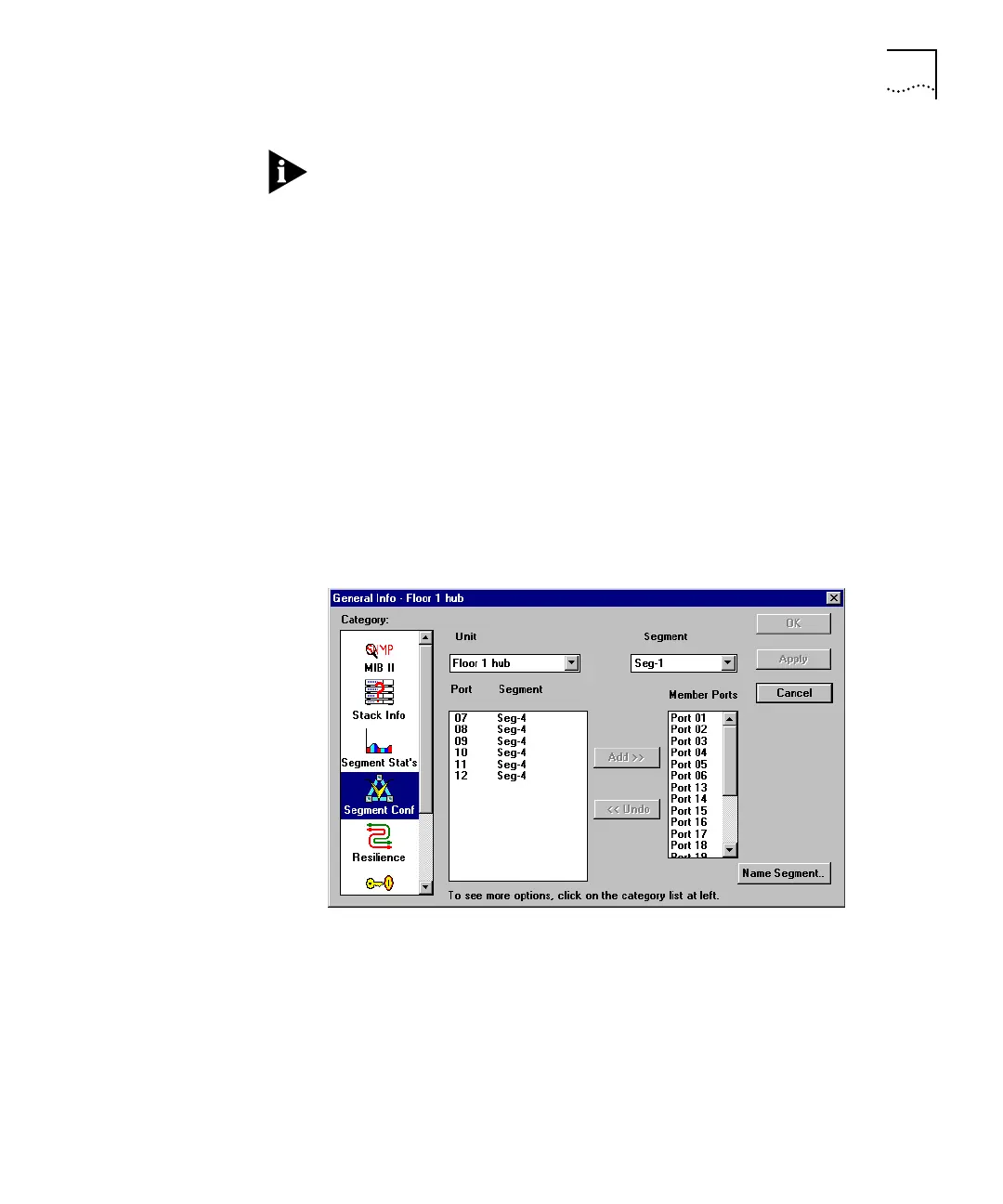

Figure B-6
Segment Configuration Panel
3
Using the Unit pull down list box, select the hub for which you want to
configure segments.
The Unit pull down list box displays the name of the hub (if configured)
or the number of the hub in the stack. In a correctly connected stack,
the bottom hub is unit 1.
