DUA1640-5AAA02
B-24
A
PPENDIX
B: M
ANAGEMENT
U
SING
Q
UICK
C
ONFIG
M
ANAGER
Ports
To fix or unfix a port or multiple ports:
1
Right-click on the segment’s name or utilization bar for the segment
that contains the port(s).
A pull right menu appears next to the mouse pointer.
2
Select
Fixed Ports
.
Quick Config Manager displays a Port Configuration dialog box for the
segment, as shown in Figure B-13. The dialog box shows a list of all
the ports in the stack that are part of that segment, and whether they
are currently fixed or unfixed.

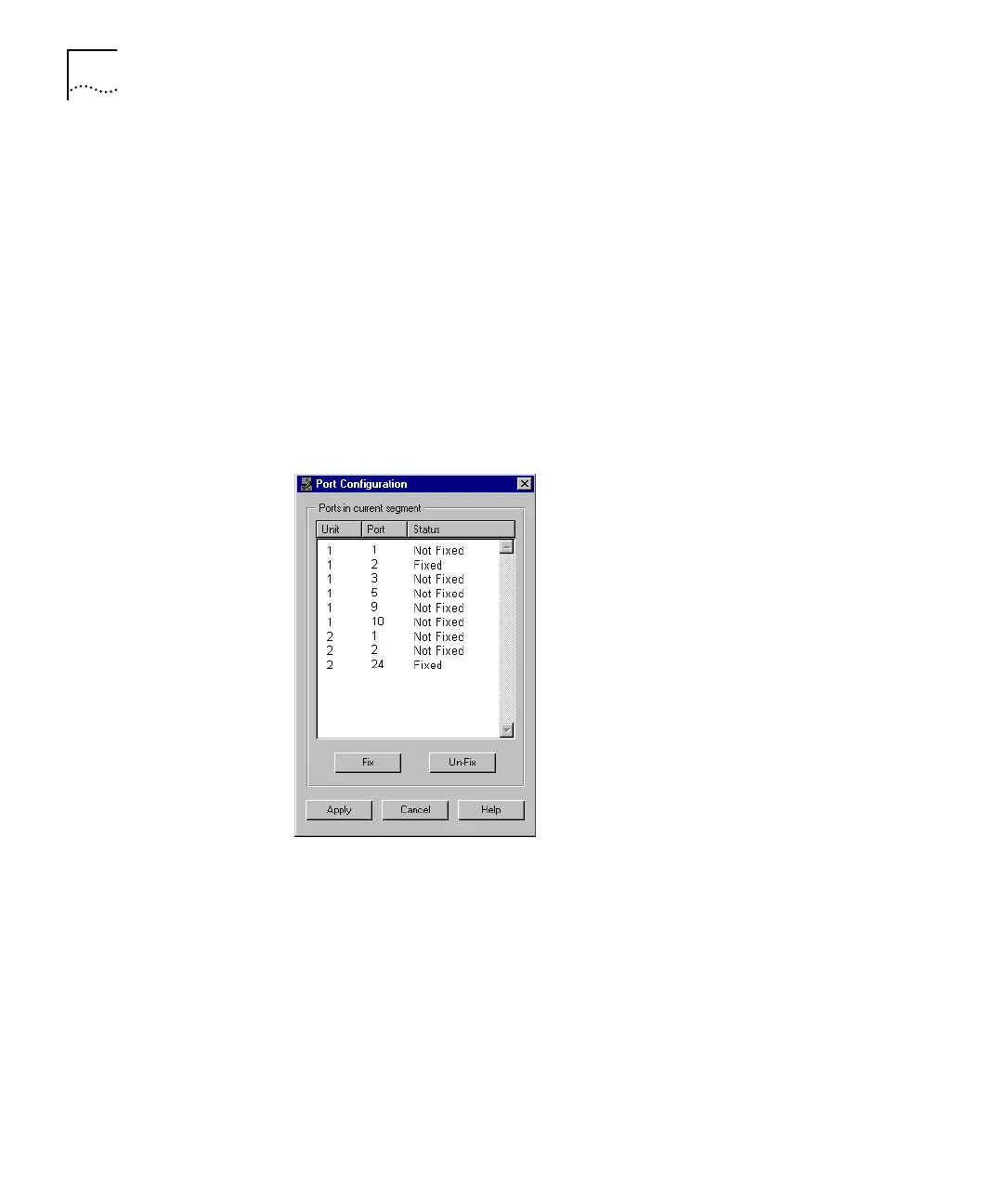

Figure B-13
Port Configuration Dialog Box For a Segment
3
Click on a port or on multiple ports (while dragging the mouse pointer
over the entries, or using [Ctrl]) in the list to highlight the port(s), and
then click
Fix
or
Unfix
to fix or unfix the port(s). Click
Apply
to send the
changes to the unit in the stack
before
closing the dialog box.
4
Click
Cancel
to close the dialog box.
