Network Camera User’s Guide
13/96

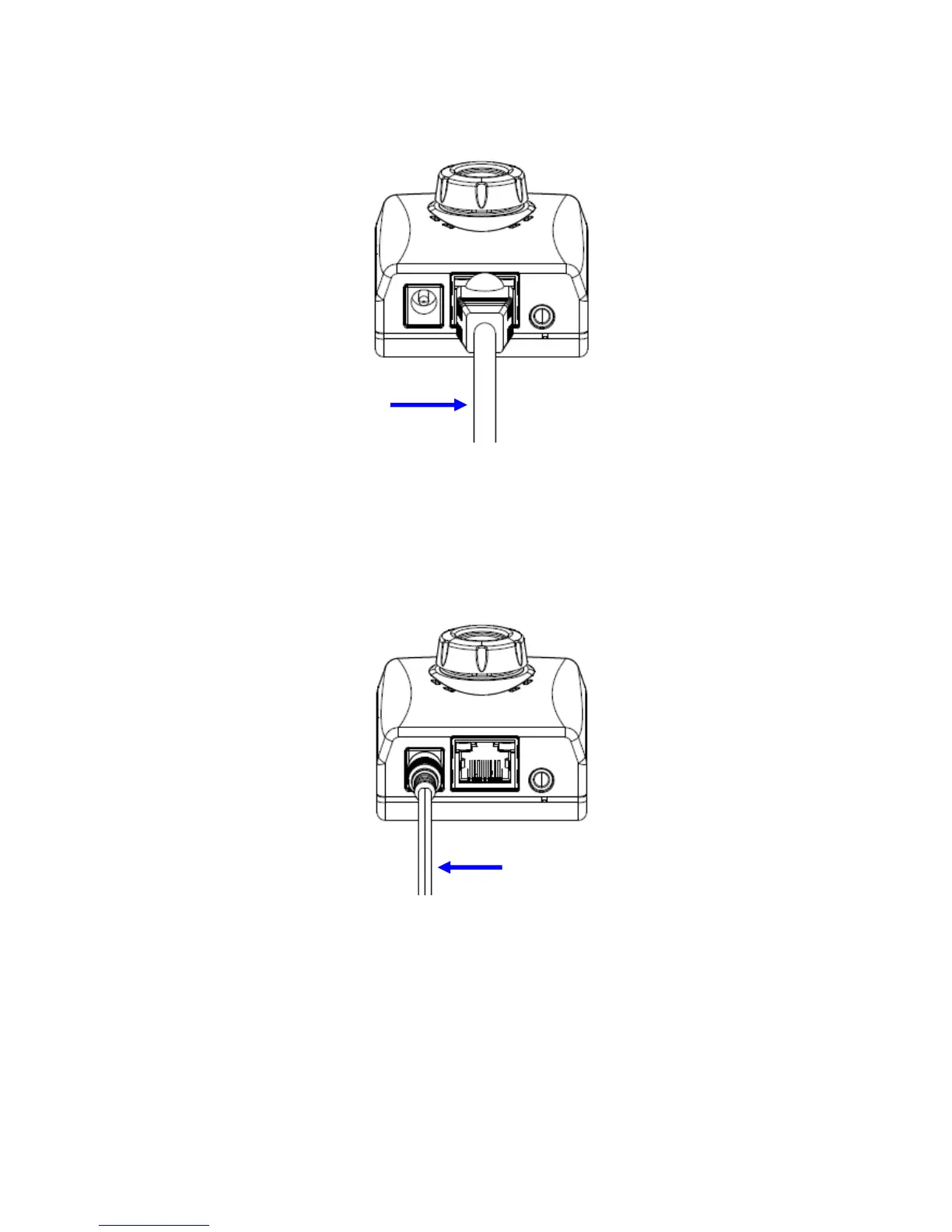

4. Connect the external power supply to Camera
Connect the attached power adapter to the DC power jack of the Network Camera. Note:
Use the power adapter, 12VDC, included in the package and connect it to wall outlet for
AC power.
Once you have installed the camera well and powered it on, the Power LED (orange) will
turn on later. Once the Power LED turned on, it means the system is booting up
successfully. Furthermore, if you have a proper network connection, and access to the
camera, the LAN LED (green) will flash green under wired mode.
Ethernet
Cable
Power
Cable
To Next Page
