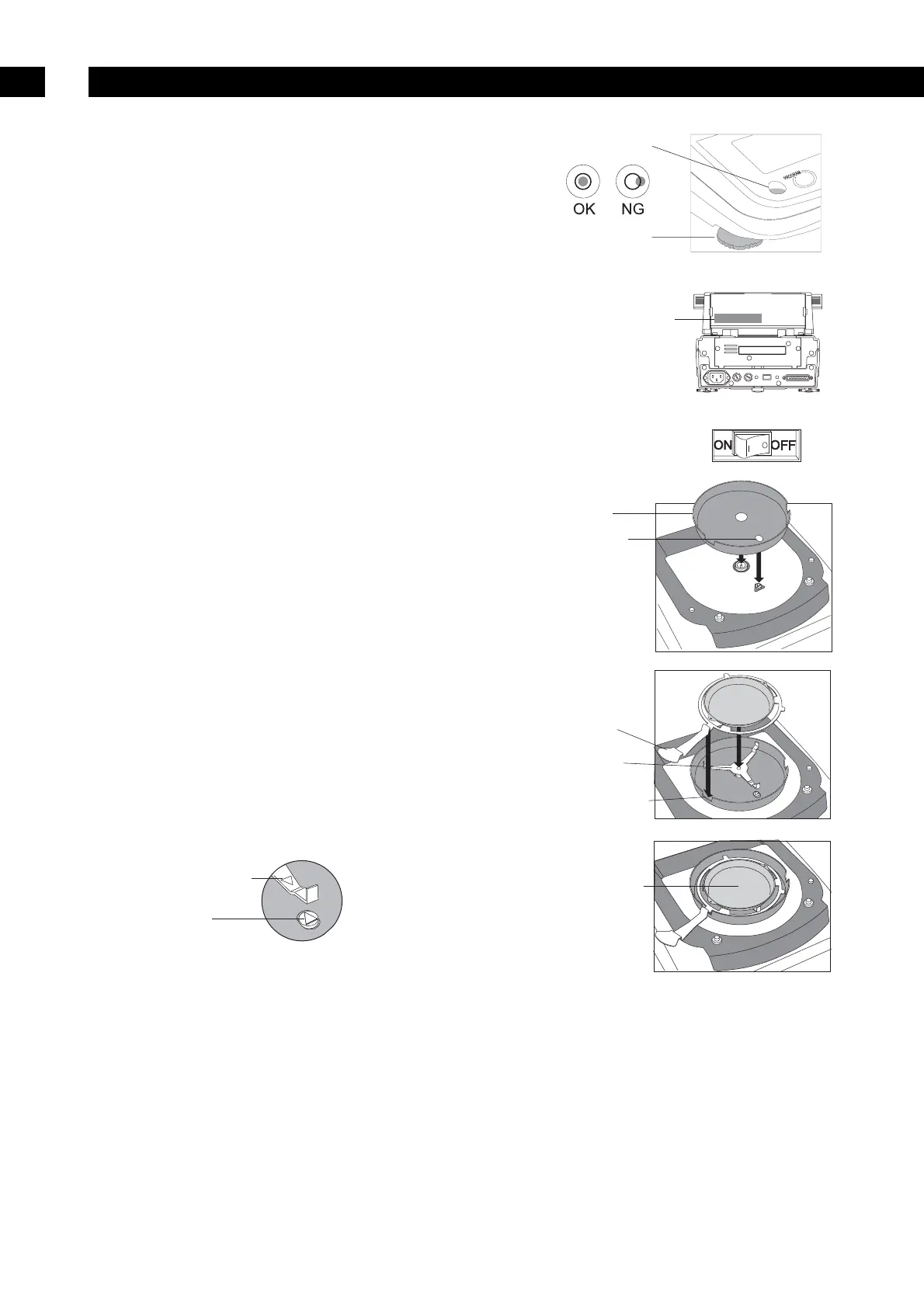

5.1. Setting up the Instrument
1. Level the analyser by adjusting the height of the feet and
con firm it by using the level bubble.
2. Confirm that the power switch is in the "OFF" position.
3. Connect the power cord.
4. Align the guide holes of the Breeze Break to the guides
on the body.
5. Hook the pan handle into the cut out of the rim of the
breeze break ring.
6. Place the pan support. Align ∆ signs
of the pan support and the body.
Preparations (Installation, Motion Check)
5
Leveling foot
Level Bubble
Voltage label
Power switch
Breeze break
Align the guides
Sign ∆ on pan support
Sign ∆ on body
Pan support
Pan handle
Hook the tong to
cut out of the rim
Sample pan
