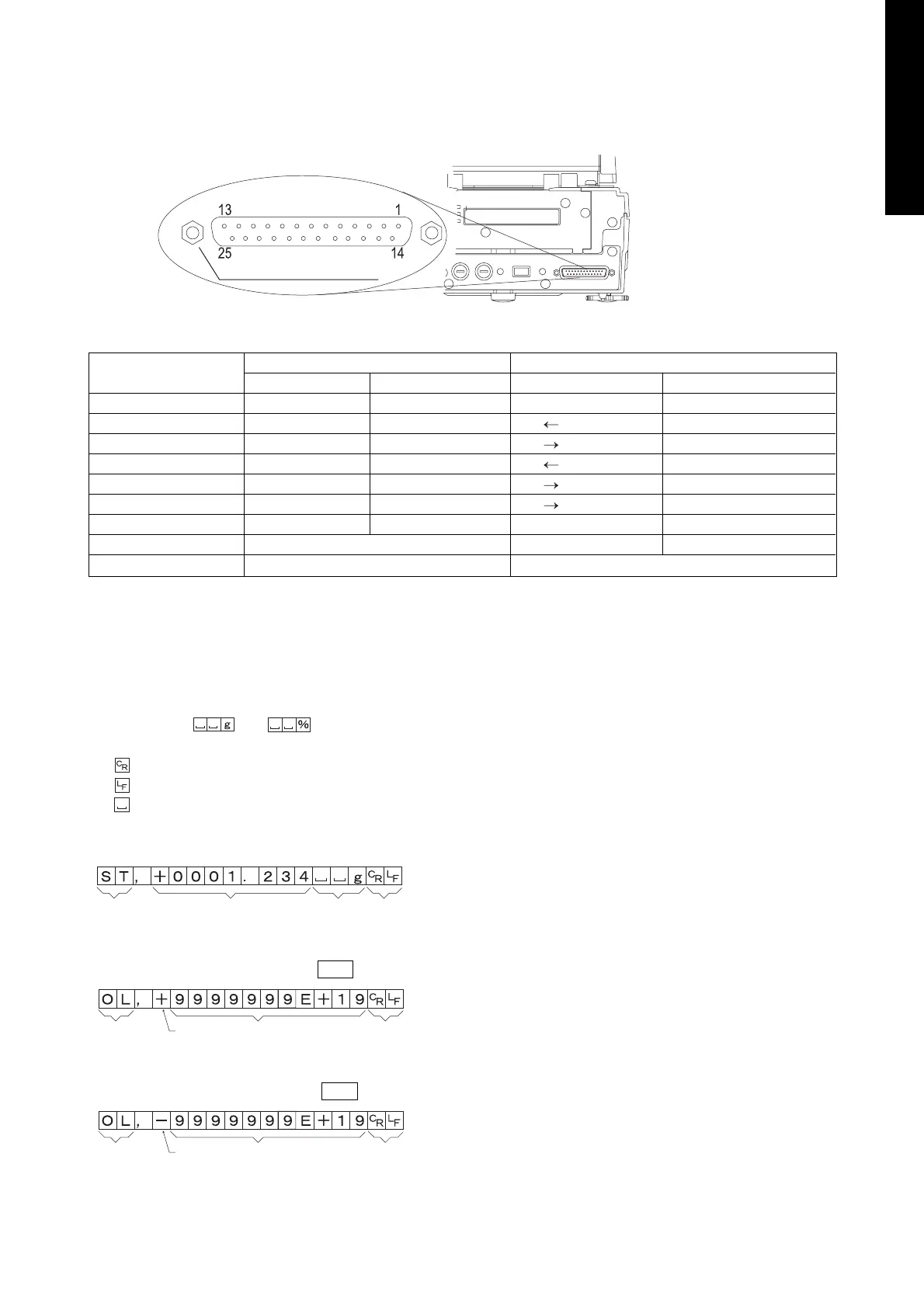

Pin Connections
MX-50 and MF-50 (DCE) Computer (DTE)
Pin No . Signal Name Description Direction Signal Name
1 FG Frame ground - FG
2 RXD Receive data TXD
3 TXD Transmit data RXD
4 RTS Ready to send RTS
5 CTS Clear to send CTS
6 DSR Data set ready DSR
7 SG Signal ground - SG
16, 18, 19, 21, 23 Internal use Do not connect
Other Not used
9.2. Output Format
Format without Temperature Data (Function Table 5-d 0 )
– The format consists of fifteen characters except the terminator.
– A polarity sign is placed before the data with the leading zeros. If the data is zero, the plus sign is used.
– The unit is or .
– Sign of ASCII code
0Dh Carriage return
0Ah Line feed
20h Space
Sample Mass Format
Overload Format (Too heavy e display)
Under load Format (Too light -e display)
