A&D TM-2430 - Interface Specifications

Page 12
Interface Connected to a computer, you can output the data and enter
parameters. Connected to a printer, you can print the data.
EIA RS-232C, Asynchronous, bi-directional, half duplex
Baud rate 9600 bps
Data bits 8 bits
Stop bits 2 bits
X parameter Used (for computer)
Not used (for printer)
Parity None
Code ASCII
Environment specifications
Operating environment + 10
｡
C ~ +40
｡
C (+50
｡
F ~ +104
｡
F), Less than 85%RH *
Transport and Storage - 20
｡
C ~ +55
｡
C ( -4
｡
F ~ +131
｡
F), Less than 95%RH *
* Non Condensing
Physical specifications

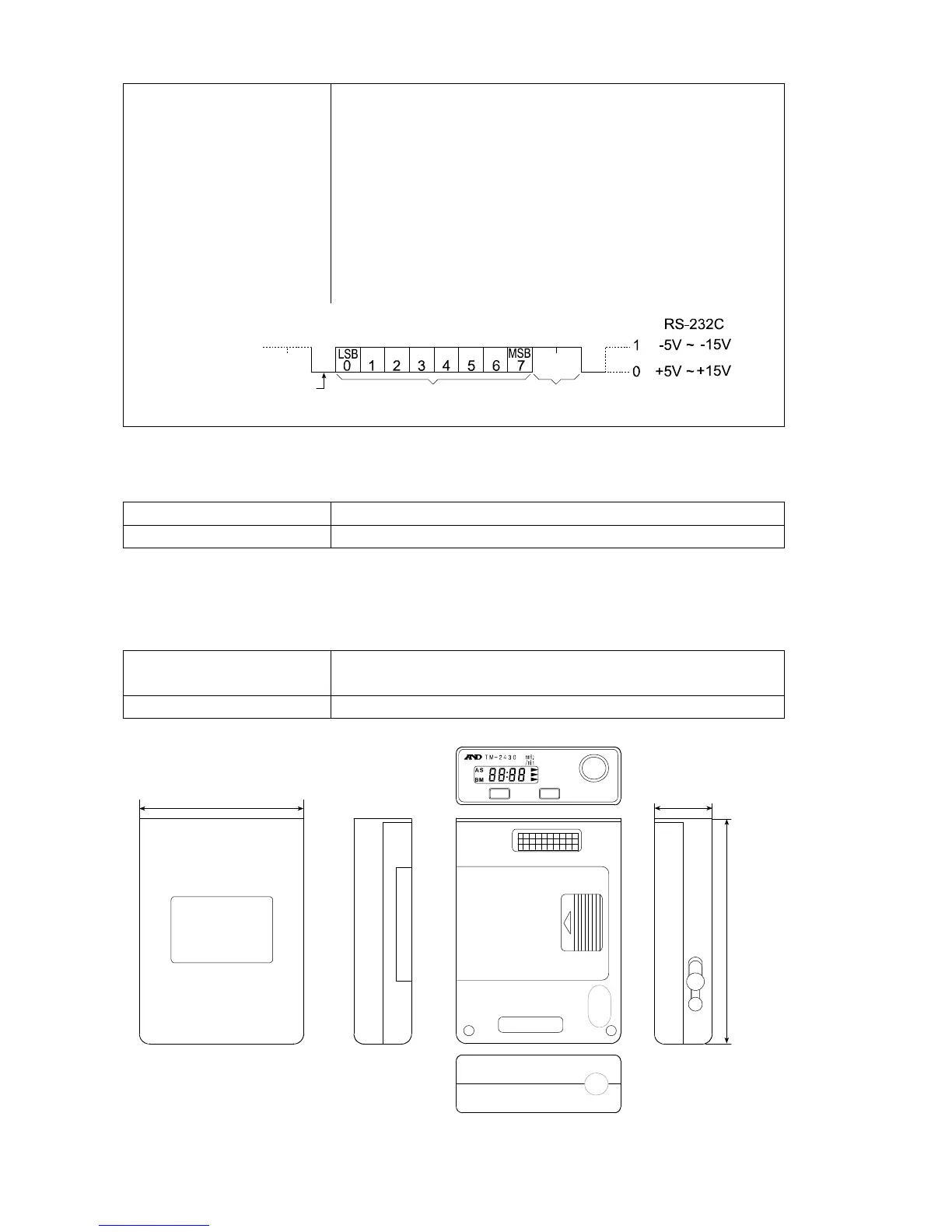

Dimensions 72(W) x 100(D) x 27(H) mm
2.8(W) x 3.9(D) x 1.0(H) in.
Weight Approx. 215 g (0.47lb) excluding cuff
UNIT:mm
Start bit
Data bits
Stop bits
72
27
100
SYS/INTERVAL
DIA
PULSE/TIME
AIR
AUTO
ON/OFF
START
STOP
0
1
2
0123456789
