Preparation of the Carrying Case
Use the belt or shoulder band to attach the carrying case.
We recommend the belt so that the carrying case is not worn out of shape on
the patient.

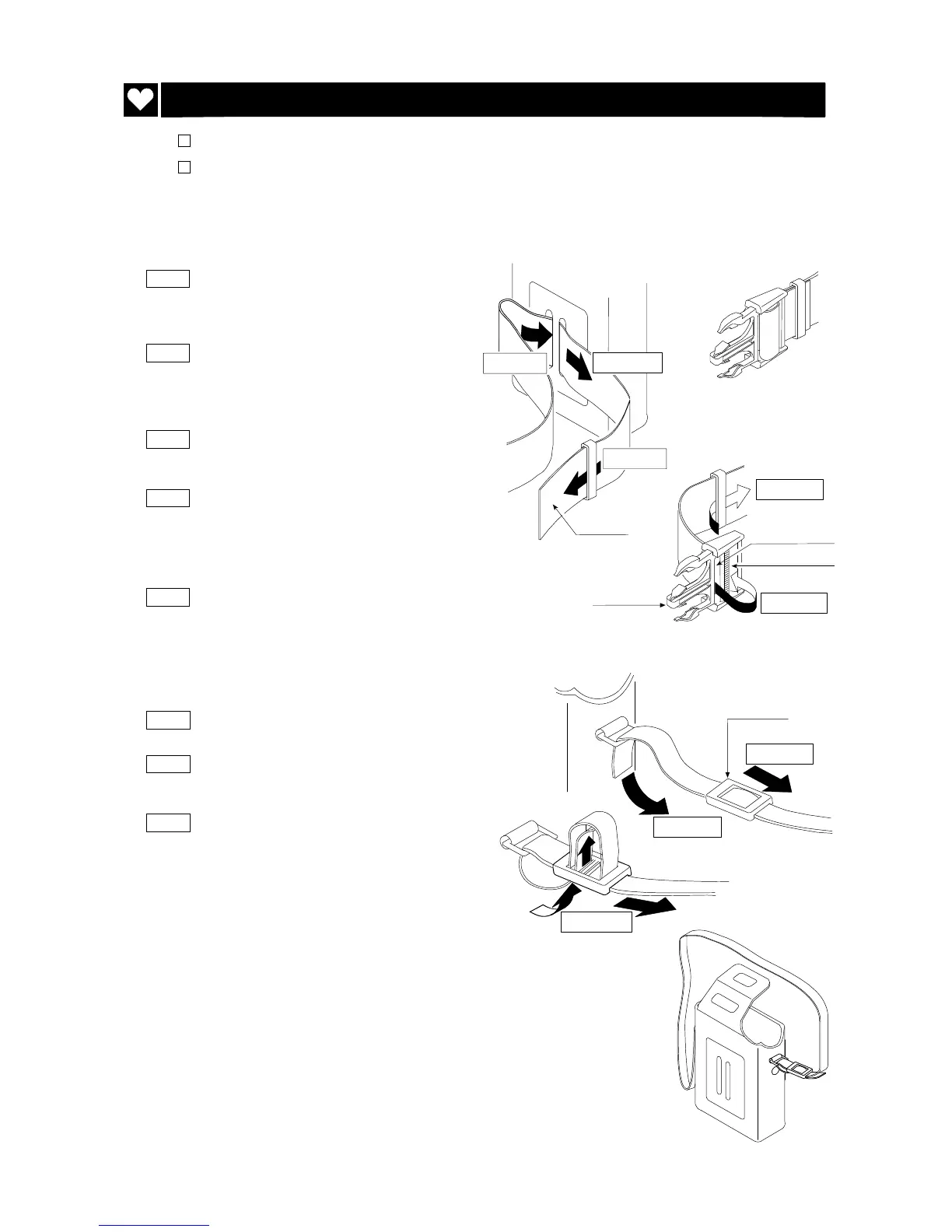

Using the Belt
Step 1 Insert the belt to the hole of the
carrying case.
Step 2 Pull the belt from the hole of the
carrying case.
Step 3 Pass the belt to the ring.
Step 4 Thread the belt through the
front-hole and the rear-hole of the
hook.
Step 5 Insert the belt to the ring again.
Using the Shoulder Band
Step 1 Insert the band to the buckle.
Step 2 Pass the belt to the ring.
Step 3 Thread the belt through the
buckle like right illustration.
Buckle
Step 1
Step 2
Step 3
Example
Step 1
Step 2
Example
Step 3
Belt
Step 5
Front-hole
Rea
r
-hole
Step 4
Hook
Ring
Carrying case
