Alkaline batteries (type LR6, type AA, Mignon)
The batteries are not included in this pack.

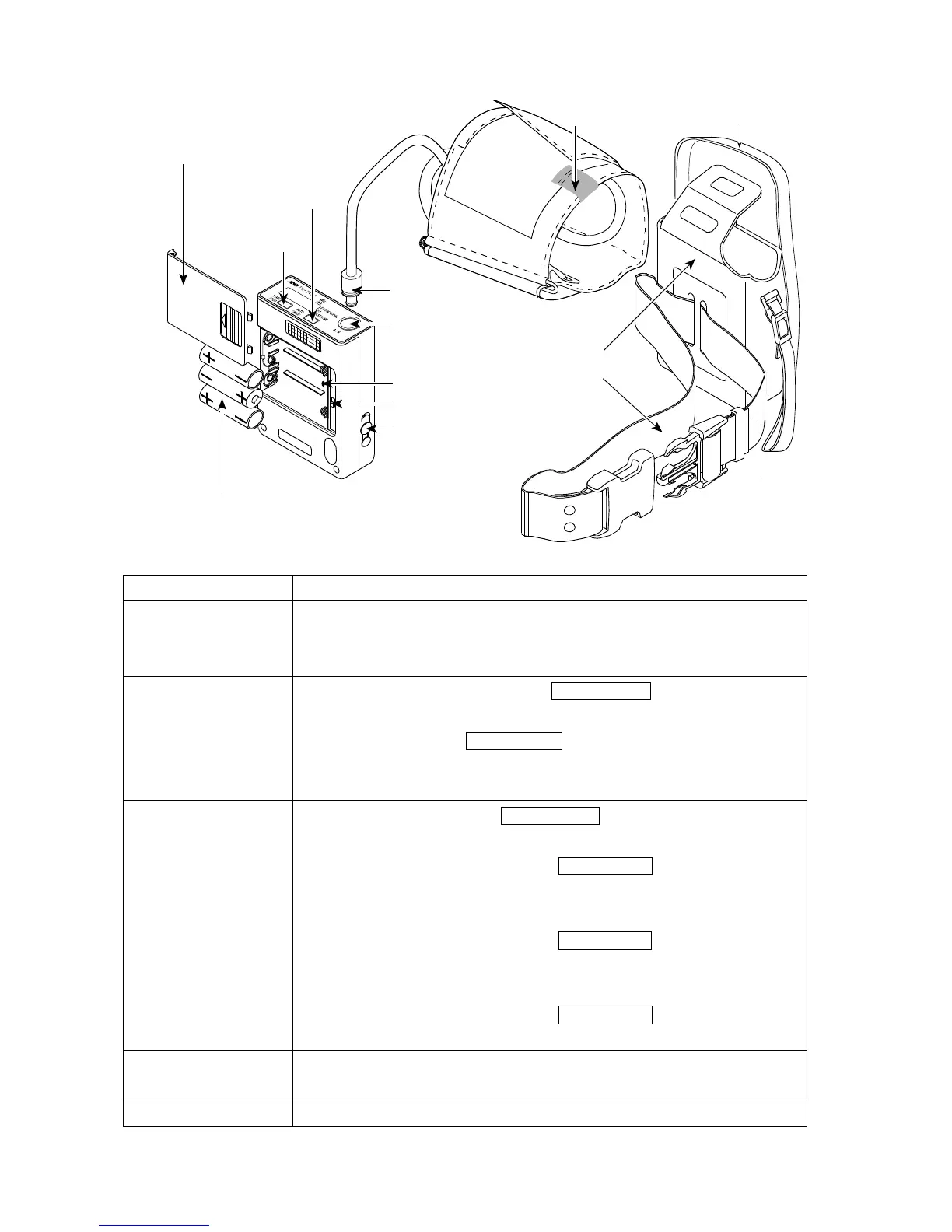

Name Functions
Power switch This is the main power switch. At the OFF state, all data and
parameters are preserved by an backup battery. This backup
battery life is approximately 10 days with the power off.
AUTO ON/OFF key ･When you press and hold the AUTO ON/OFF key, the automatic
measurement is started or stopped alternately.
･When you press the
AUTO ON/OFF key at mode II of the automatic
measurement, "S" is displayed or turned off alternately. This sign
changes the interval for sleep.
START STOP key ･ When you press the START STOP key, a blood pressure
measurement is started at once.
･When you press and hold the START STOP key for approx. 3
seconds, the recorder proceeds to "Selection for the automatic
measurement".
･When you press and hold the START STOP key for approx. 6
seconds, the recorder proceeds to "Parameters for the display
and clock".
･When you press and hold the START STOP key for approx. 9
seconds, the recorder proceeds to "Deleting old data".
RS-232C terminal This terminal is used for data output to a printer or computer. The
optional RS-232C cable is necessary to output the data.
Reset key All data and parameters are deleted.
Battery cover
Start Stop key
Auto ON/OFF key
Yellow mark
Air hose plug
Air socket
Reset key
Power switch
RS-232C terminal
Air hose
Shoulder band
Carrying case
Belt
Adult cuff
for left arm
