Controller Configuration Steps
1. Unit Application
2. Heating and Cooling Stages
3. Sensors
4. Supply Fan
5. Features
6. Limits
7. Setpoints
8. Date/Time
9. Schedule/Holidays
10. Trend Logs
11. Security Access
12. Restart

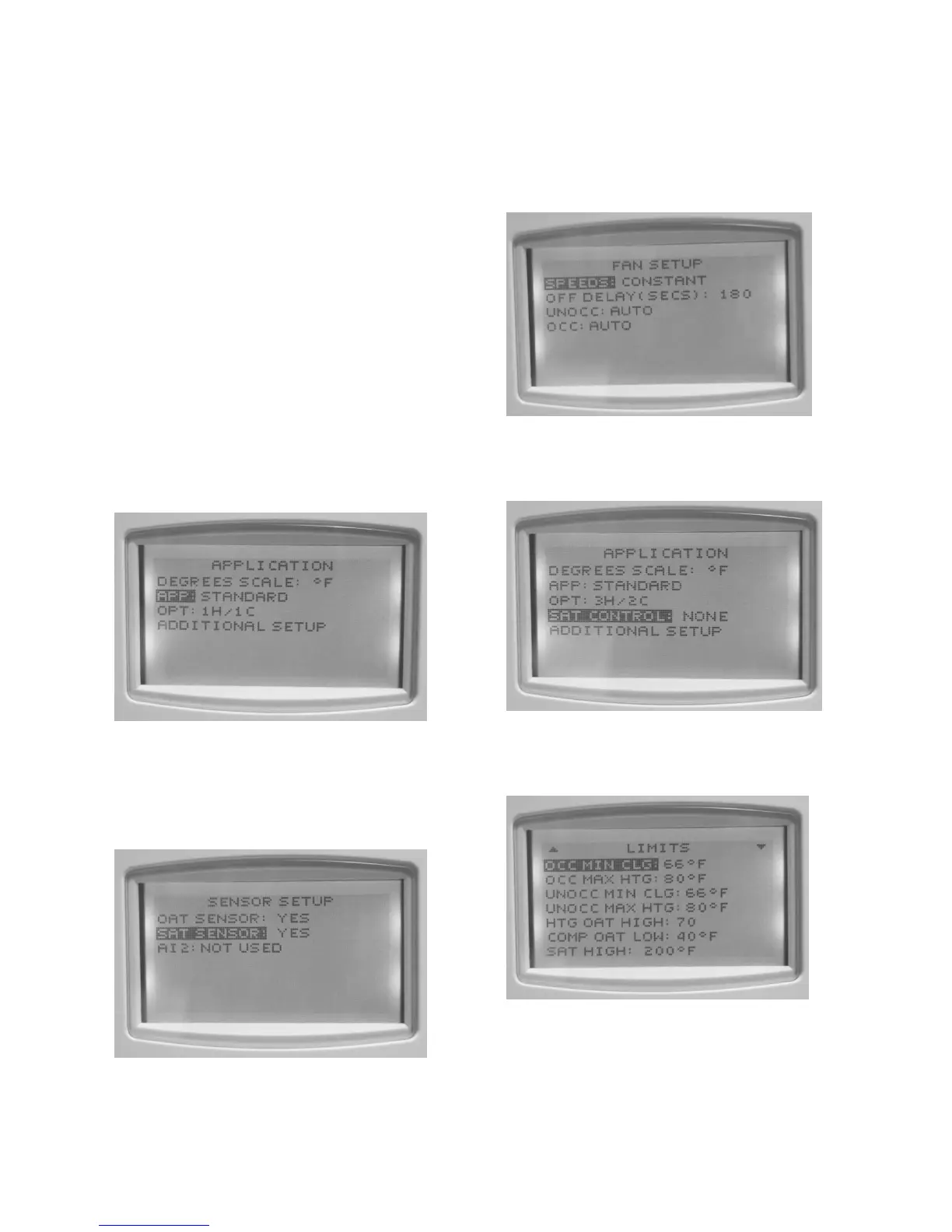

Constant Volume Air Conditioner
Configuration
1. Main Menu: Advanced: Application:
App = Standard
Opt = # Heat Stages / # Cool Stages
2. Main Menu: Advanced: Application:
Additional Setup: Sensors:
OAT Sensor = Yes
SAT Sensor = Yes
3. Main Menu: Advanced: Application:
Additional Setup: Fan:
Speeds: Constant
Unocc: On or Auto
Occ: On or Auto
4. Main Menu: Advanced: Application:
SAT Control = None
5. Main Menu: Advanced: Limits:
Check Limit Values
