Economizer

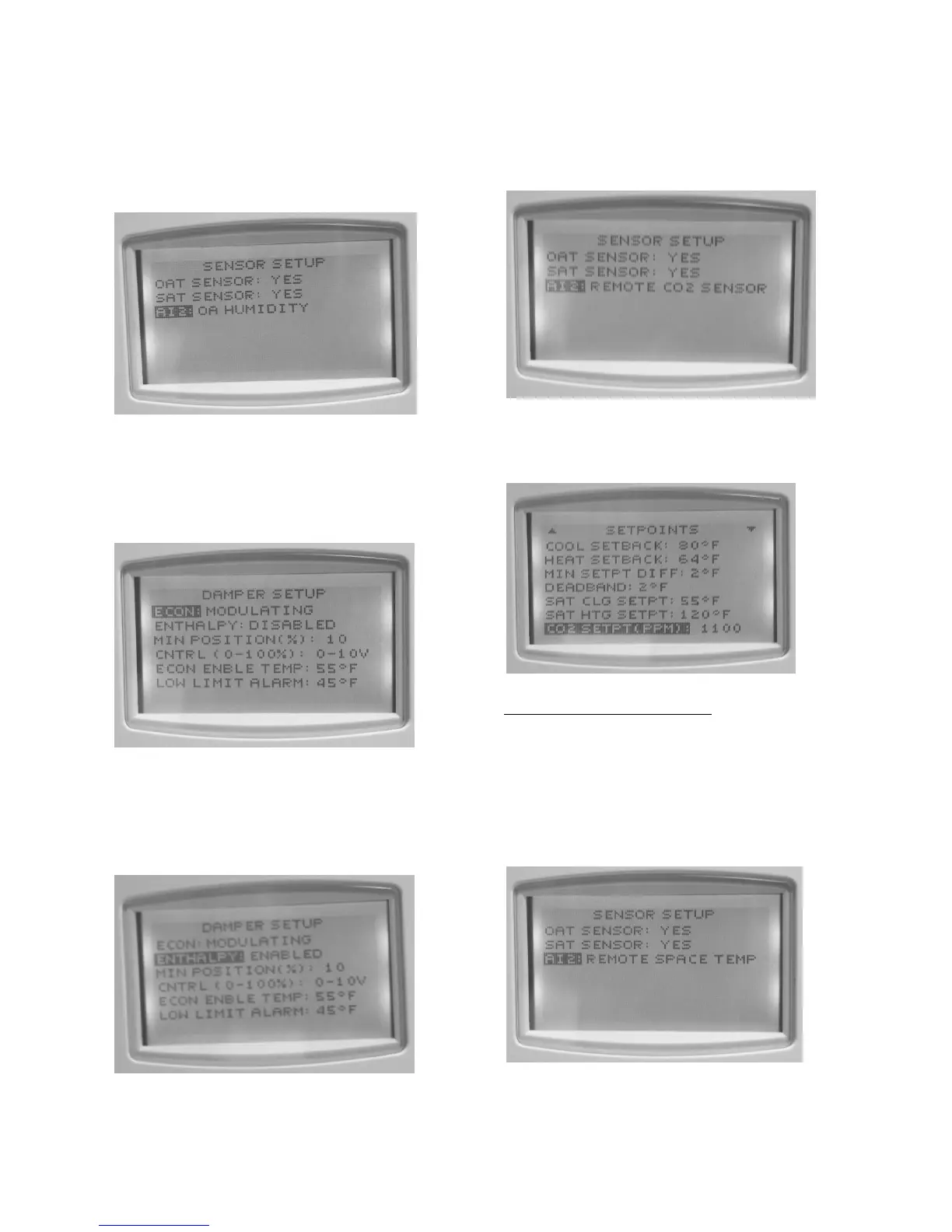

1. Main Menu: Advanced: Application:

Additional Setup: Sensors:

Configure OA Humidity Sensor if

Enthalpy Controlled

2. Main Menu: Advanced: Application:

Additional Setup: Damper:

Setup Modulating Economizer

Damper and Checks Setpoint Values

3. Main Menu: Advanced: Application:

Additional Setup: Damper:

Enable Enthalpy Economizer if

Enthalpy Controlled

Override

1. Main Menu: Advanced: Application:

Additional Setup: Sensors:

Configure OA Humidity Sensor

2. Main Menu: Setpoints:

Check CO

Setpoint Value

Remote Space Temperature

1. Main Menu: Advanced: Application:

Additional Setup: Sensors:

Configure Remote Space

Temperature Sensor or

Configure Remote Space

Temperature Sensor Averaging
