Single Zone VAV Heat Pump

Configuration- VAV Cool + VAV Heat

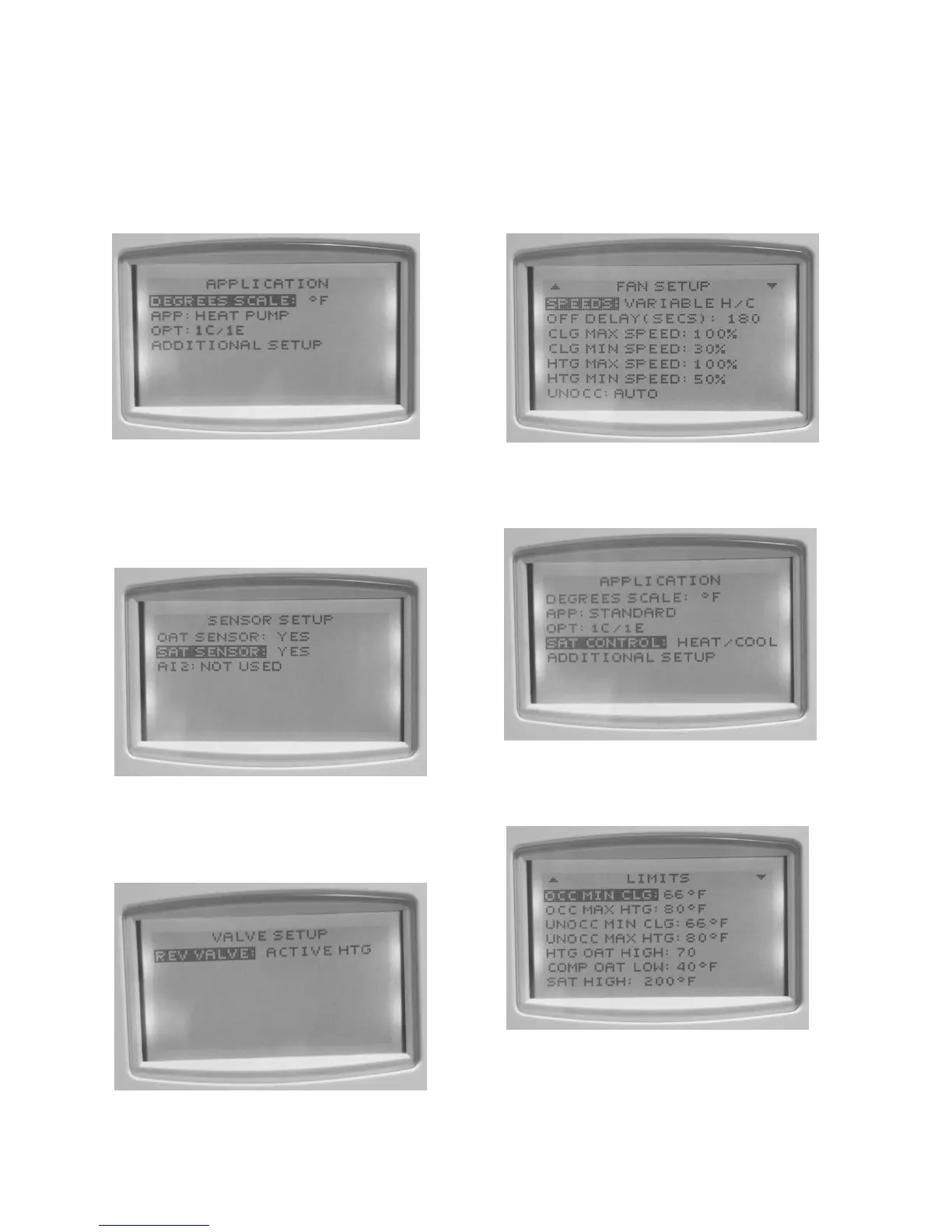

1. Main Menu: Advanced: Application:

App = Heat Pump

Opt = # Compressor Stages / with or

without Emergency Heat

2. Main Menu: Advanced: Application:

Additional Setup: Sensors:

OAT Sensor = Yes

SAT Sensor = Yes

3. Main Menu: Advanced: Application:

Additional Setup: Valves:

Check Reversing Valve Active Mode

4. Main Menu: Advanced: Application:

Additional Setup: Fan:

Speeds: Variable Heating and Cooling

Unocc: On or Auto

Occ: On or Auto

Check Minimum Speeds

5. Main Menu: Advanced: Application:

SAT Control = Heating and Cooling

6. Main Menu: Advanced: Limits:

Check Limit Values
