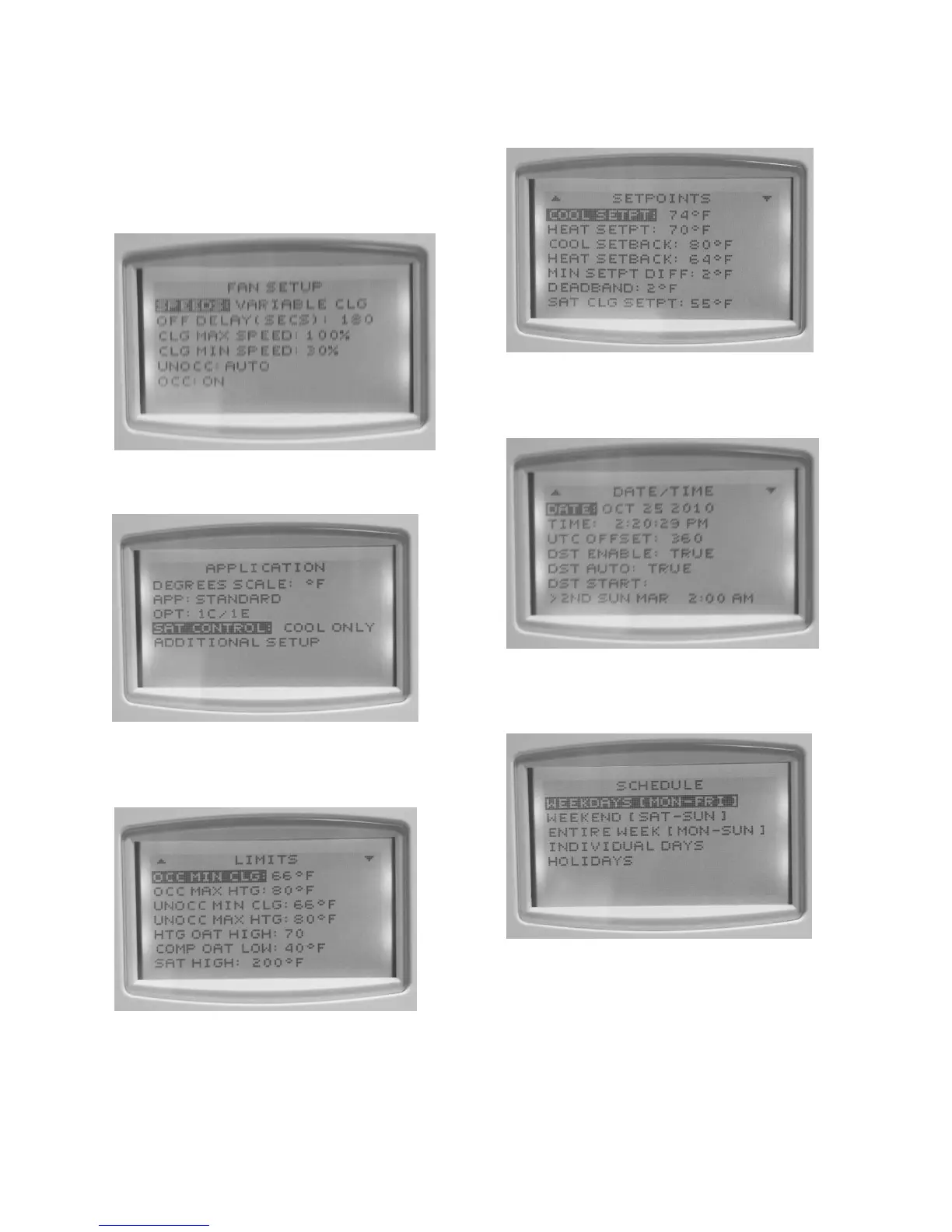

3. Main Menu: Advanced: Application:

Additional Setup: Fan:

Speeds: Variable Cooling

Unocc: On or Auto

Occ: On or Auto

Check Minimum Speed

4. Main Menu: Advanced: Application:

SAT Control = Cooling

5. Main Menu: Advanced: Limits:

Check Limit Values

6. Main Menu: Setpoints:

Check Setpoint Values

7. Main Menu: Advanced: Date/Time:

Check Date and Time

8. Main Menu: Schedule:

Setup a Schedule and Holidays
