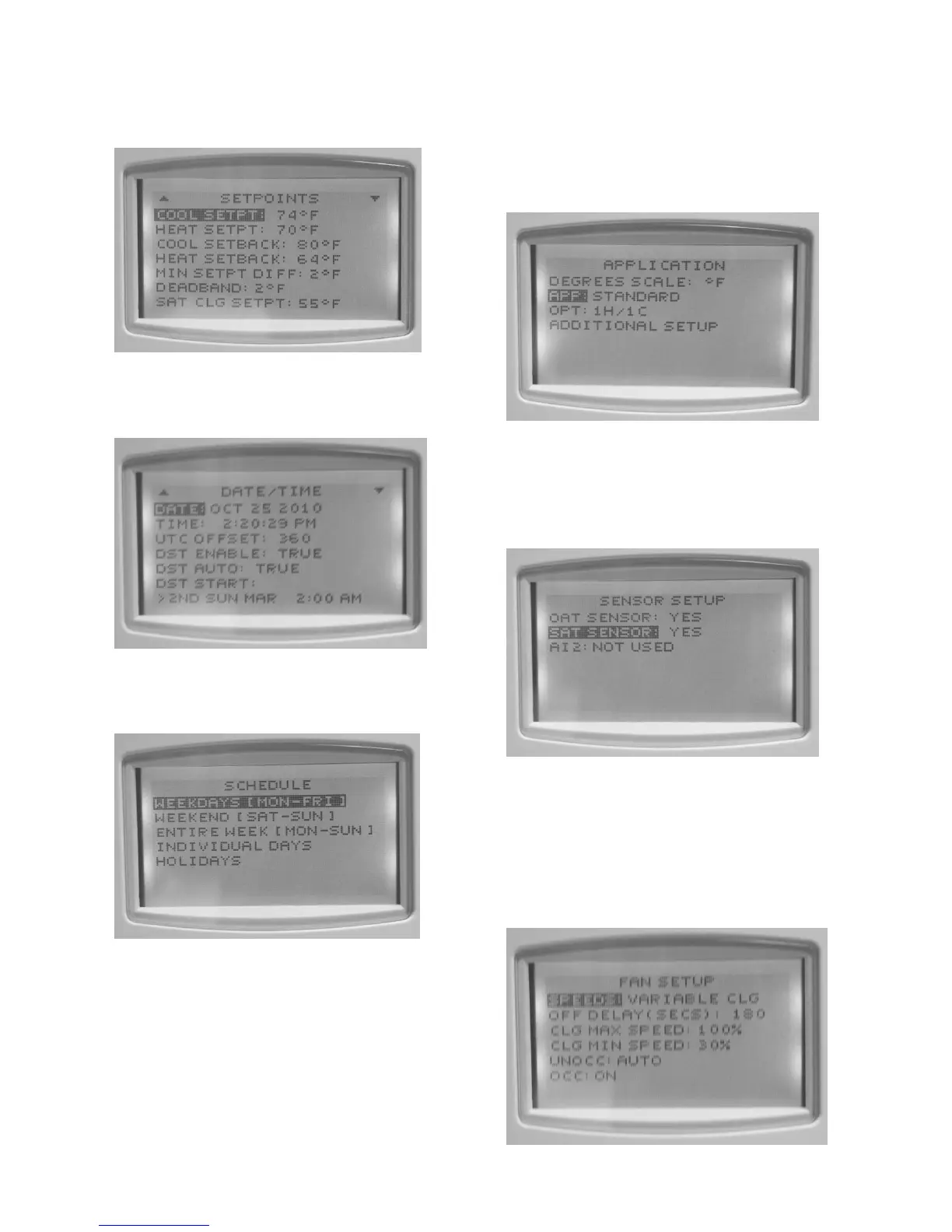

6. Main Menu: Setpoints:

Check Setpoint Values

7. Main Menu: Advanced: Date/Time:

Check Date and Time

8. Main Menu: Schedule:

Setup a Schedule and Holidays

Single Zone VAV Air Conditioner

Configuration - VAV Cool + CV Heat

1. Main Menu: Advanced: Application:

App = Standard

Opt = # Heat Stages / # Cool Stages

2. Main Menu: Advanced: Application:

Additional Setup: Sensors:

OAT Sensor = Yes

SAT Sensor = Yes

3. Main Menu: Advanced: Application:

Additional Setup: Fan:

Speeds: Variable Cooling

Unocc: On or Auto

Occ: On or Auto

Check Minimum Speed
