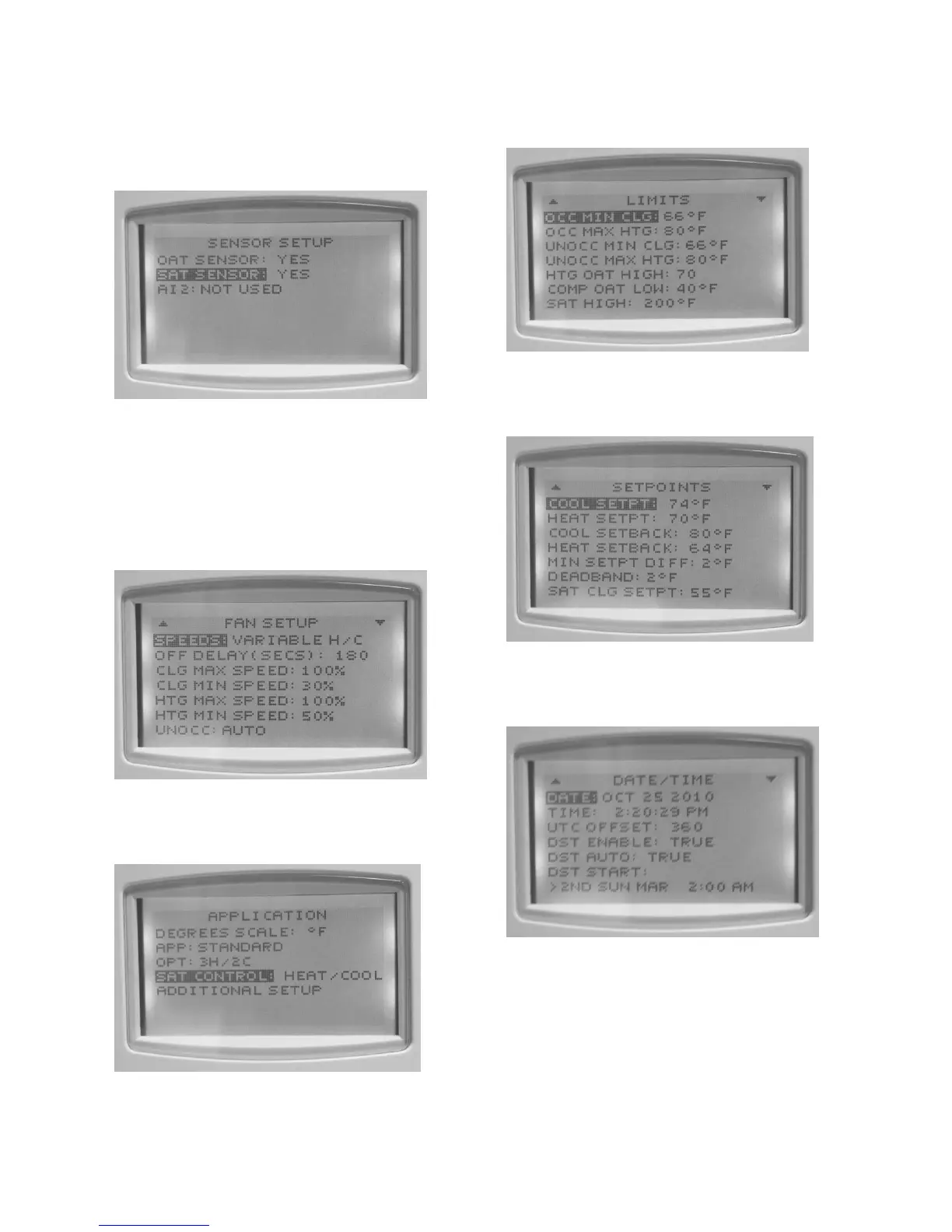

2. Main Menu: Advanced: Application:

Additional Setup: Sensors:

OAT Sensor = Yes

SAT Sensor = Yes

3. Main Menu: Advanced: Application:

Additional Setup: Fan:

Speeds: Variable Heating and Cooling

Unocc: On or Auto

Occ: On or Auto

Check Minimum Speeds

4. Main Menu: Advanced: Application:

SAT Control = Heating and Cooling

5. Main Menu: Advanced: Limits:

Check Limit Values

6. Main Menu: Setpoints:

Check Setpoint Values

7. Main Menu: Advanced: Date/Time:

Check Date and Time
