27
RSMV Technical Guide
APPENDIX A: CONDENSER OPTIONS
Single Condenser Conguration
Single Condenser Per Two Modules
In Single Condenser Per Two Modules wiring conguration, if using
2 modules, the Condenser Signal is wired to AO2 on the 1st module
but not the 2nd module and the Condenser Relay (RLY3) is enabled
on the 1st module but not the 2nd module.
If using 4 modules, the Condenser Signal is wired to AO2 on the 1st
and 3rd modules but not the 2nd and 4th modules and the Condenser
Relay RLY3 is enabled on the 1st and 3rd modules but not the 2nd
and 4th modules.
Refer to Figure 7, below for Prism 2 conguration.

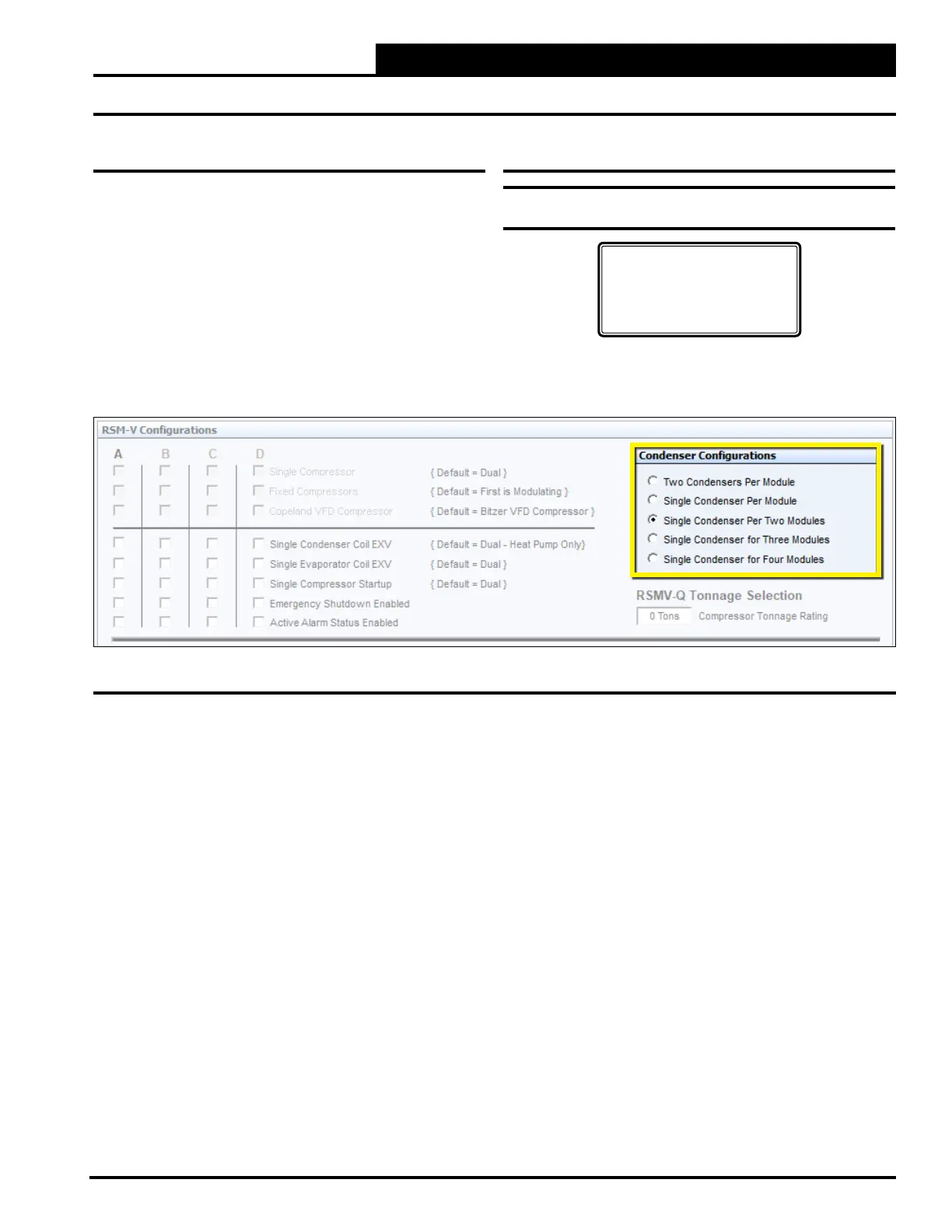

Figure 7: Prism 2 Condenser Conguration - Single Condenser Per Two Modules
Modular Service Tool Screen
RSMV Condenser Options
Conguration Screen
RSM#1-4 CONFIGURATION
Condenser Options
1 Cond per 2 RSMVs
USE < or > TO CHANGE
Select the “1 Condenser per 2 RSMVs” option on the above Hand
Held Service Tool Screen.
