28
RSMV Technical Guide
APPENDIX A: CONDENSER OPTIONS
Single Condenser Conguration
Single Condenser for Three Modules
In Single Condenser for Three Modules wiring conguration, the
Condenser Signal is wired to AO2 on the 1st module but not the
2nd & 3rd modules and the Condenser Relay (RLY3) is enabled on
the 1st module but not the 2nd & 3rd modules.
Refer to Figure 8, below for Prism 2 conguration.

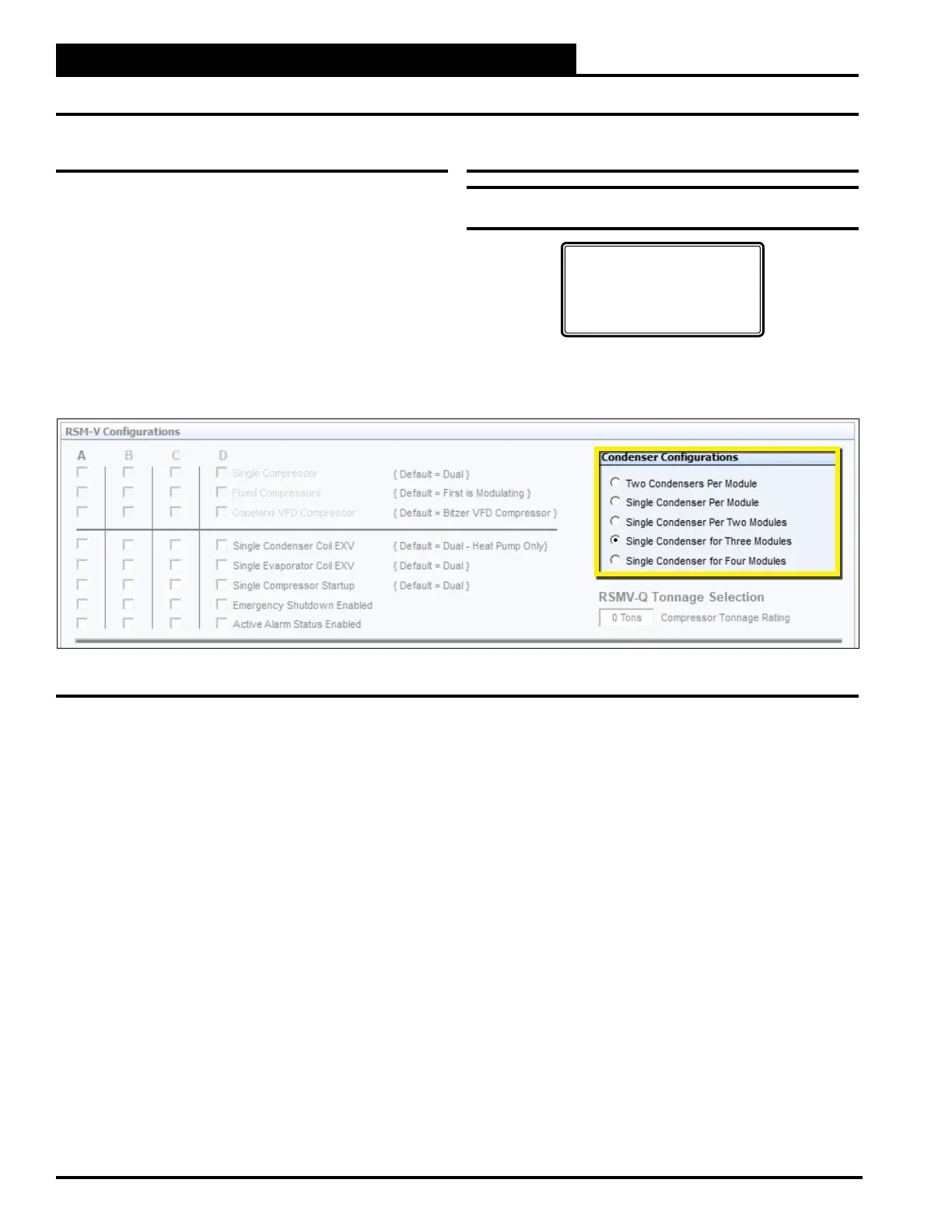

Figure 8: Prism 2 Condenser Conguration - Single Condenser for Three Modules
Modular Service Tool Screen
RSMV Condenser Options
Conguration Screen
RSM#1-4 CONFIGURATION
Condenser Options
1 Cond for 3 RSMVs
USE < or > TO CHANGE
Select the “1 Condenser for 3 RSMVs” option on the above Hand
Held Service Tool Screen.
