RSMZ Technical Guide
SUBCOOL MONITOR LCD SCREENS
Main Screens Map and Subcool Screens

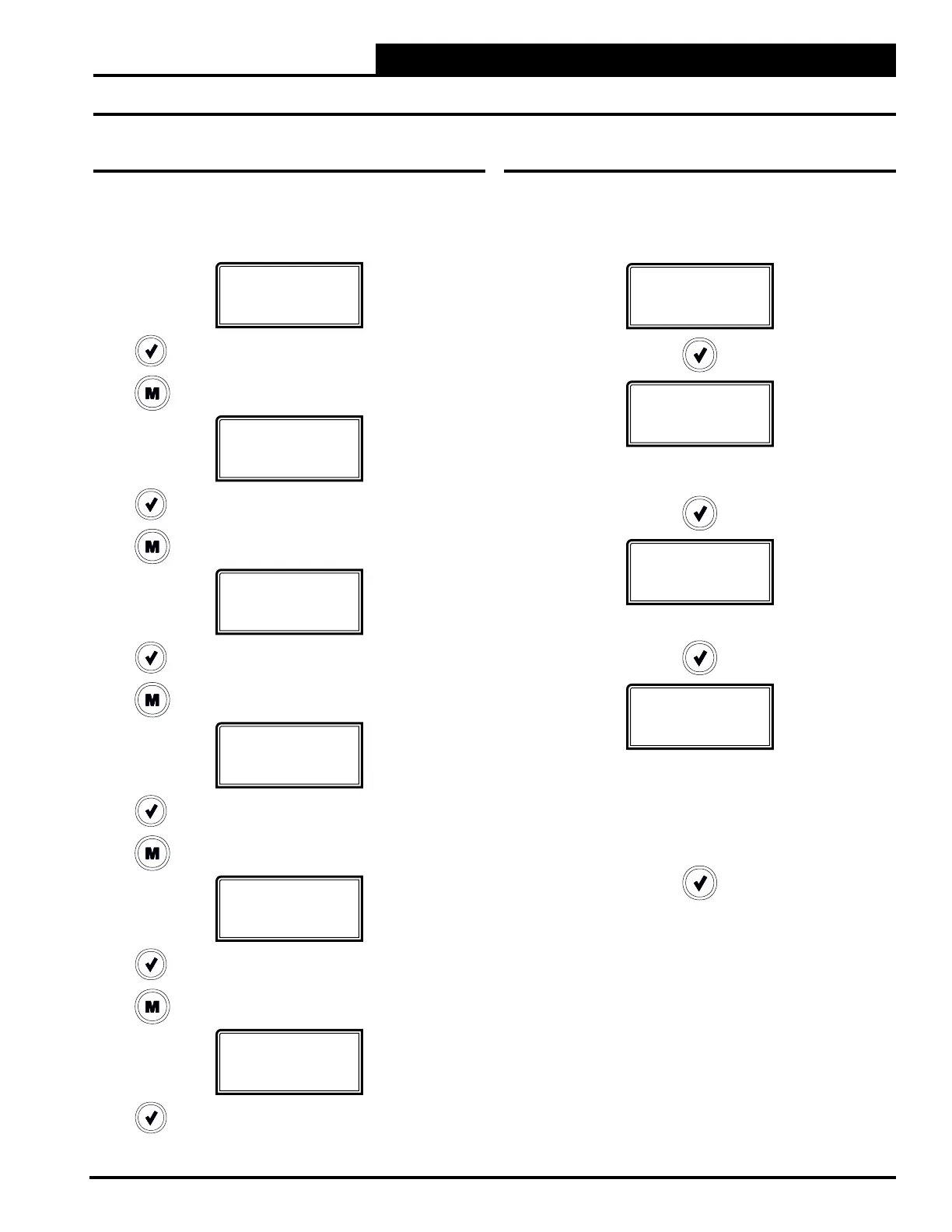

Main Menu Map
Refer to the following map when navigating through the LCD
Main Screens. To scroll through the screens, press the <MENU>
button.
SUBCOOL
1117V100
COM MODE
+###
E-BUS COMMUNICATION DIAGNOSTICS
Number of COMM packets received.
SOFTWARE
1117V100
SOFTWARE VERSION
ADDRESS
# (#)
CURRENT BOARD ADDRESS
If there is only one Subcool module the address needs to be set to 1.
If there are two Subool modules then board address 1 is for the rst
3 circuits and address 2 is for the second 3 circuits
Number in parentheses is E-BUS address.
Module 1’s address is 169, Module 2’s address is 170.
SUBCOOL
1117V100
Press to scroll through SUBCOOL screens
Press to go to CIRCUIT 1 screens.
CIRCUIT1
MENU
Press to scroll through CIRCUIT 1 screens.
Press to go to CIRCUIT 2 screens.
CIRCUIT2
MENU
Press to scroll through CIRCUIT 2 screens.
Press to go to CIRCUIT 3 screens.
CIRCUIT3
MENU
Press to scroll through CIRCUIT 3 screens.
Press to go to ALARMS screens.
ALARMS
Press to scroll through ALARMS screens.
Press to go to SETPOINT screens.
SETPOINT
MENU
Press to scroll through SETPOINT screens.
Subcool Screens
Refer to the following map when navigating through the Subcool
Monitor Module screens. From the SUBCOOL Screen, press
<ENTER> to scroll through the screens.
