RSMZ Technical Guide
APPENDIX C: SYSTEM CONFIGURATION
Module and Condenser Conguration
RSMZ Module Conguration
In Prism 2’s “Conguration 1 Page”, select the radio button for
“Check this box for RSMZ modules”, select the radio button
for “3 Circuit 1 Sub-Cool” or “6 Circuit 2 Sub-Cool”, and then
select the check box for “RSMZ Has Sub-Cooling Module” if
you are using it. See Figure 12, this page.
RSMZ Condenser Conguration
Select Prism 2’s RSMZ module tab selection. In “Single
Condenser Per Module” wiring conguration, the Condenser
Signal is wired to AO2 and the Condenser Relay (RLY3) is
enabled. See Figure 13, this page.
Installed Expansion Boards
Check this box for RSMV modules
Check this box for RSMD modules
Check this box for RSMZ modules
3 Circuit 1 Sub-Cool
6 Circuit 1 Sub-Cool
Pre-Heater Expansion Board
MODGAS-X Board
EM1 Expansion Board
12 Relay Expansion Board
RSMZ Has Sub-Cooling Module

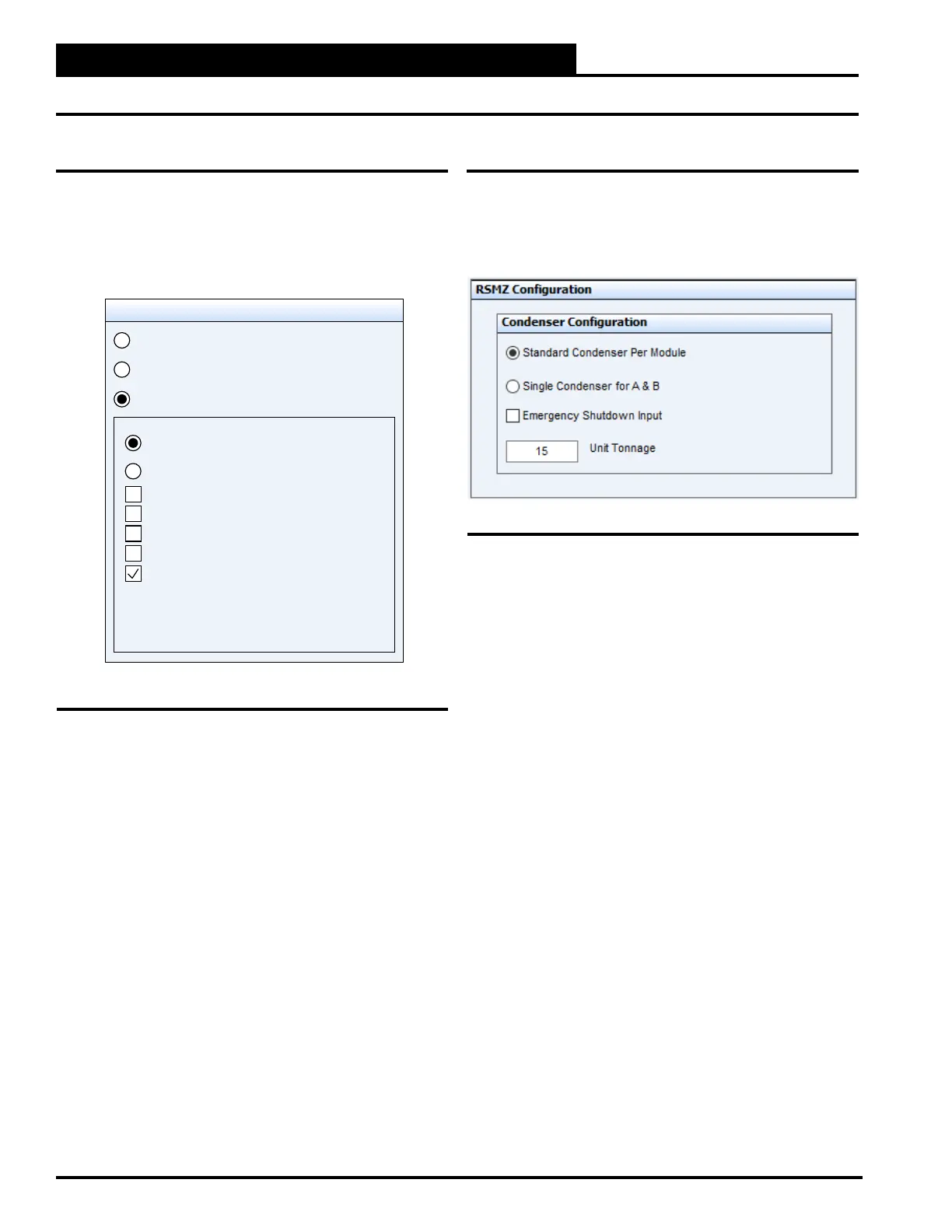

Figure 12: RSMZ Module Conguration
Figure 13: RSMZ Prism 2 Condenser Conguration
