RSMZ Technical Guide
WIRING
RSMZ Inputs Wiring - Modules 1, 2, 4, and 5

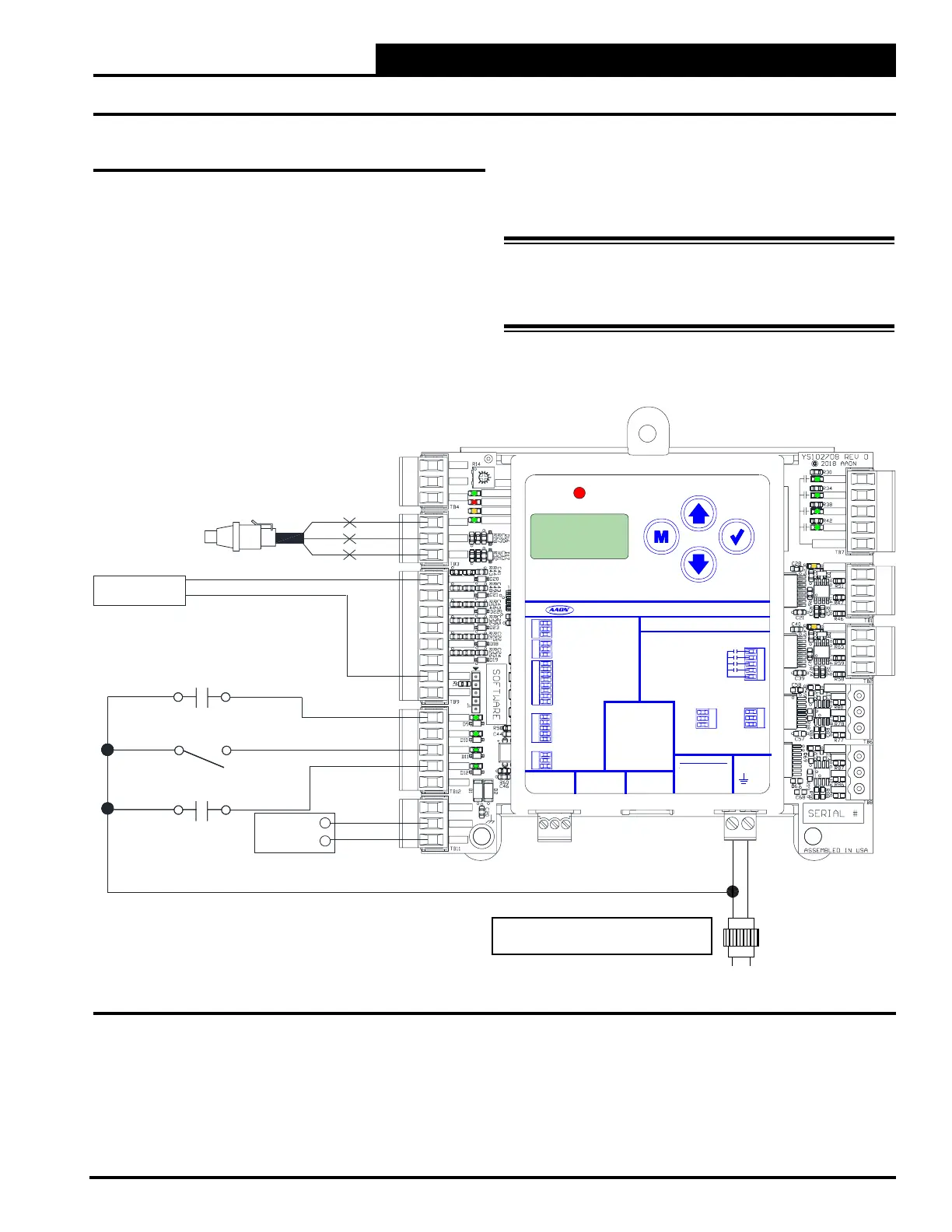

Figure 2: RSMZ Inputs Wiring - Modules 1, 2, 4, and 5
18-30
VAC
GND
Line Voltage
BK
RD
WH
COM
+
Head Pressure
Transducer
Discharge
Temperature
Sensor
Compressor 1 Status
Oil Level Switch
Emergency Shutdown
(configurable, only for Module 1)
Condenser Fan
Size transformer for correct total load.
RSMZ = 18 VA
ALARM
UP
DOWN
ENTERMENU
AAON P/N: ASM02351
+24 VAC
GND
RELAY CONTACT RATING IS
1 AMP MAX @ 24 VAC
COND FAN ENABLE
COMP 1 ENABLE
COMP 2 ENABLE
ANALOG OUTPUTS
COMMON
RELAY OUTPUTS
LABEL P/N:
G050220
COND FAN VFD
GND
24 VAC POWER ONLY
WARNING! POLARITY
MUST BE OBSERVED
OR THE CONTROLLER
WILL BE DAMAGED
REHEAT ENABLE
+5 V
DISCHARGE TEMP
COMP 2 STATUS
SP
GND
EMER SHDN
GND
NOT USED
GND
BINARY INPUTS
MODBUS
RSMZ CONTROLLER
www.aaon.com
HEAD
PRESSURE
SENSOR
DUAL
E-BUS
EXP VALV E1
+5 V
HP
GND
NOT USED
NOT USED
GND
NOT USED
EXP VALV E2
R+
T-
SH
SHD
T-
R+
SHD
T-
R+
EXP VALV E3
NOT
INSTALLED
EXP VALV E4
NOT
INSTALLED
EACH EXP VALVE IS INDIVIDUALLY
ELECTRICALLYISOLATED
OIL LEVEL SWITCH
COMP 1 STATUS
NOT USED
NOT USED
+5V
SP
GND
CONT
+5V
GND
HP
STATUS
ALARM
COMM
POWER
TEMP1TEMP1
TEMP2
TEMP4
TEMP3
TEMP5
TEMP6
GND
GND
BIN1
BIN2
BIN3
BIN4
GND
AOUT1
AOUT2
GND
RLY2
RLY1
RLY4
RLY3
COMMON
EXV-2
R+
SHD
T-
EXV-1
R+
SHD
T-
EXV-4
R+
SHD
T-
EXV-3
R+
SHD
T-
RSMZ Input Wiring
The RSMZ monitors and controls one refrigeration circuit of the
HVAC unit. The RSMZ is used on RZ units and on RN-E units
with Danfoss compressors. The module is designed for R410-A
refrigerant.
The RSMZ is connected to the AAON unit controller. Three or
six RSMZ Modules can be connected, depending on the size of
the system. There are two E-BUS Expansion Ports which allow
the use of communicating sensors and E-BUS Modules. There
is a MODBUS terminal block which allows wiring to the Reheat
Expansion Module or VFD Compressor.
The RSMZ must be connected to an 18-30 VAC power source.
When wiring the RSMZ, its relay outputs must be wired as wet
contacts (connected to 24 VAC). See Figure 2, this page for
RSMZ input wiring for modules 1, 2, 4, and 5.
WARNING: Observe Polarity! All boards must be wired
with GND-to-GND and 24 VAC-to-24
VAC. Failure to observe polarity will result
in damage to one or more of the boards.
