Interfaces and Connectible Terminals COM Port
52
5.5.2 Service PC
The Ethernet interface can also be used to connect a service PC using a crossed
Ethernet cable.
5.6 COM Port
The COM port (V.24-1 interface) on the MC+1-3 central control module can be
used to connect a PC for the purpose of transmitting connection data. Connection
data can be analysed in detail with the connection data recording program Open-
Count.
Please note: The COM port cable must not be longer than 3 metres.
The V.24 interface uses a transmission rate of 19.2 kbits/s.
Note: A special 10-pin cable is required for connecting ap-
paratus to the V.24-1 interface. Contact your DeTeWe distri-
butor or local retailer if you want to purchase one of these
cables.

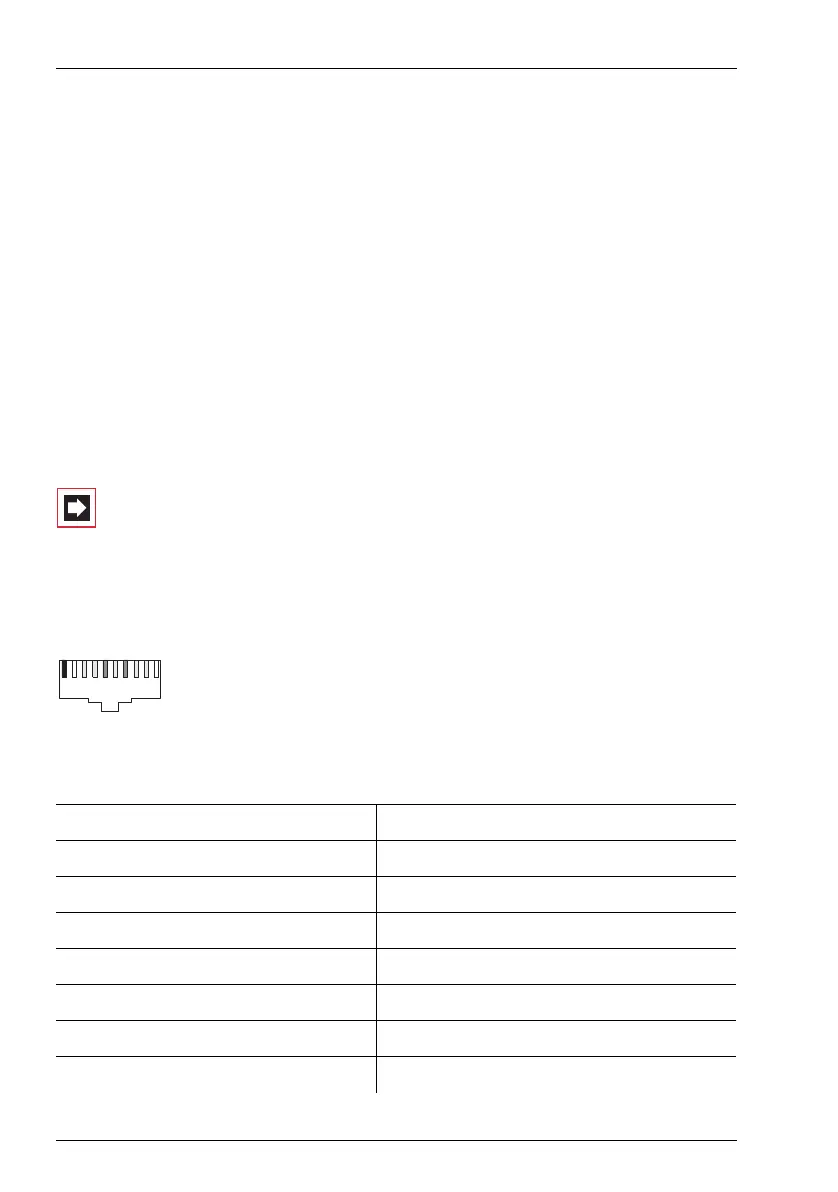

Pin Assignment
V.24 interface pin assignment
The following Table explains the V.24 interface pin assignment.
Pin Number Assignment
1 GND (EED)
2Not used
3DTR
4CTS
5TXD
6RTS
7RXD
12345678
9
10
