ABB A165-L34 - Dismantling the Nozzle Ring (≤ A175-L); Fig. 41: Dismantling the Nozzle Ring (A175-L and Smaller)

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.11 Dismantling the nozzle ring (≤
A175-L)
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020
8.11 Dismantling the nozzle ring (
≤
A175-L)

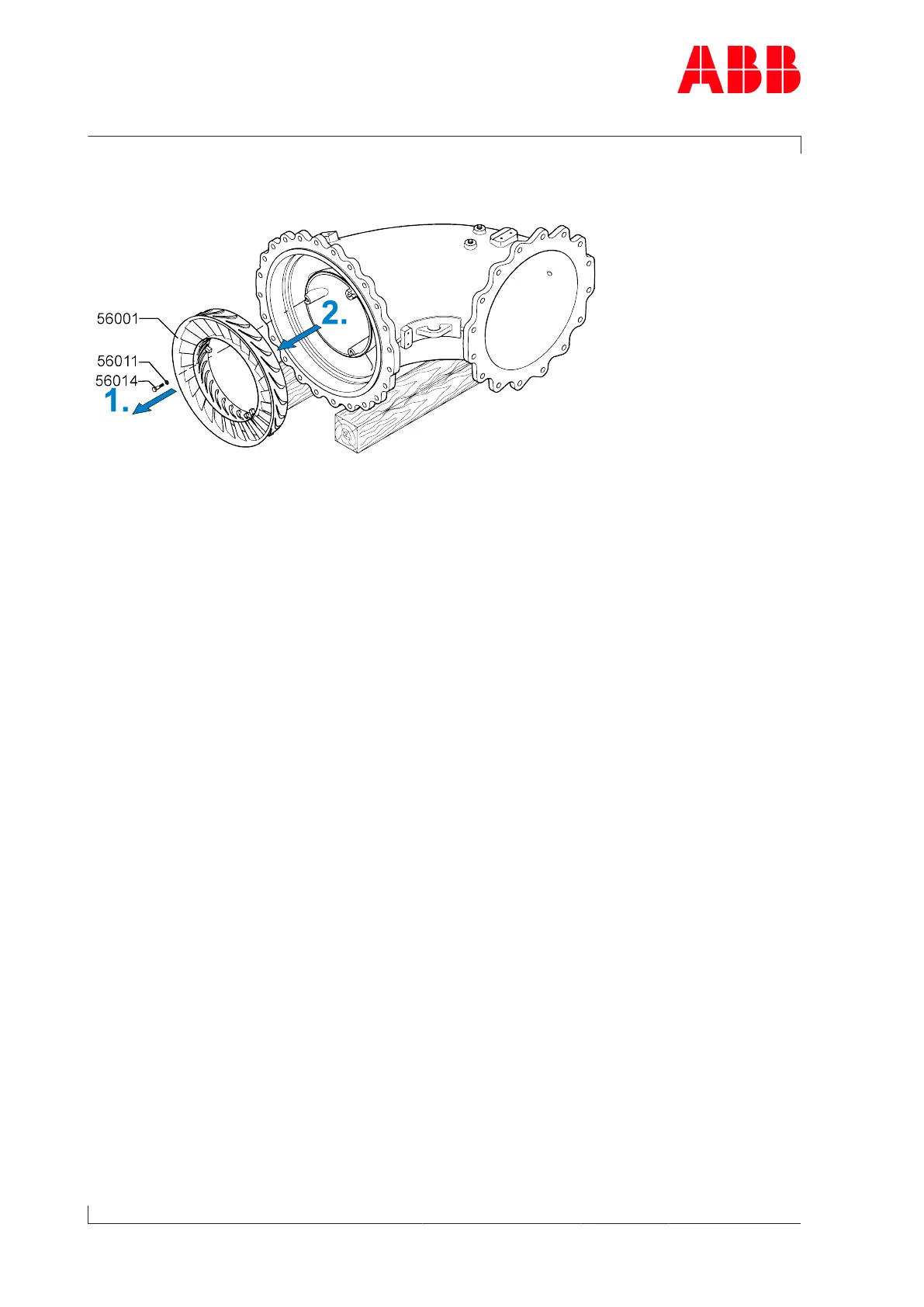

Fig.41: Dismantling the nozzle ring (A175-L and smaller)
1. Loosen screws(56014) and remove with washers(56011).
2. Remove and put down nozzle ring(56001).
Page 70 / 110
