ABB A165-L34 - Fig. 25: Fitting the Filter Silencer Casing; Fig. 26: Fitting the Filter Silencer Casing

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.4 Disassembly and assembly of the
filter silencer casing
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020

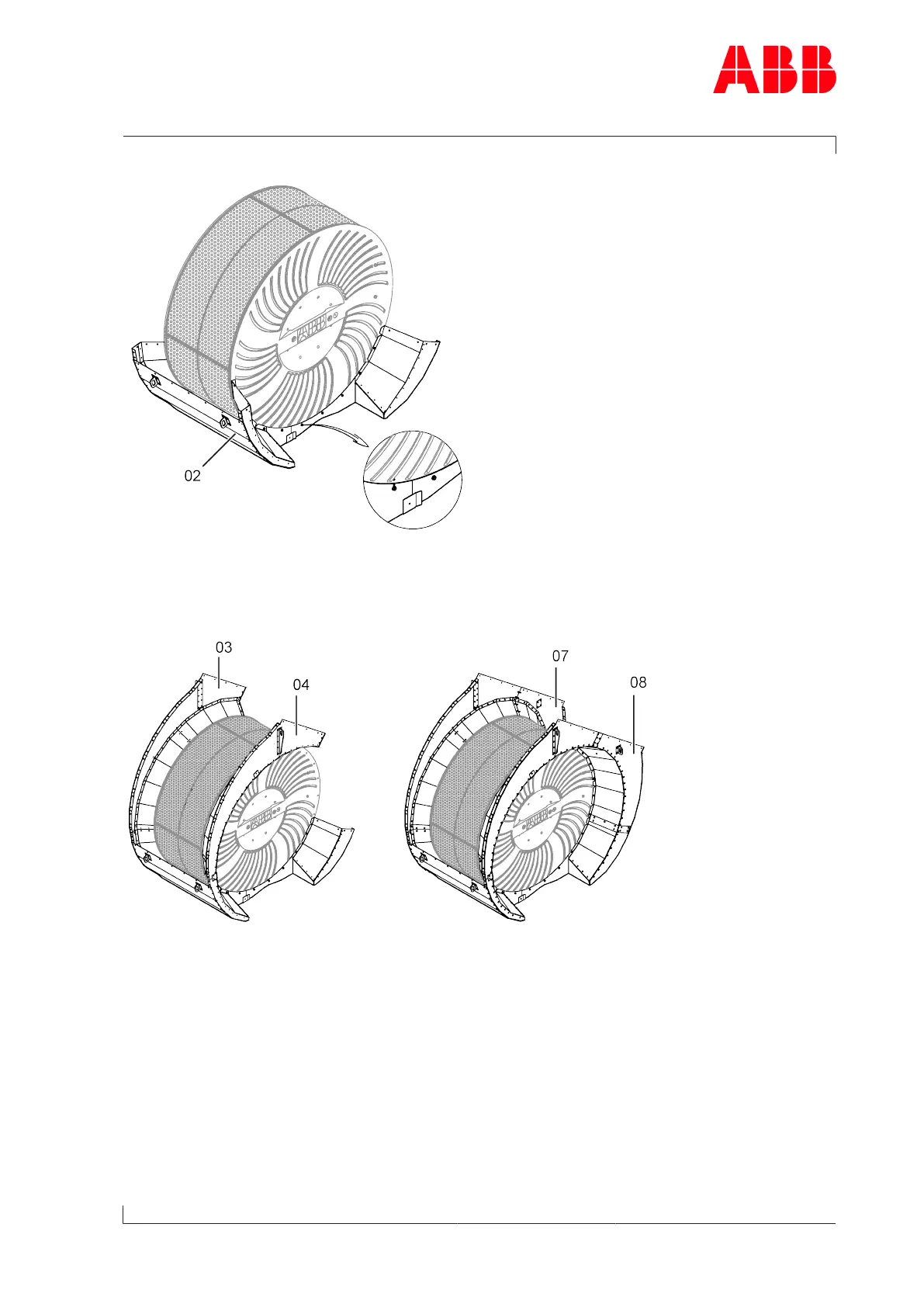

Fig.25: Fitting the filter silencer casing
u Fit the bottom part(02) with the screws on the filter silencer.
Fig.26: Fitting the filter silencer casing
u Fit the side parts(03) and (04) with the screws on the filter silencer and on the bottom
part.
u Fit the side parts(07) and (08) with the screws on the filter silencer, on the bottom part,
and on the side parts(03, 04).
