Operation Manual / 4 Product description / A100-L
2 Removal and installation / 2.2 Removing the turbocharger
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020

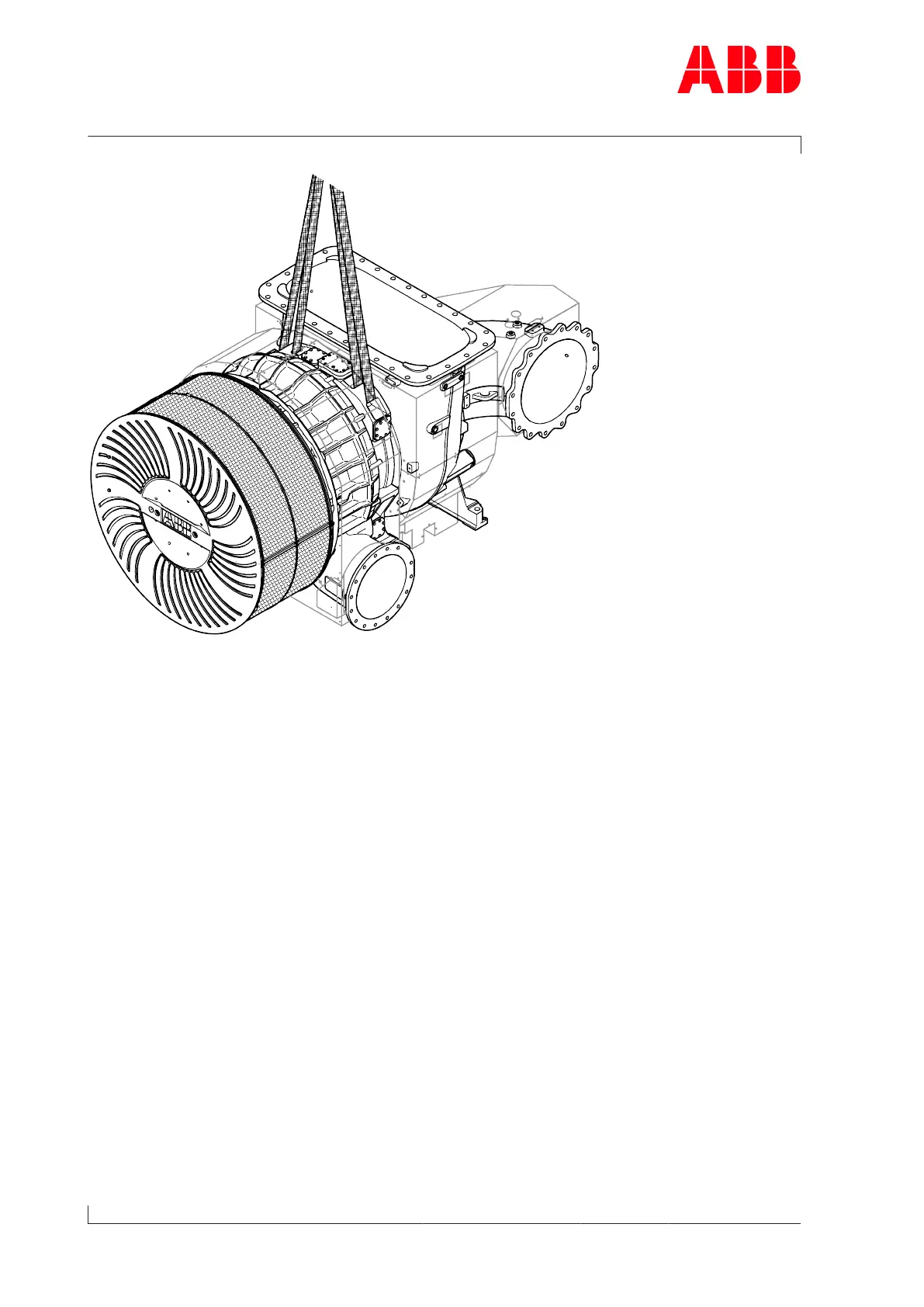

Fig.4: Fitting the lifting gear
u Loosen fixing screws on compressor-end and turbine-end foot.
u Lift turbocharger from engine and put down in a suitable location.
u Cover oil connections.
Page 10 / 110
