ABB A165-L34 - Fig. 31: Dismantling the Filter Silencer

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.5 Dismantling the filter silencer
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020
8.5.3 Dismantling the filter silencer (cast)
If the turbocharger is also fitted with a noise package, chapter Dismantling the filter silencer
with noise package →62 must be observed.
u Dismantle the insulation if necessary.

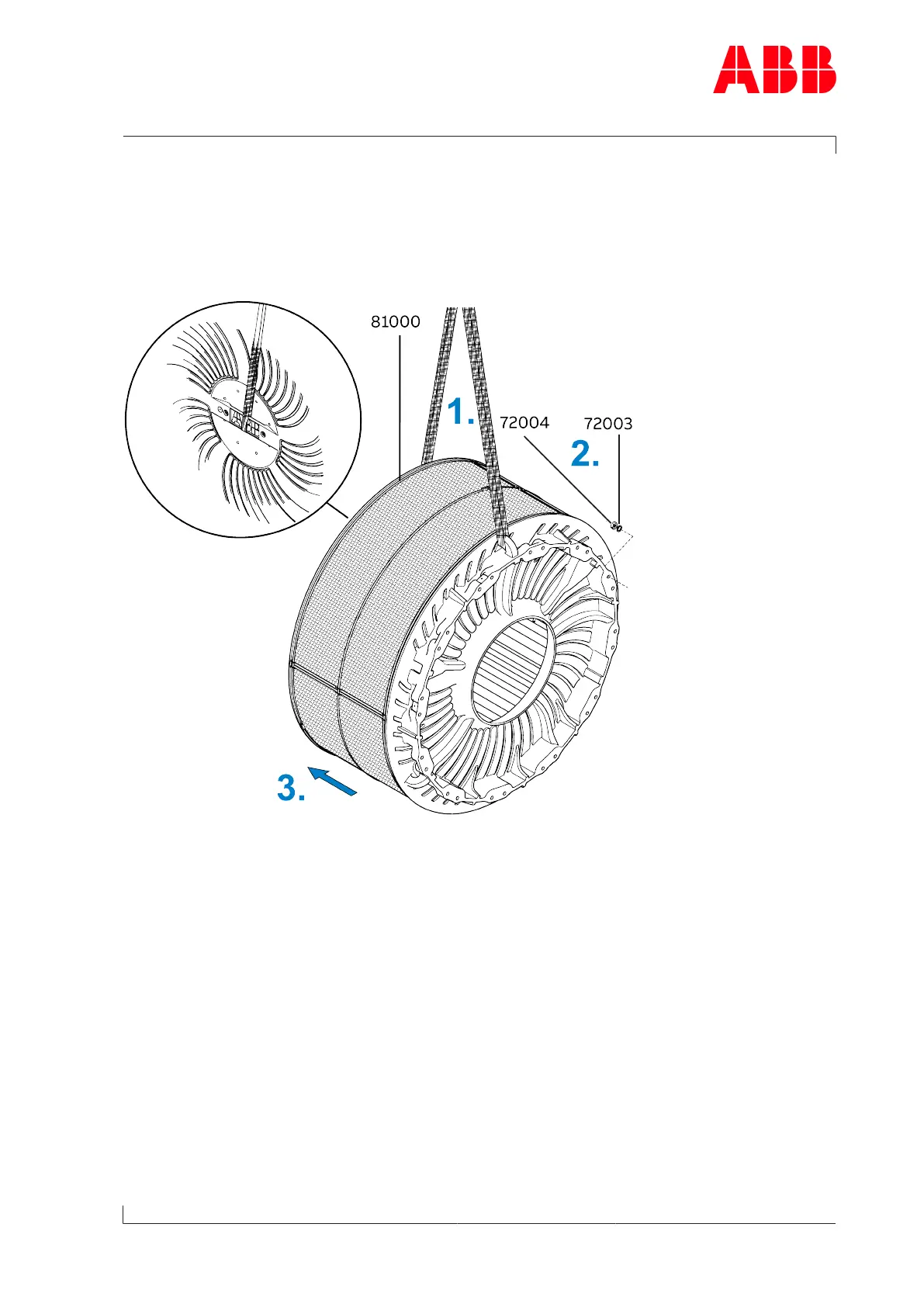

Fig.31: Dismantling the filter silencer
1. Attach the lifting gear to the front lug and rear eyelet of the filter silencer (81000).
2. Loosen nuts (72004) and remove with washers (72003).
3. Remove and put down filter silencer.
