ABB A165-L34 - Fig. 37: Dismantling the Diffuser

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.7 Dismantling wall insert and diffuser
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020

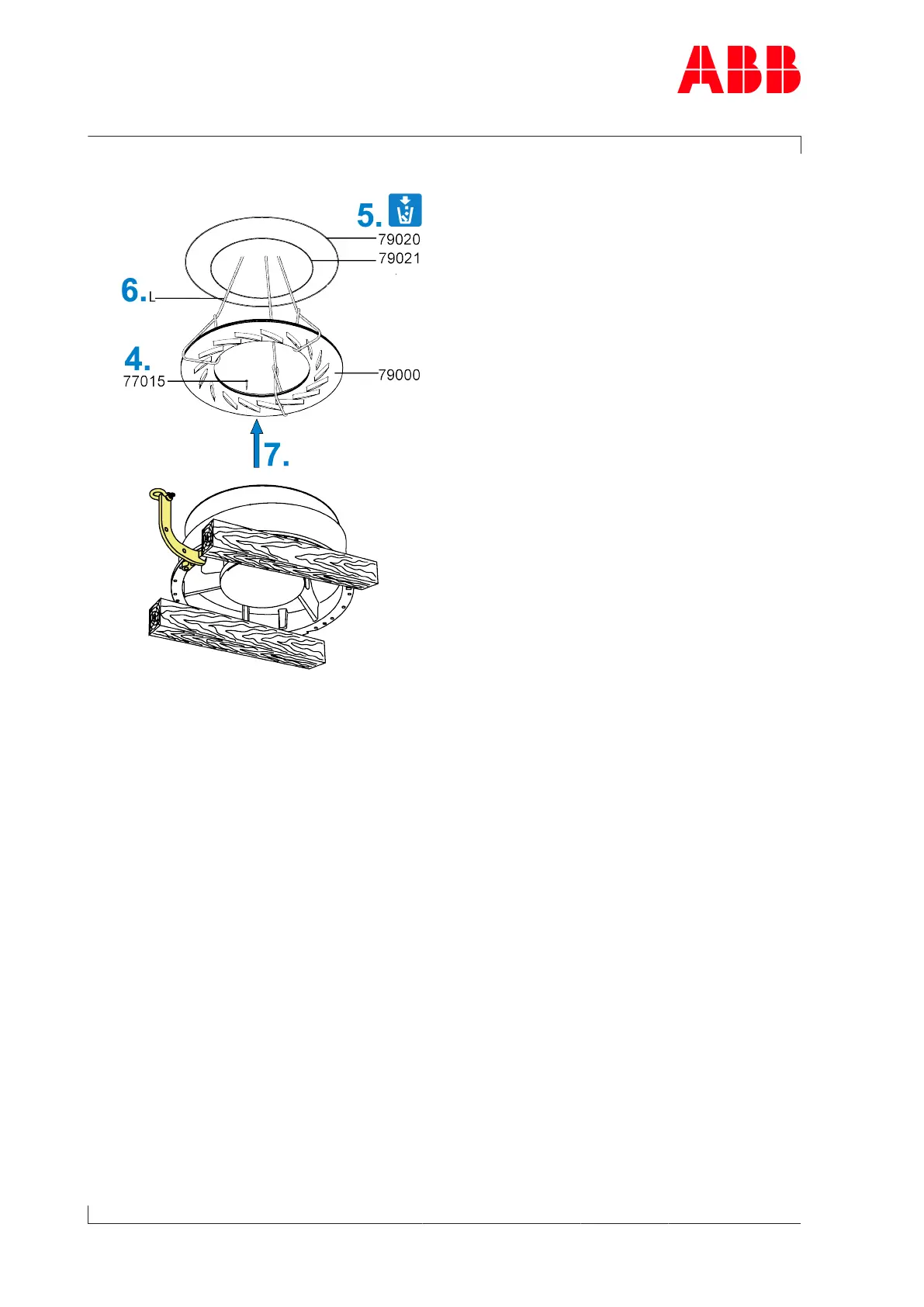

Fig.37: Dismantling the diffuser
4. Loosen and remove screws(77015).
5. Remove O-rings(79020, 79021).
6. Attach lifting gear (L) to the diffuser(79000).
7. Remove and put down diffuser.
