u Fit the circumferential part(06) with the screws.
u Fit the circumferential part(09) with the screws.
Screws for fastening the individual parts to
the filter silencer
Screws for fastening the individual parts
M10
30Nm
M8
25Nm
Table29: Tightening torques (filter silencer screws)
u Tighten all screws of the bottom parts(01) and (02).
u Tighten all screws of the side parts(03, 04, 07, 08) and the flanges(10, 11).
u Tighten all screws of the circumferential parts(05, 06, 09).
Bellows

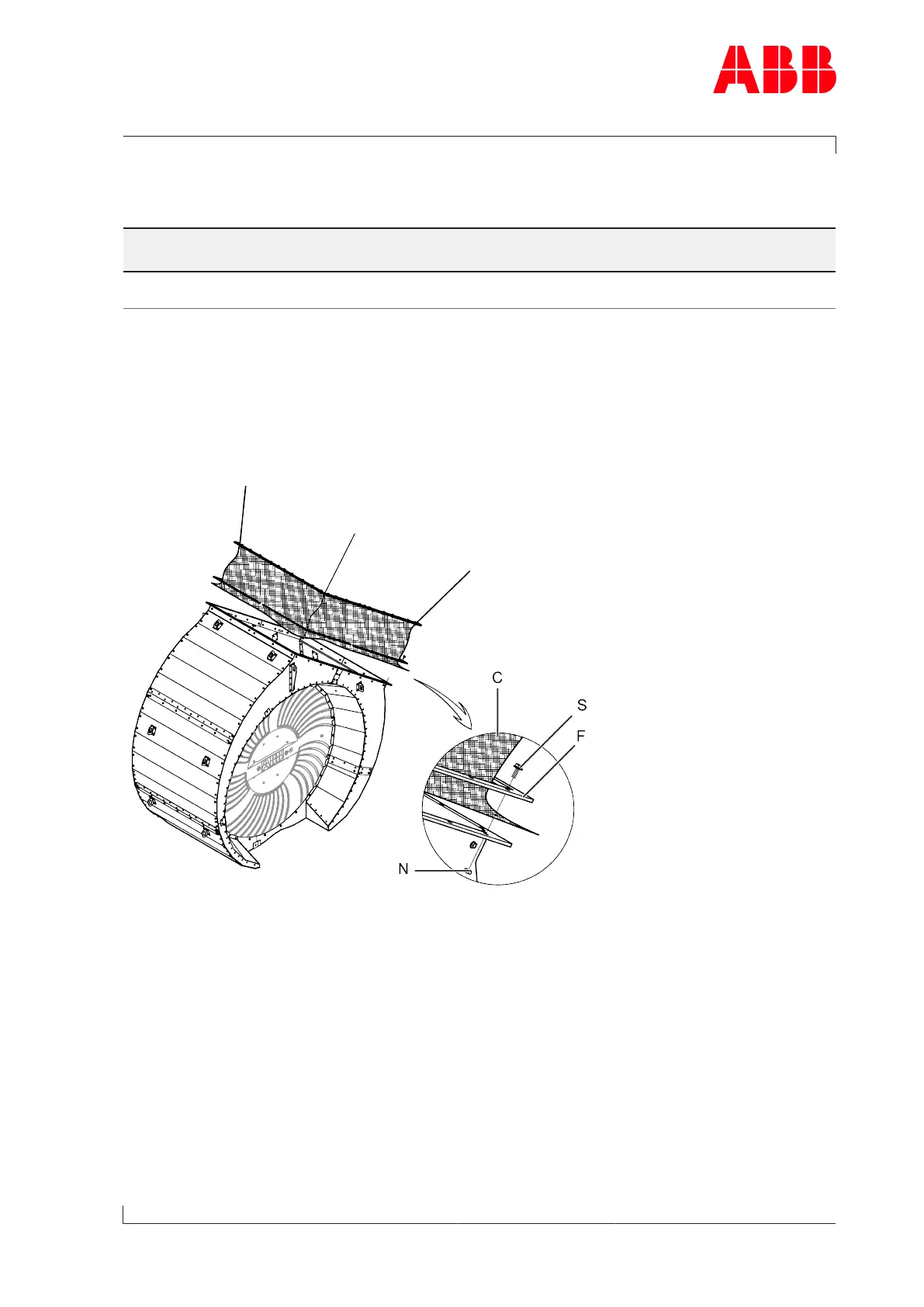

Fig.29: Fitting the bellows
u Fit bellows(C) with frame(F), screws(S) and nuts(N) on the filter silencer casing.
