ABB A165-L34 - Dismantling the Nozzle Ring (≥ A180-L); Fig. 43: Fitting the Nozzle Ring Holder

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.13 Dismantling the nozzle ring (≥
A180-L)
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020
8.13 Dismantling the nozzle ring (
≥
A180-L)

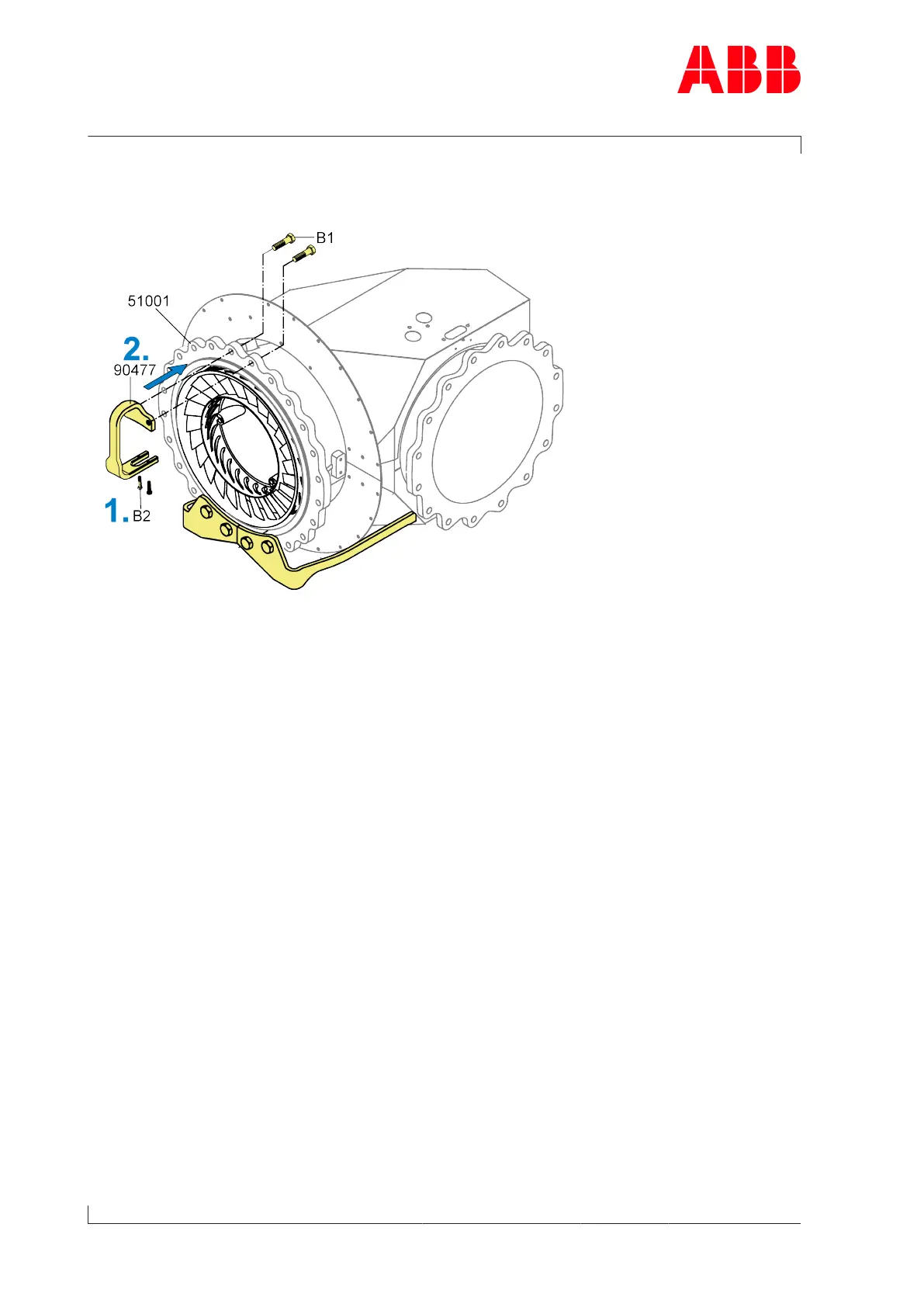

Fig.43: Fitting the nozzle ring holder
1. Remove screws (B
2
).
2. Fit the nozzle ring holder (90477) with screws (B
1
) at the top of the flange of the gas inlet
casing (51001).
