8.20 Fitting the diffuser

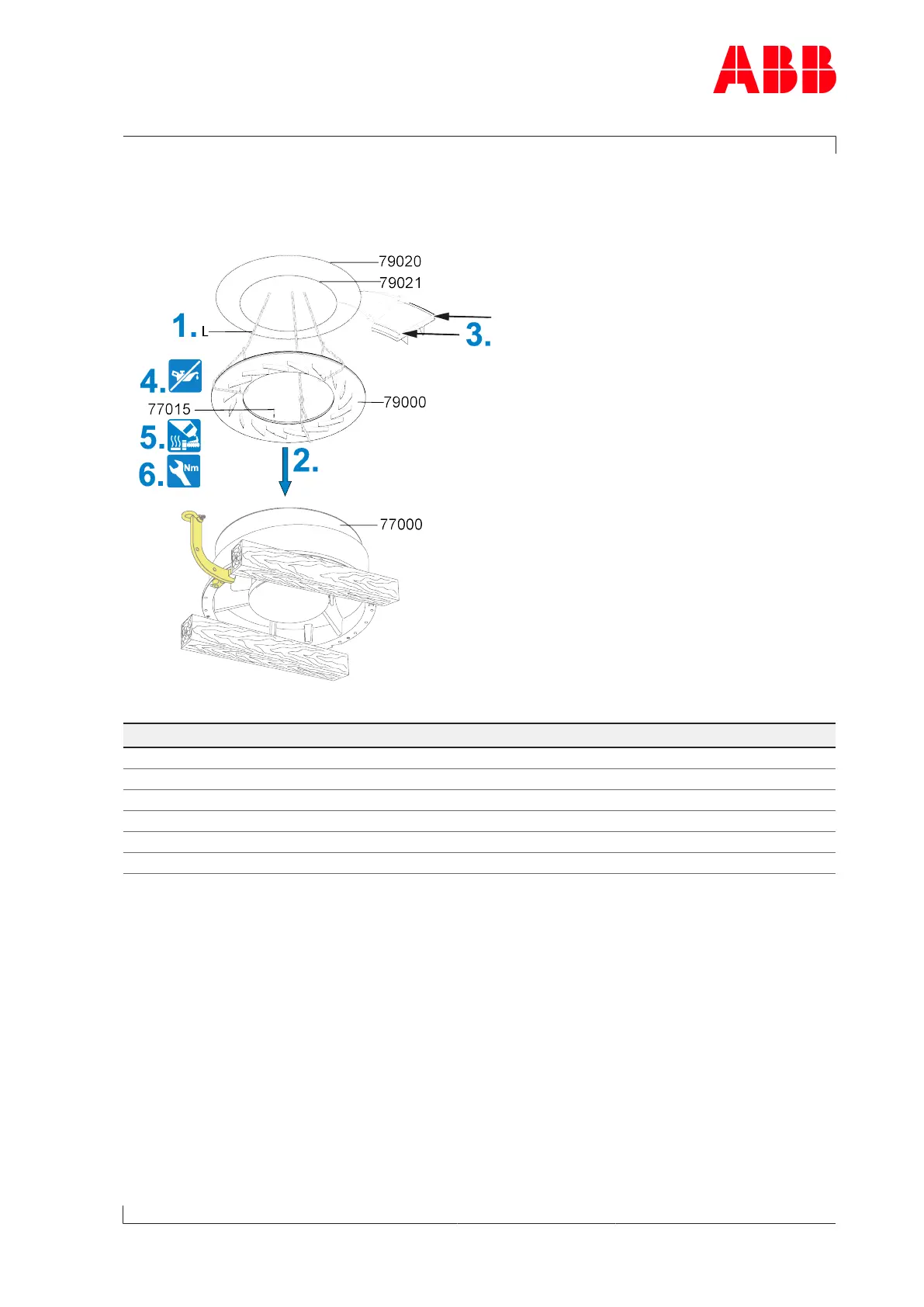

Fig.53: Fitting the diffuser
Product Size Tightening torque [Nm]
A165-L M5 6
A170-L M6 10
A175-L M8 25
A180-L M8 25
A185-L M10 45
A190-L M10 45
Table38: Tightening torque (77015)
1. Attach lifting gear (L) to the diffuser(79000).
2. Carefully place the diffuser on the wall insert(77000), then remove lifting gear.
3. Fit new O-rings(79020, 79021) on the diffuser.
4. Degrease screws(77015) and threaded holes in wall insert.
5. Coat threads of the screws with Loctite® 542.
6. Fit screws.
