ABB A165-L34 - Fitting the Nozzle Ring (≤ A175-L); Fig. 46: Fitting the Nozzle Ring (A175-L and Smaller); Table 33: Tightening Torque (56014)

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.14 Fitting the nozzle ring (≤ A175-L)
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020
8.14 Fitting the nozzle ring (
≤
A175-L)
u Coat the screw threads with high-temperature grease.

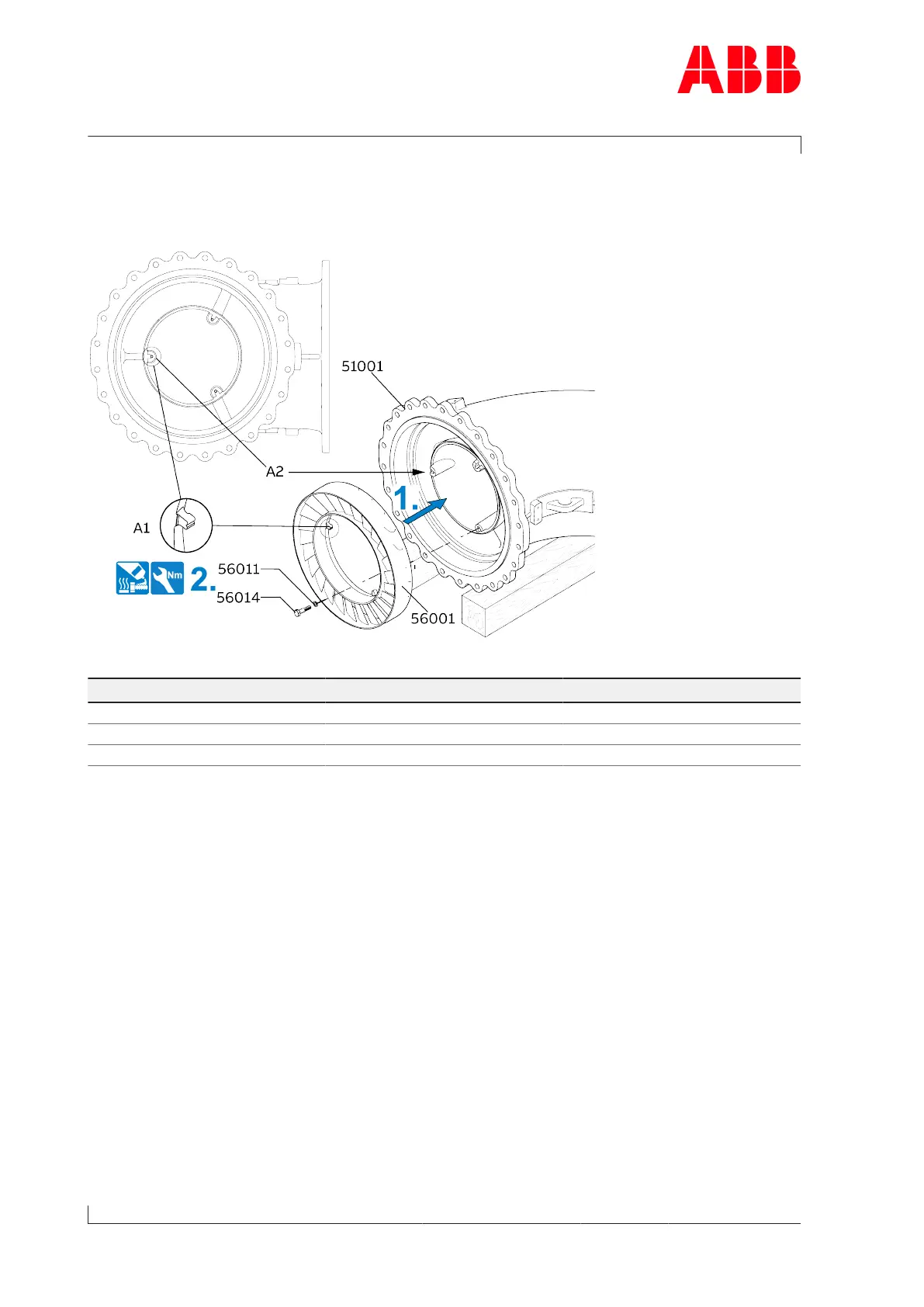

Fig.46: Fitting the nozzle ring (A175-L and smaller)
Product Size Tightening torque [Nm]
A165-L M10 35
A170-L M10 35
A175-L M10 35
Table33: Tightening torque (56014)
1. Align the notch (A
1
) with the flange connection (A
2
) and slide the nozzle ring(56001) into
the gas inlet casing (51001).
2. Fit screws (56014) with high-temperature grease and with washers (56011).
