ABB A165-L34 - Fig. 27: Fitting the Filter Silencer Casing; Fig. 28: Fitting the Filter Silencer Casing

Operation Manual / 4 Product description / A100-L
8 Disassembly and assembly / 8.4 Disassembly and assembly of the
filter silencer casing
© Copyright 2020 ABB. All rights reserved. HZTL4034_EN Rev.R October 2020

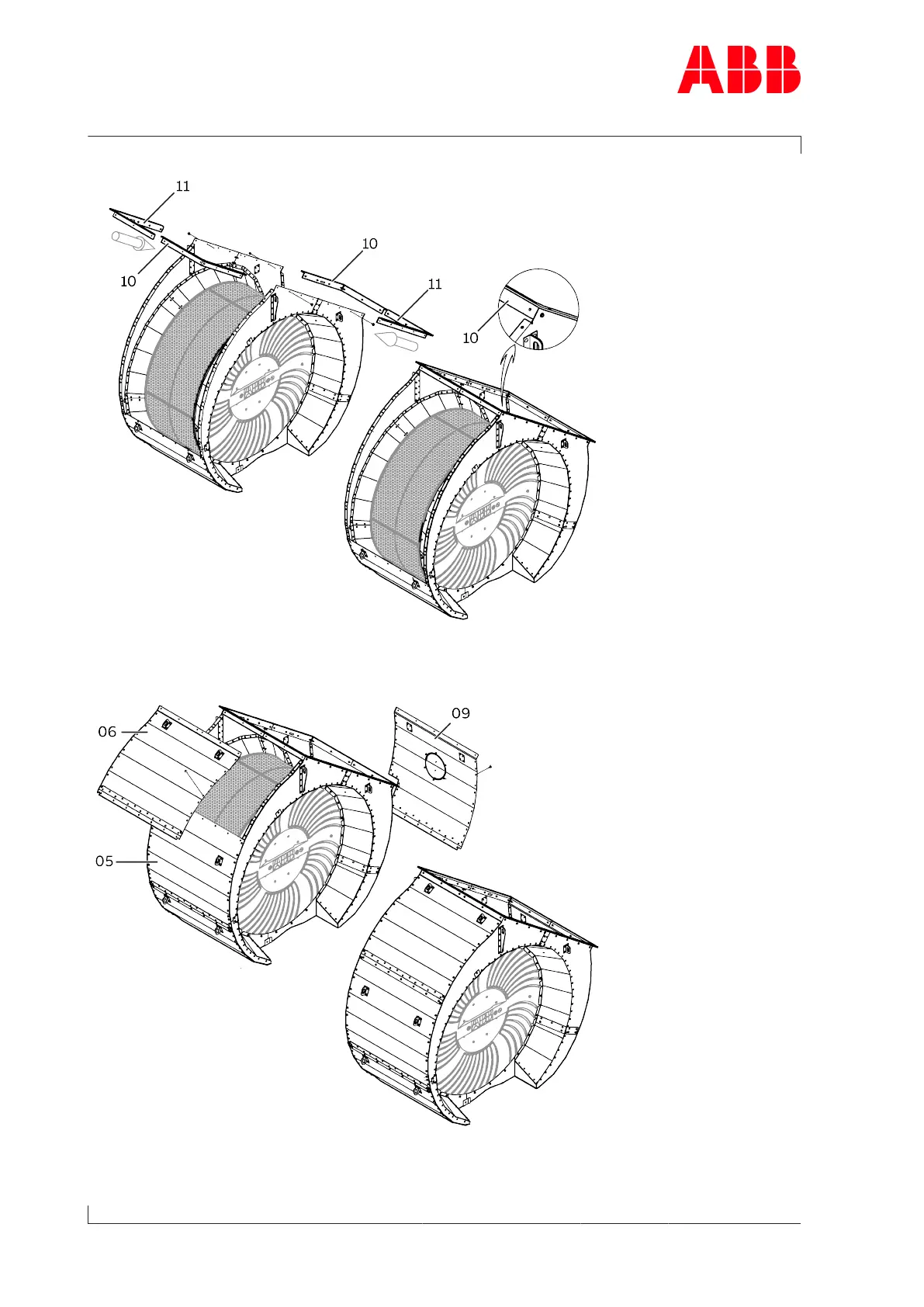

Fig.27: Fitting the filter silencer casing
u Insert the flanges(10) and (11) laterally between the side parts and fit the screws.
Fig.28: Fitting the filter silencer casing
u Fit the circumferential part(05) with the screws.
