￭ RJ-45 connector
The RJ-45 connector is used to electrically connect the control panel to the drive. Mechanical
connection is achieved with the clip on the top.

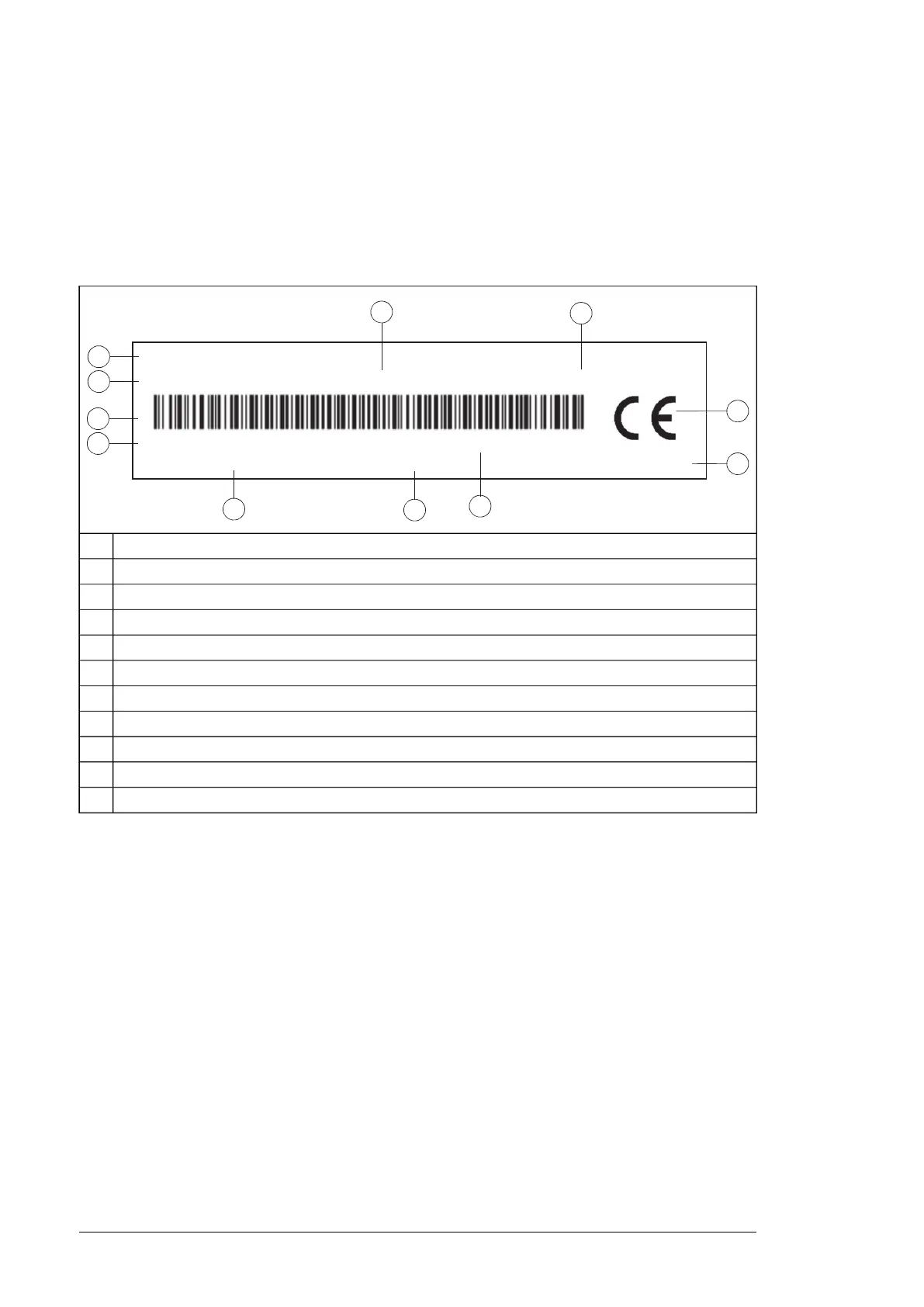

￭ Type code label on the panel
The type code label on the panel contains revision information. See an example label below.
ABB Oy, Hiomotie 13, 00380 Helsinki, Finland
M/N: ACS-AP-W CODE: 3AXD50000025964 S/N: B1250121LL
3AXD50000025964B1250121LL Made in Country
FCC ID: 2AFNGAPWSERIES IC: 20555-APWSERIES SW: v5.95
2
3
4
10
5
1
6
11
8
7
9
ABB Oy1
Type code2
MRP code3
Serial number4
CE marking5
SW version6
Bar code7
Bar code in readable text8
FCC ID number9
IC CANADA number10
Manufactured in country11
Note: FCC ID and IC CANADA numbers are applicable only for ACS-AP-W and ACH-AP-W
wireless control panels.
￭ Type code label on the panel package
The type code label on the panel package contains revision information. See an example
below.
24 Control panel overview
