Functions in the main Menu 39
Assistants
In the Assistants menu, you can launch an assistant, which is a sequence of steps
that help you to complete a task, such as setting up the control panel to use with the
drive and the motor, or fixing a fault. You can also generate a QR code, which is an
optical code containing information of the drive. The code can be read with ABB
application and mobile device.
 Launching an assistant
1. Use and to highlight the desired
assistant.
2. Press (Select).
3. Follow the instructions on the screen to
complete the task defined by the assistant:
• Use and to select settings.
• To edit a setting, press (Edit or
Select).
• Use and to move between the pages of the assistant. The progress bar
on the upper right corner of the screen indicates the progress.
• To exit the assistant, press (Exit).

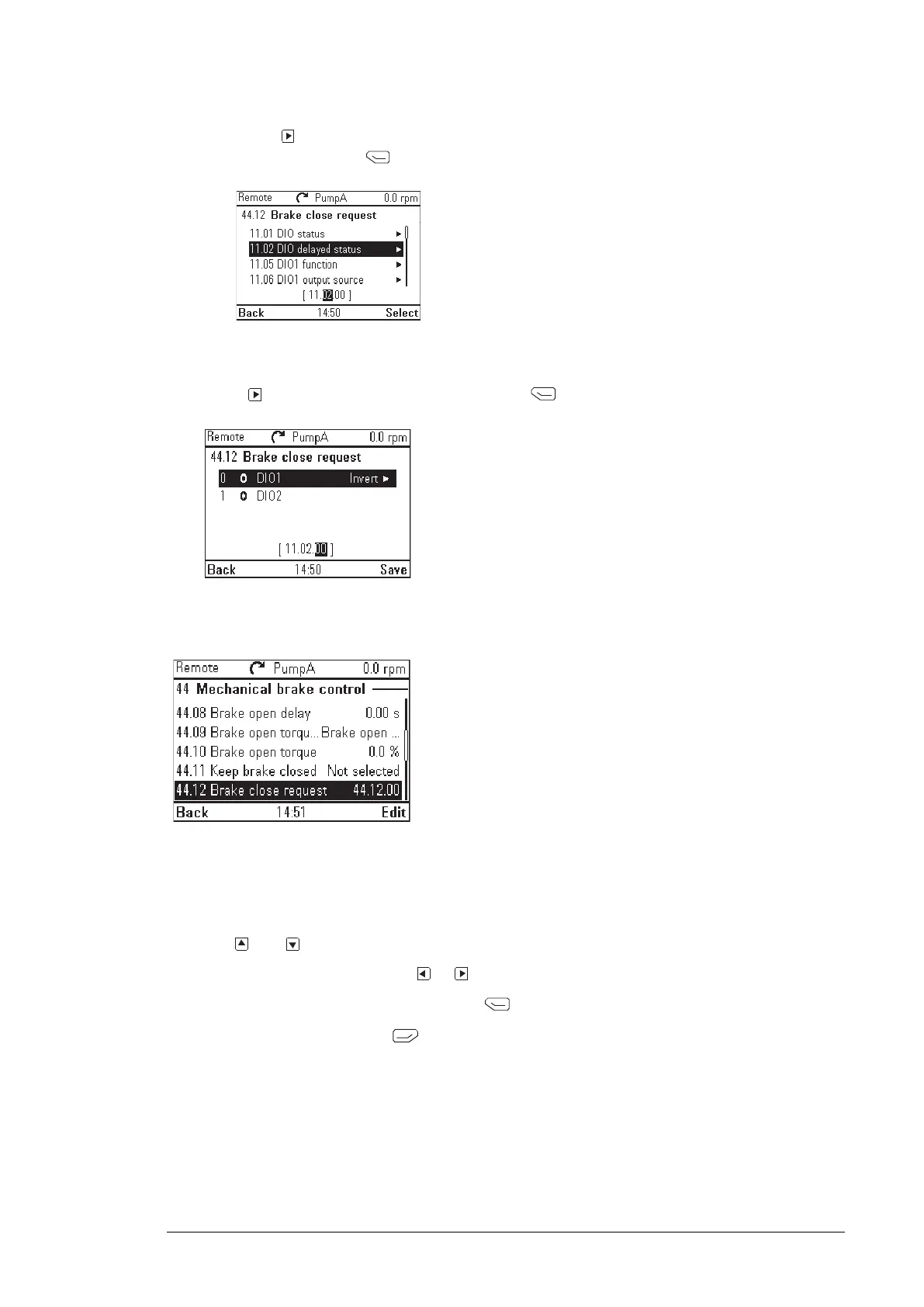

Most settings accessed in assistant steps can also be accessed through the main
Menu or the Parameters menu, but the steps the assistants are more user-friendly.
Note: If you used the Assistants menu, complete all steps to save the changes,
otherwise the changes are canceled.
 Generating a QR code
1. In the Assistants menu, select QR code using and and press
(Select).
2. Press (Continue).
