FunctionSub-menu
Set date and time, and select their display settings and whether the control panel auto-
matically adjusts the time for daylight savings changes. The time and date display setting
determines how time stamps are formatted.
Date & time
Customize editable user interface texts, such as the drive name.Edit texts
Set backlight power save on/off and adjust display contrast and brightness.Display settings

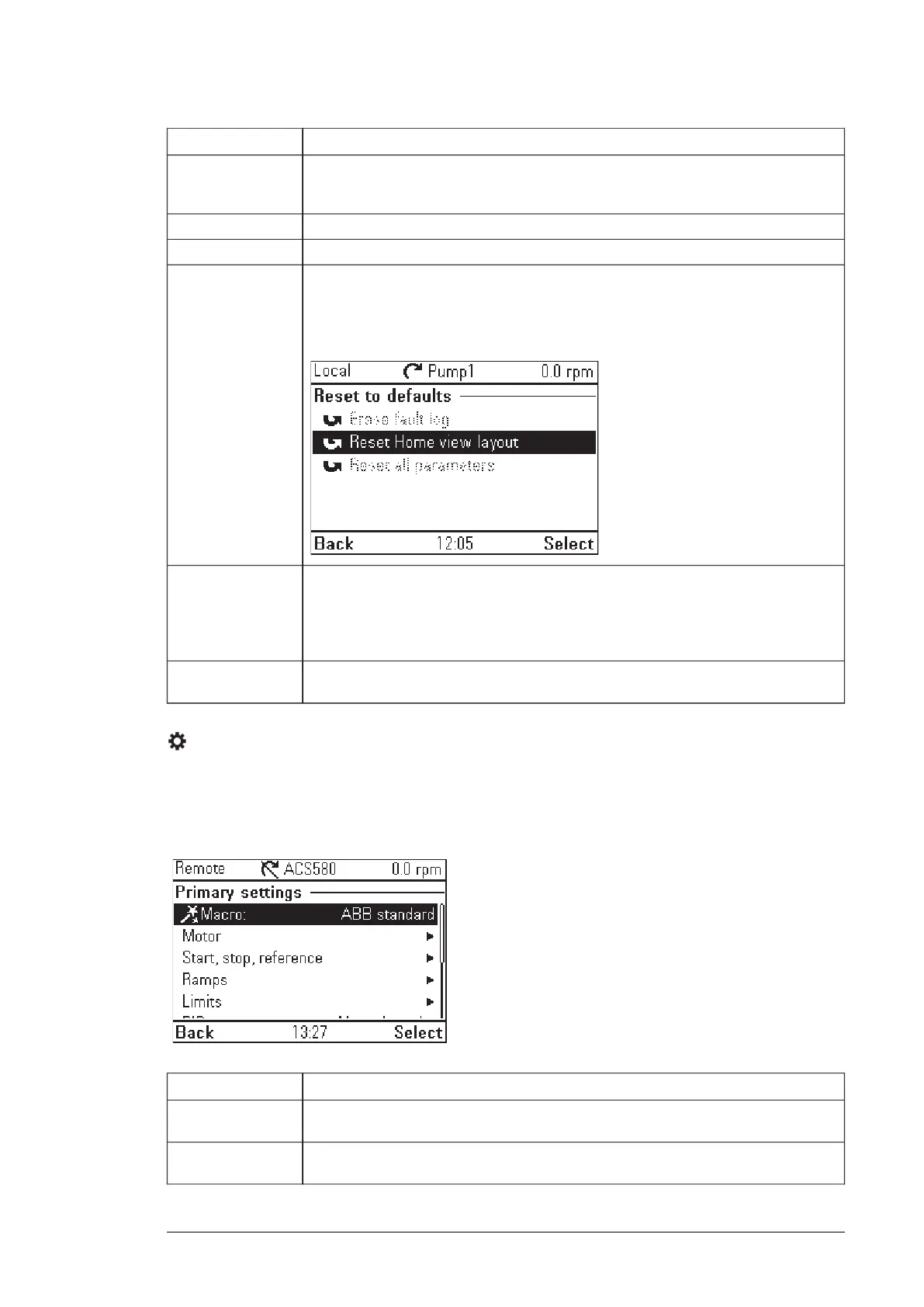

Reset settings to their default values.Reset to defaults
Erase fault log: This functionality is available in a future release.
Reset Home view layout: Default Home view settings are restored.
Reset all parameters: This functionality is available in a future release.
Show or hide the numeric IDs of:Show in lists
• parameters and groups
• option list items
• bits
• devices in Options → Select drive.
Enter pass codes into this parameter to activate further access levels (for example addi-
tional parameters).
Pass code
Primary settings
The Primary settings menu has the following sub-menus.
Note: The contents displayed may vary based on the drive/device to which the panel is
connected. The menu shown is only an example.
FunctionSub-menu
Set up drive control and reference source by selecting from a set of predefined wiring
configurations.
Macro
Adjust drive related settings, such as control location, run permissions, ramps, limits,
constants speeds, flying starts references.
Drive
Functions in the main Menu 49
