34 Functions in the main Menu

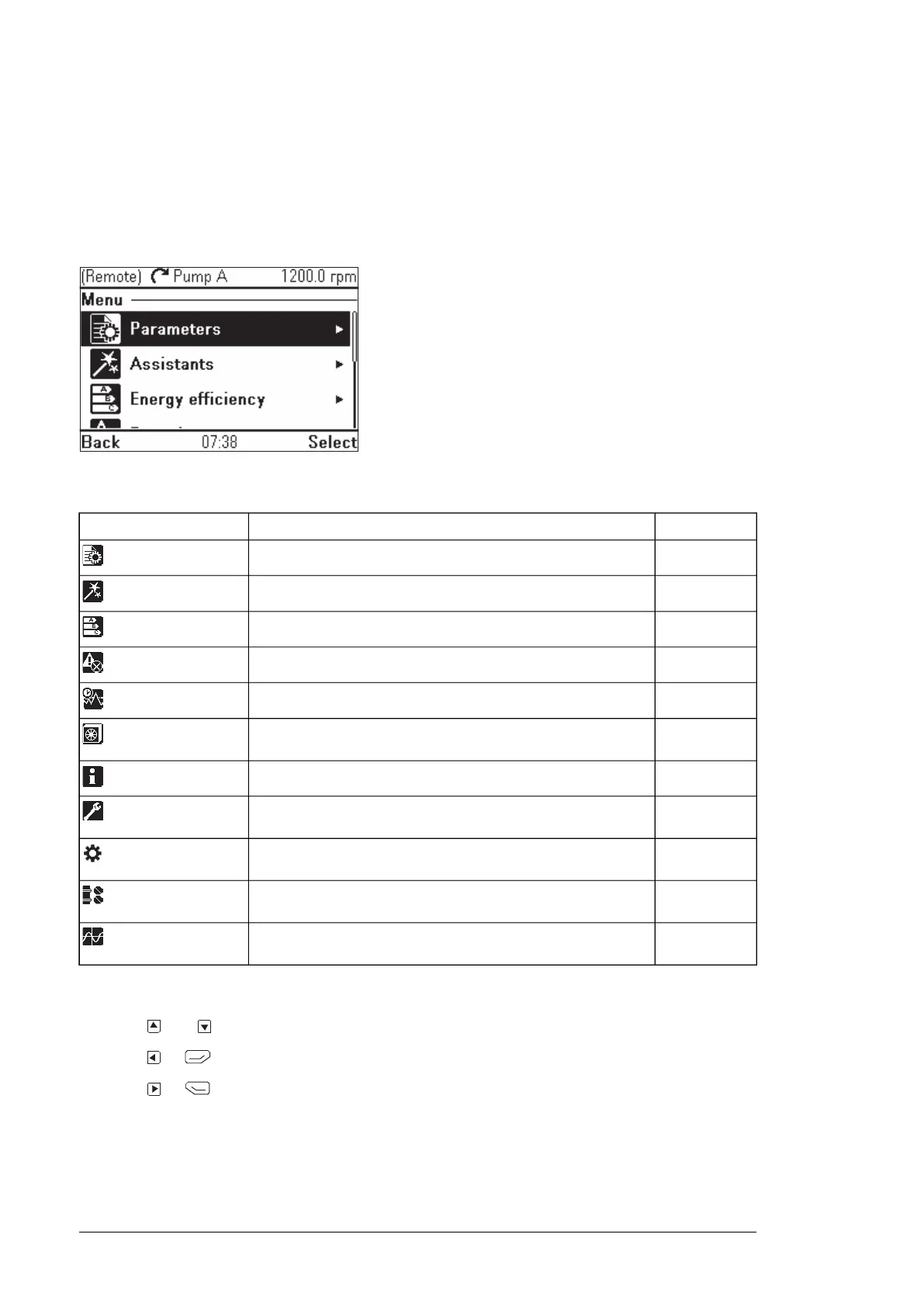

Navigating in the Menu
• Use or to select a menu item.
•Use or (Exit) to go back to the Home view.
•Use
or (Select) to enter the selected sub-menu.
Parameters
In the Parameters menu, you can view and edit
parameters. There are four sub-menus through
which you can access the parameters. In each
sub-menu, the grouping principle of the
parameters is different.
In each sub-menu, you can edit a parameter by
highlighting it and pressing (Edit). Counter
parameters and certain number, text and bit field
parameters are read-only and can be viewed by pressing (View).
Complete list
In the Complete list sub-menu, all parameter
groups are listed in numerical order. If you select a
parameter group, all parameters in that group are
listed and you can view and edit the parameters.
Parameter numbers are always displayed in this
sub-menu.
By function
This functionality is available in a future release.
Primary settings View and change settings related to motor, PID, fieldbus,
advanced functions, clock, region, and display.
45
I/O Provides terminal name, number, electrical status and
logical meaning of the drive.
46
Diagnostics Provides faults and warnings information and helps to
resolve potential problems.
46
Sub-menu Function See page...
