For bit field parameters, you can select either a single bit or the full bit field to add
to the Home view. With individual bits, the bit state is displayed. Full bit fields are
shown in either hexadecimal or binary format.
Note: If Empty is selected, the parameter is removed from the Home view.

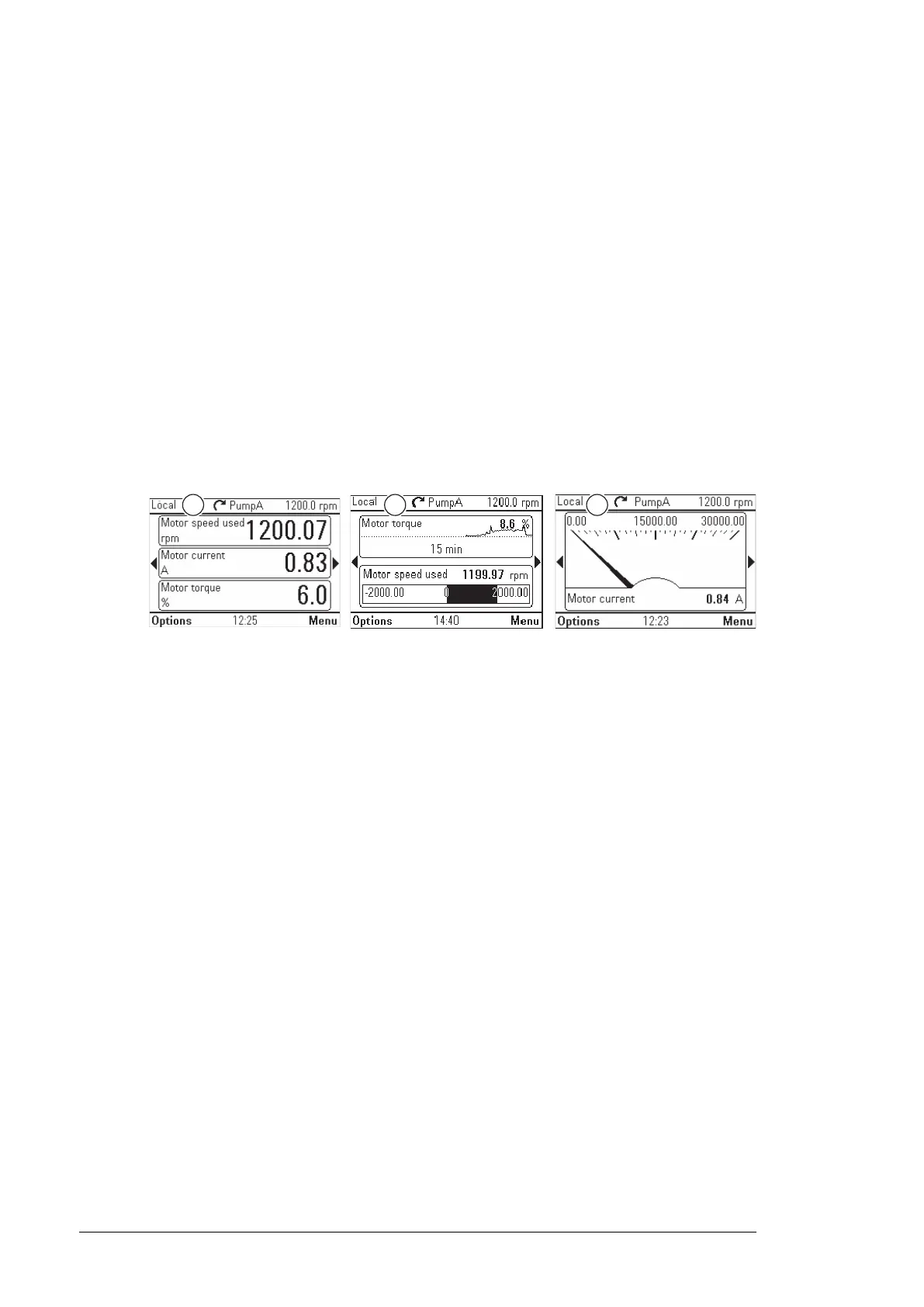

• Display style: Select how the signal values are displayed. It is possible to use
different display types on the same page.
• Numeric: The parameter values are displayed as numbers (see figure 1 below).
If there is only one parameter on the page, a bar graph is also displayed.
• Gauge/bar: When there is one parameter on the page, the parameter value
is shown as a dial gauge (see picture 3 below). When there are two or three
parameters on the same page, the value is displayed as a bar graph (see the
slots in figure 2 below).
• Graph 15 minutes, 30 minutes, 1 hour or 24 hours: The parameter value is
displayed as a graph within the selected time frame (see the bottom slot in
picture 2).
Note: The data shown in the graph is not stored in the drive memory, that is, if you
remove or restart the control panel, the data is lost.
• Display decimals: Specifies how many decimals are shown.
• Display name: Enter a custom label to show in the Home view instead of the
parameter name.
• Min and Max: This function depends whether Scale value range is selected or
not:
• Scale value range not selected: Select the minimum and maximum signal
values that are shown on graph displays.
• Scale value range selected: Select the actual values of the parameter that
correspond to Display min as and Display max as (see below).
• Scale value range: Select if you want to specify the value range.
• Display min as and Display max as: Select the minimum and maximum
values shown in the Home view.
This feature allows application-specific scaling to be applied.
If the parameter value is below the minimum or above the maximum, the text
Off the scale is displayed. In the graph format, small arrows are shown instead
to indicate values off the scale.
Scaling with Display signal min/max as and Signal min/max
56 Functions in the Options menu
