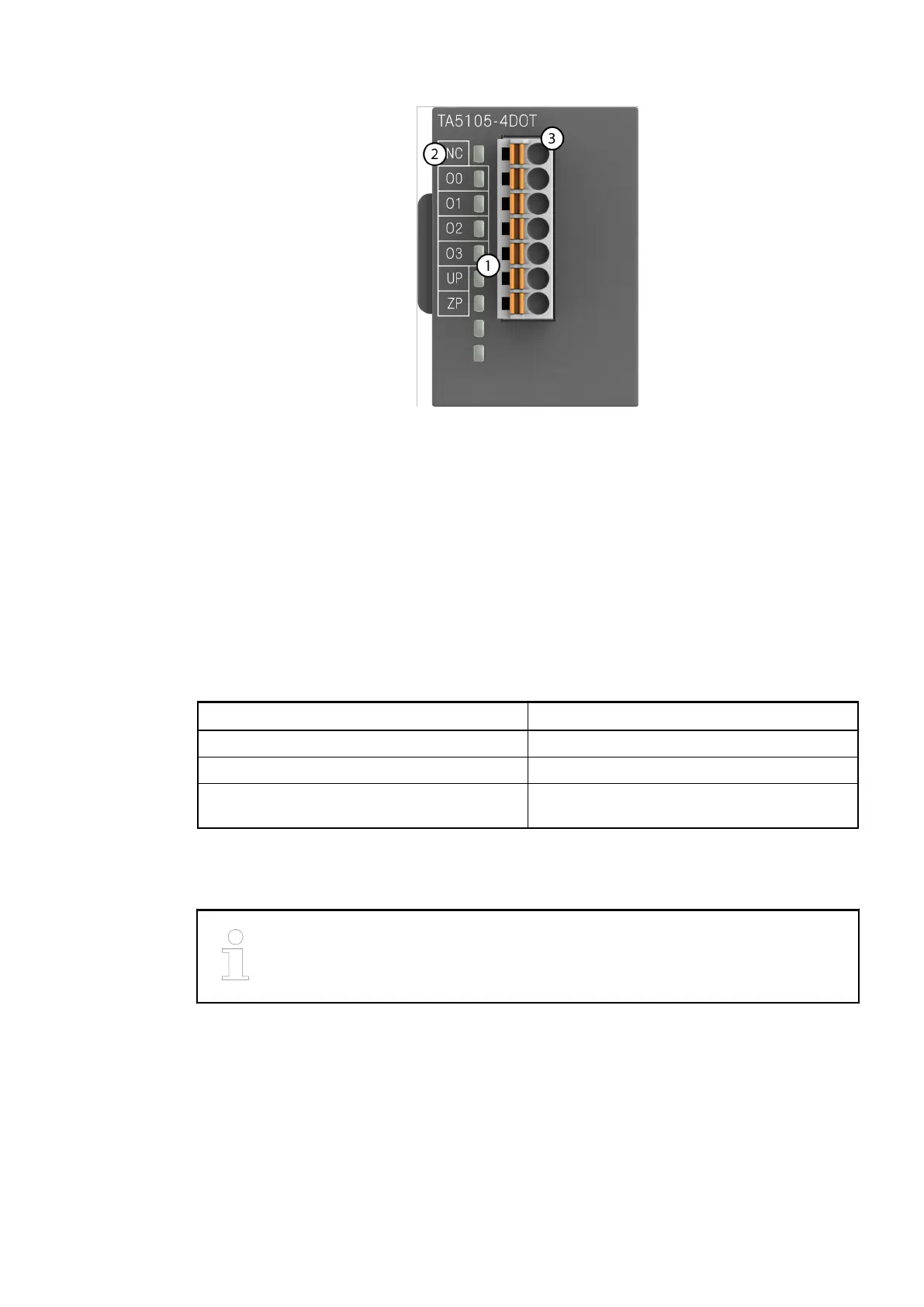

1 4 yellow LEDs to display the signal states of the inputs O0 to O3
2 Allocation of signal name
3 7-pin terminal block for output signals
6.2.2.1 Intended purpose
The device is used as an optional I/O extension module for AC500-eCo V3 CPUs (PM50x2).
The outputs are group-wise electrically isolated from each other.
All other circuitry of the module is electrically isolated from the outputs.
6.2.2.2 Functionality
Parameter Value
LED displays For signal states
Internal power supply Via internal CPU connection
External power supply Via the terminals ZP and UP (process supply
voltage 24 V DC)
6.2.2.3 Electrical connection
For a detailed description of the mounting, disassembly and electrical connec-
tion of the module, please refer to the system assembly chapter.
The electrical connection is carried out by using a removable 7-pin terminal block. For more
information, please refer to the chapter terminal blocks for AC500-eCo V3 system. The terminal
blocks are included in the module's scope of delivery and additional terminal blocks as spare
parts can be ordered separately.
The following block diagram shows the internal construction of the digital outputs:
Option boards > TA5105-4DOT - Digital output module option board
2021/06/293ADR010635, 2, en_US110
