By default, a download generates following actions in the CPU:
The project is stored in the RAM memory.
The project is stored in the flash EEPROM, if boot application was created.
5.4.8 Test the program

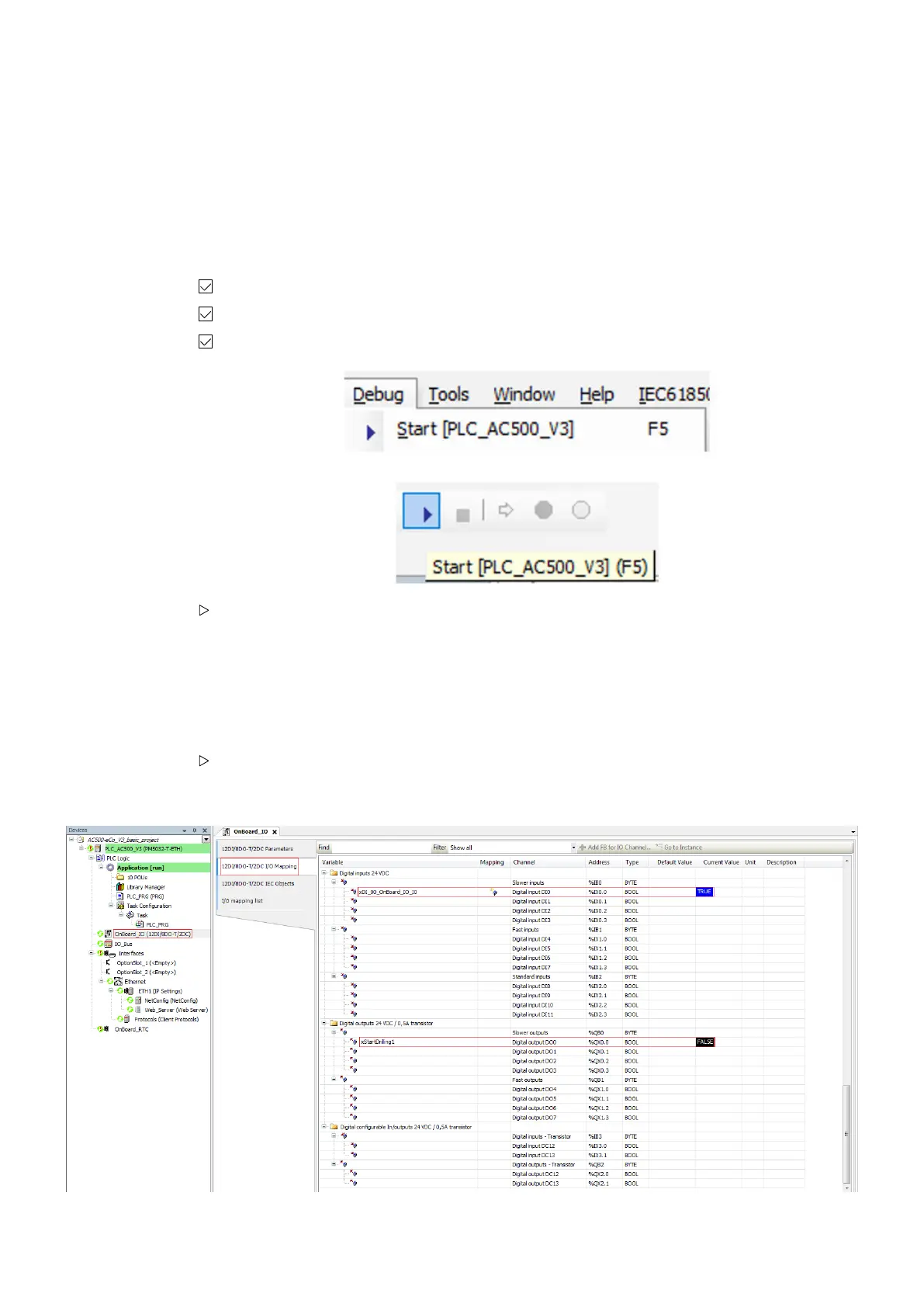

5.4.8.1 Start the program execution
You are logged in the CPU.
An executable project is loaded to the CPU.
The CPU is in "stop" mode.
Select menu “Debug è Start [PLC_AC500_V3]”.
Alternatively, select the "start" icon in the tool bar.
Alternatively, press [F5].
5.4.8.2 Test the function
Operate the switch I1 and observe:
The LEDs of the relevant onboard I/O inputs and outputs.
The online status of inputs and outputs within the POU.
Getting Started
Example project > Test the program
