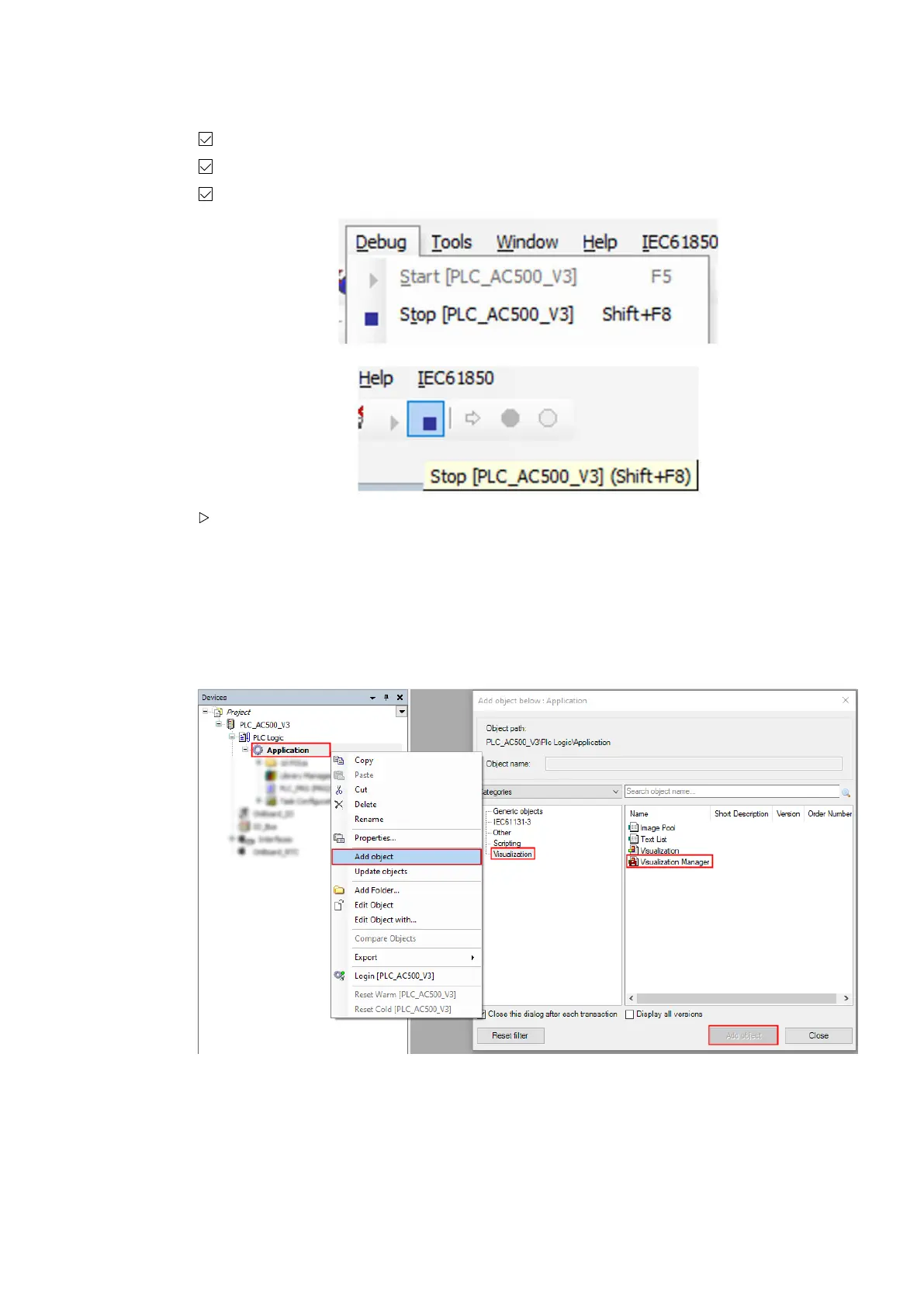

5.4.8.3 Stop the program execution
You are logged in the CPU.
An executable project is loaded to the CPU.
The CPU is in "run" mode.
Select menu “Debug è Stop [PLC_AC500_V3]”
Alternatively, select the "stop” icon in the tool bar.
Alternatively, press [Shift] + [F8].
5.4.9 Set-up visualization
5.4.9.1 Add the VisualizationManager
1. Right-click “Application” in the device tree.
2. Select “Add object”.
3. Select “VisualizationManager”.
4. Select “Add object” to add the VisualizationManager to the project.
ð
Dialog “Add Visualization Manager” opens.
Getting Started
Example project > Set-up visualization
2021/06/293ADR010635, 2, en_US46
