5.3.2 System assembly, construction and connection
NOTICE!
Avoidance of electrostatic charging
PLC devices and equipment is sensitive to electrostatic discharge, which can
cause internal damage and affect normal operation. Observe the following rules
when handling the system:
Touch a grounded object to discharge potential static.
Wear an approved grounding wrist strap.
Do not touch connectors or pins on component boards.
Do not touch circuit components inside the equipment.
If available, use a static-safe workstation.
When not in use, store the equipment in appropriate static-safe packaging.
You can mount AC500 PLC either to DIN rail or to a metal plate. Here, we recommend to mount
on DIN rail.
1. Snap the terminal base onto DIN rail.
2. If needed, remove option covers from the CPU and insert option boards.
3. If needed, snap the additional I/O modules onto DIN rail and slide them on the rail to
establish the I/O bus connection.

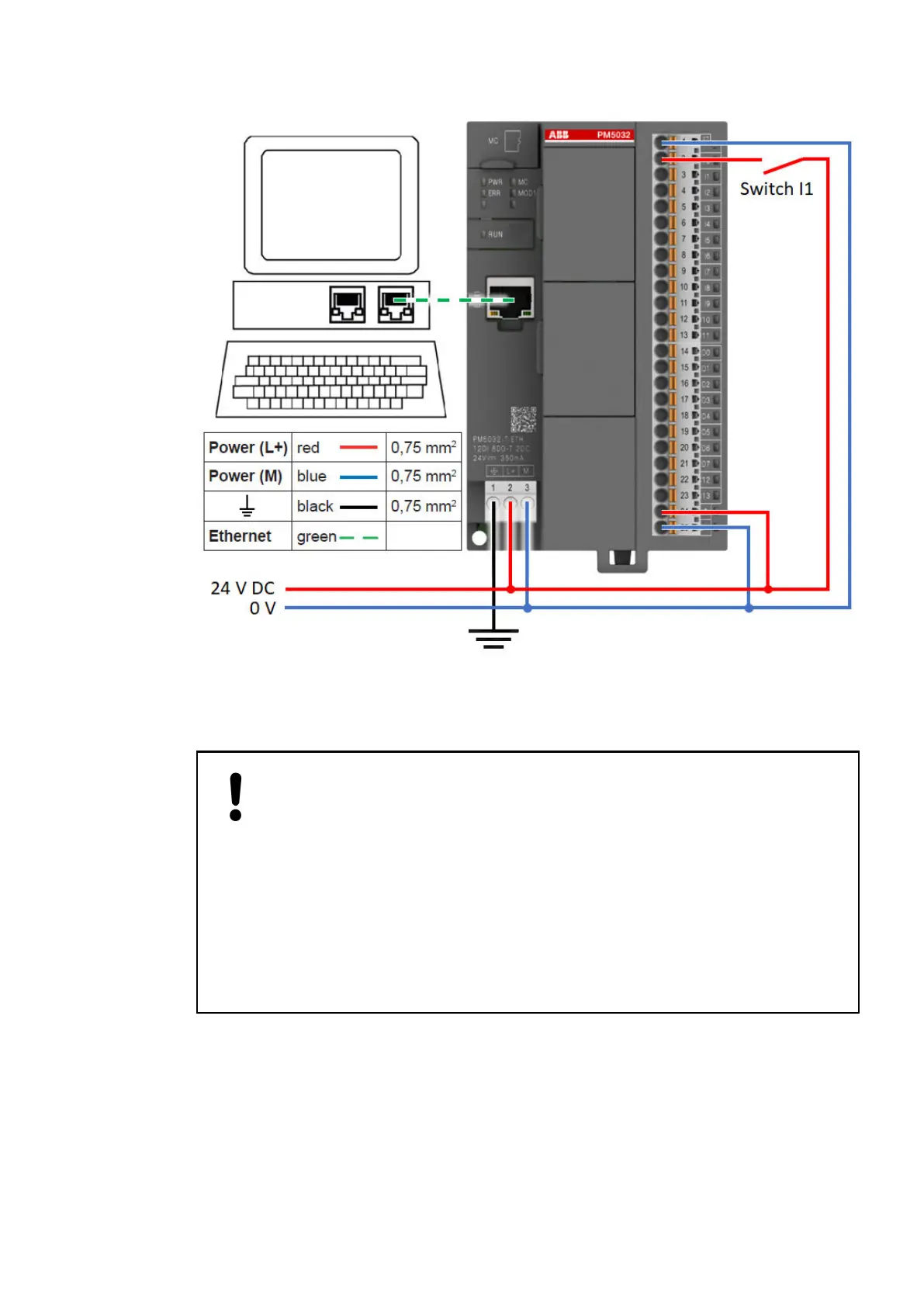

Electrical con-
nection
Getting Started
Hardware AC500-eCo V3 > System assembly, construction and connection
2021/06/29 3ADR010635, 2, en_US 21
