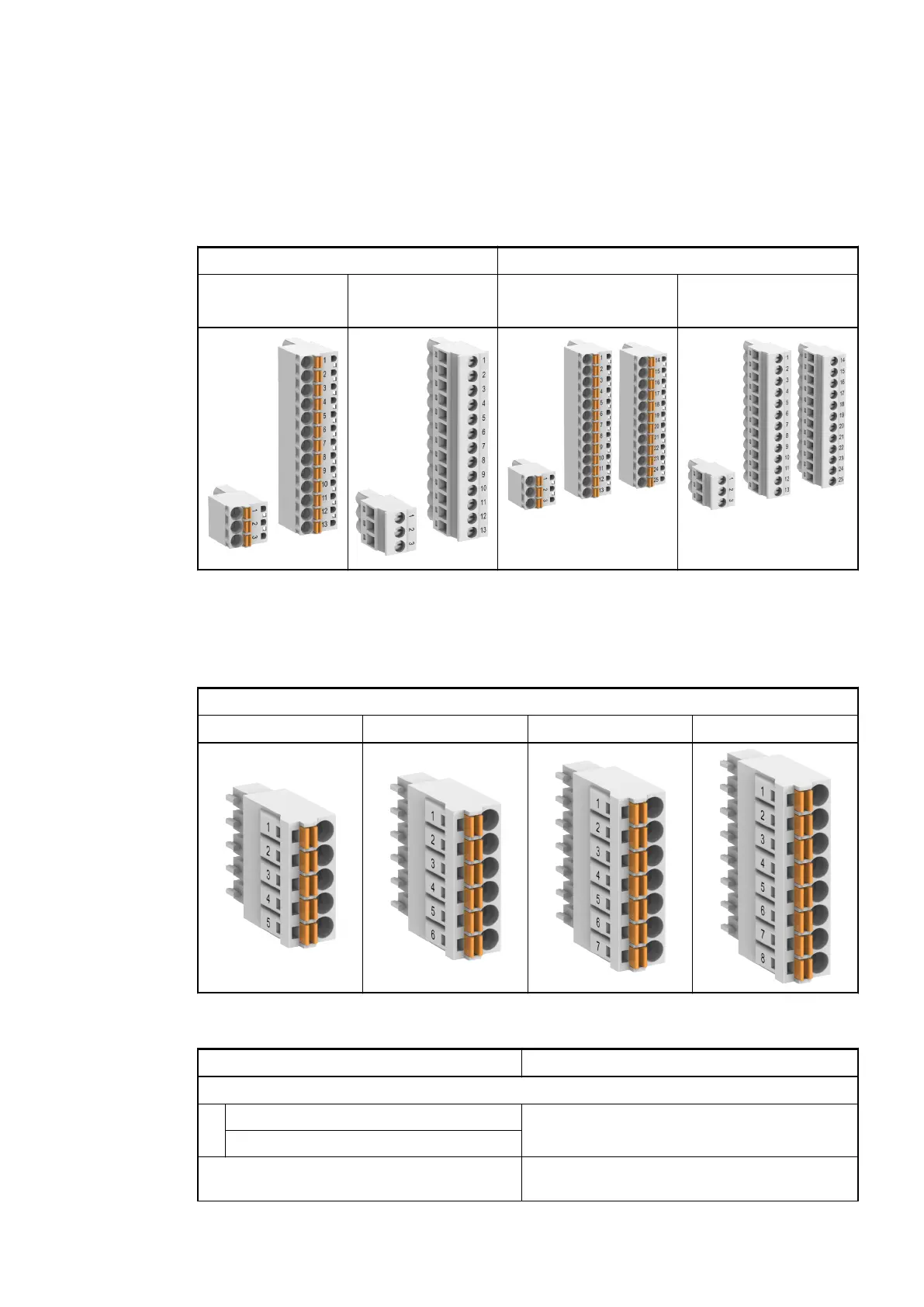

For the AC500-eCo V3 basic CPU a 3-pin terminal block for power supply and a 13-pin terminal
block for I/O connectors are used.
For the AC500-eCo V3 standard and pro CPUs a 3-pin terminal block for power supply, a 13-
pin terminal block and a 12-pin terminal block for I/O connectors are used.
For all CPUs there is a screw type and a spring type version available.
Basic CPU Standard and pro CPUs
Spring type
TA5211-TSPF-B
Screw type
TA5211-TSCL-B
Spring type
TA5212-TSPF
Screw type
TA5212-TSCL
For option boards there are different removable terminal blocks in spring version available.
The following spare parts are available (depending on the number of pins).
Spring type
TA5220-SPF5 TA5220-SPF6 TA5220-SPF7 TA5220-SPF8
Table 26: Screw type terminal block for power supply
Parameter Value
Type
TA5211-TSCL-B Removable 3-pin terminal block:
screw front/cable side 5.00 mm pitch
TA5212-TSCL
Usage Power supply for AC500-eCo V3 processor
modules
Technical data
Accessories > Pluggable connectors for screw and spring connection
2021/06/293ADR010635, 2, en_US150
