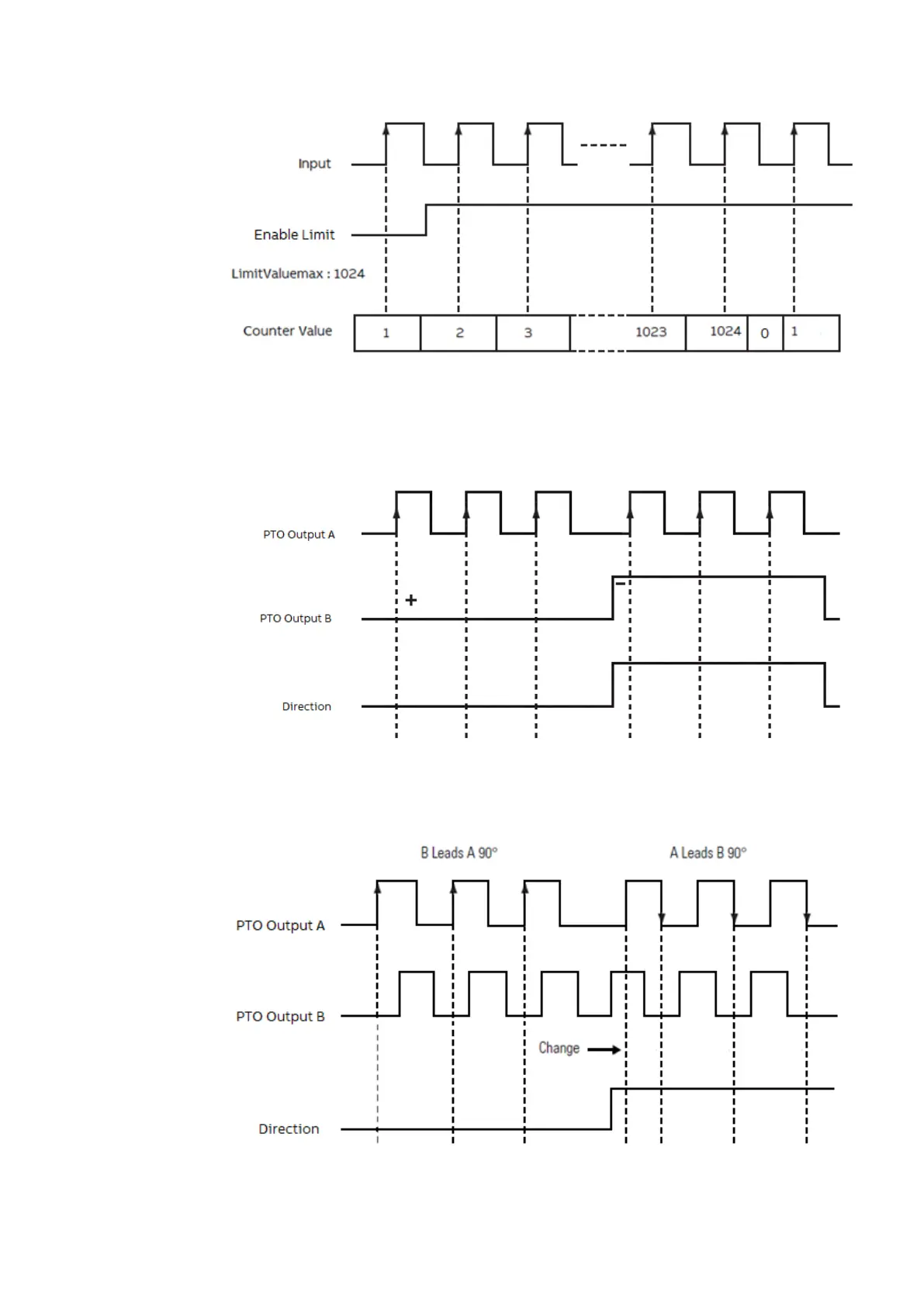

If the input “CwCCw” of the “OBIOPulseTrainOutput” is set to FALSE, the PTO output channel B
is toggled based on the direction.
If the input “CwCCw” of the “OBIOPulseTrainOutput” is set to TRUE. The PTO output channel A
will lead by 90° or PTO output channel B will lead by 90° depending on direction.
System technology > Use the onboard I/Os as PTO (pulse-train output) with 100 kHz frequency (max. 2 PTO using PTO HW channels)
2021/06/29 3ADR010635, 2, en_US 183
