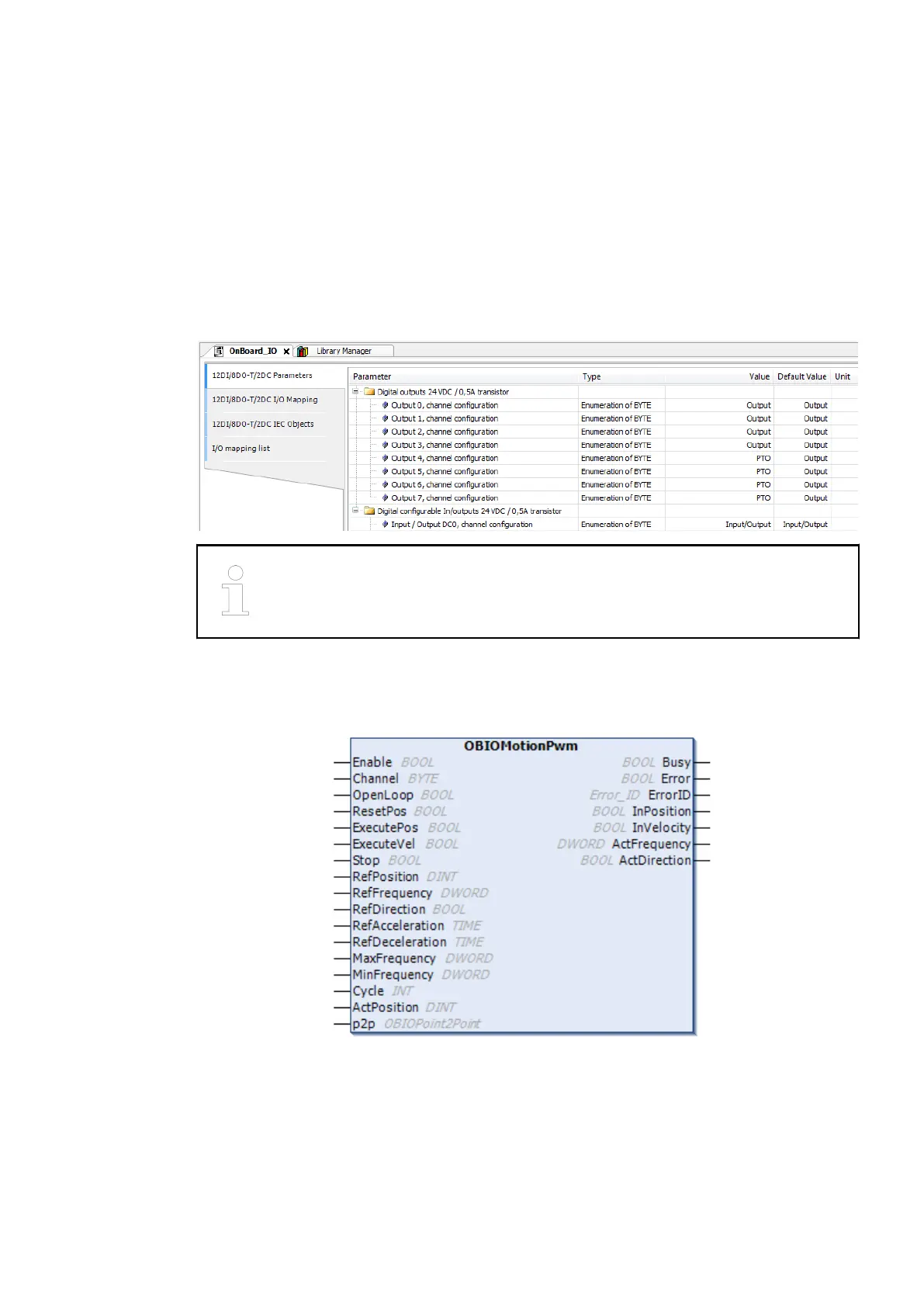

The user must configure the following output channels as PWM outputs and use the
“OBIOMotionPWM” function block.
● “PWM”: Output channel 4
● “PWM”: Output channel 5
● “PWM”: Output channel 6
● “PWM”: Output channel 7
If the user configures the output 4...7 as PWM using the “OBIOMotionPWM” function block, up
to four Software PTO can be realized offering then only the Pulse/Direction mode.
The Pulse output will always use the fast output channels O4…O7 and the direction output of
the function block can be assigned to any other output e.g. O0…O3 or also outputs from a S500
I/O module.
See also the following chapter:
8.3.7.2 Function block
System technology > Use the onboard I/Os as PTO (pulse-train output) with 100 kHz frequency (Max. 4 PTO using PWM HW channels) and
Simple Motion OBIOMotionPWM function bloc
2021/06/293ADR010635, 2, en_US186
